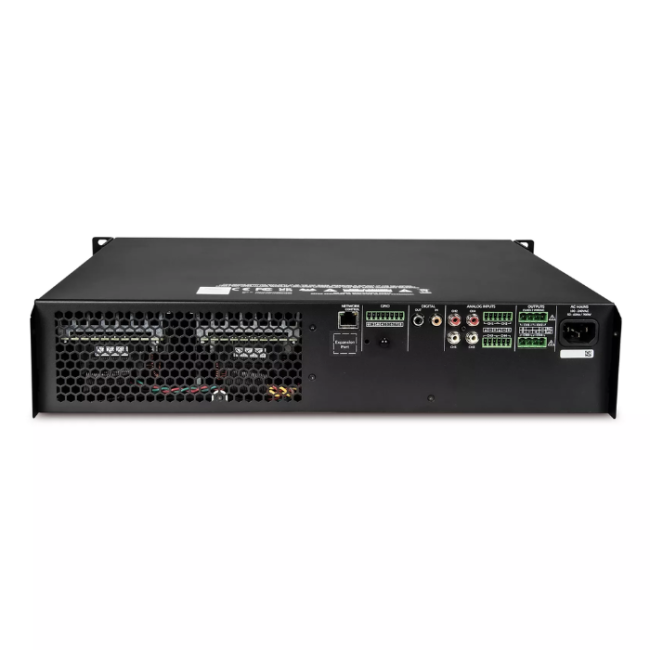

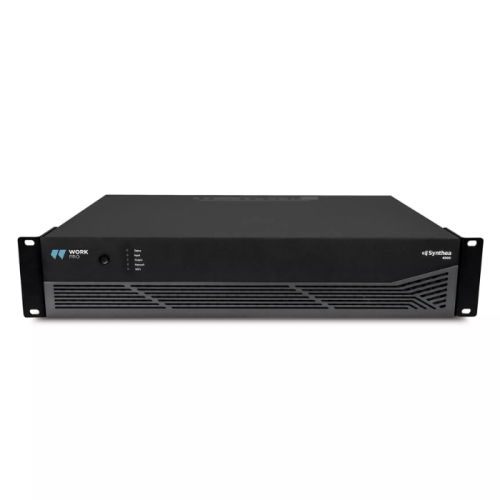

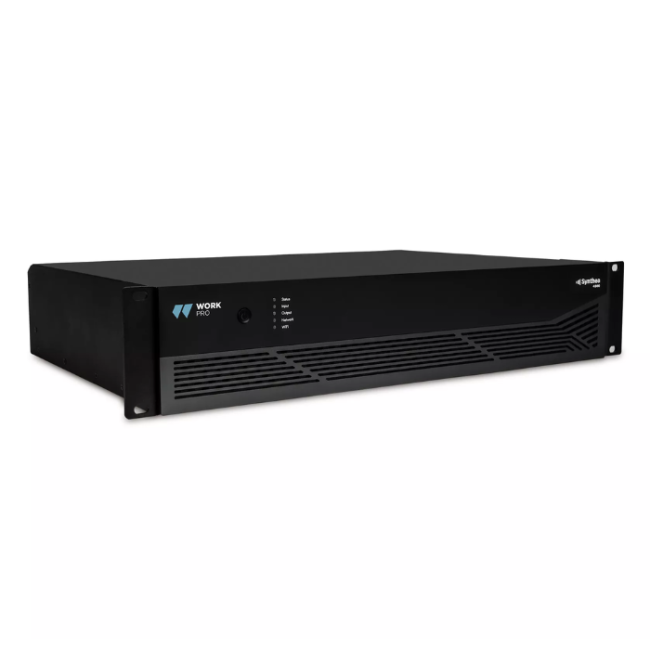

WorkPro Synthea 4500 4x500W DSP Installation Amplifier - Black
only 1 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
WorkPro Synthea 4500 (51SYN004): 4x500W@4Ω / 2x1000W@100V DSP amplifier, matrix mixing, parametric EQ, WiFi/web control, S/PDIF daisy-chain capability.
Model :51SYN004
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for WorkPro Synthea 4500 4x500W DSP Installation Amplifier - Black
Compact four-channel 4 ohm installation amplifier (up to 500W per channel) or 1000W on each of the two 100V/Bridge@8 Ohm line output. Digital signal input and output for easy interconnection without conversions. Dedicated DSP with full connectivity and control via stand-alone Wi-Fi. Ethernet and GPIO
Main information
- 4x500W @ 4Ohm, 2x1000W @ 4Ohm Bridge, 2x1000W (100V/Bridge@8 Ohm)

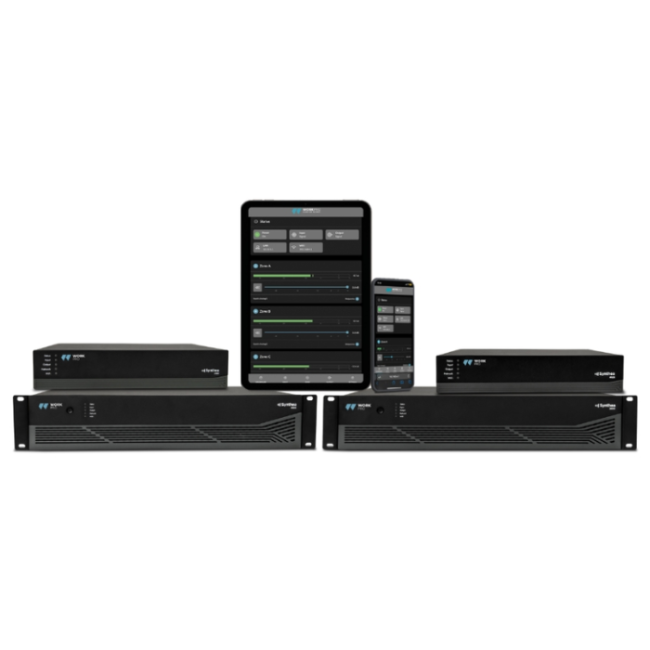

- Control from it´s own WAP Access Point without the need for software downloads
- Internal DSP matrix with 4 mono or 2 stereo inputs, 2 or 4 zone output and S/PDIF link to connect to other amplifiers
- Class D amplifier
| Category | Specification | Details |
|---|---|---|
| Amplifier | Channels | 4 LoZ / 2 HiZ |
| Low Impedance Power | 4 x 500W @ 4Ω / 4 x 400W @ 8Ω | |
| 100V/Bridge Power | 2 x 1000W (100V/Bridge @ 8Ω) | |
| Frequency Response | 20 Hz - 20 kHz | |
| S/N Ratio | >106 dB | |
| DSP | Crossover Types | Butterworth, Bessel, Linkwitz-Riley |
| Equalization | 10-band Parametric, LPF, HPF, BPF | |
| Inputs/Outputs | Audio Inputs | 4 x Euroblock (balanced) or 4 x RCA (unbalanced), 1 x S/PDIF (RCA) |
| Connections | Euroblock/RCA inputs, Euroblock speaker/GPIO outputs, RJ45, S/PDIF in/out | |
| Physical | Dimensions (W x H x D) | 483 x 88 x 319 mm |
| Weight | 3.4 kg | |
| Power Supply | AC 100/240V, 50/60 Hz, 75W |
