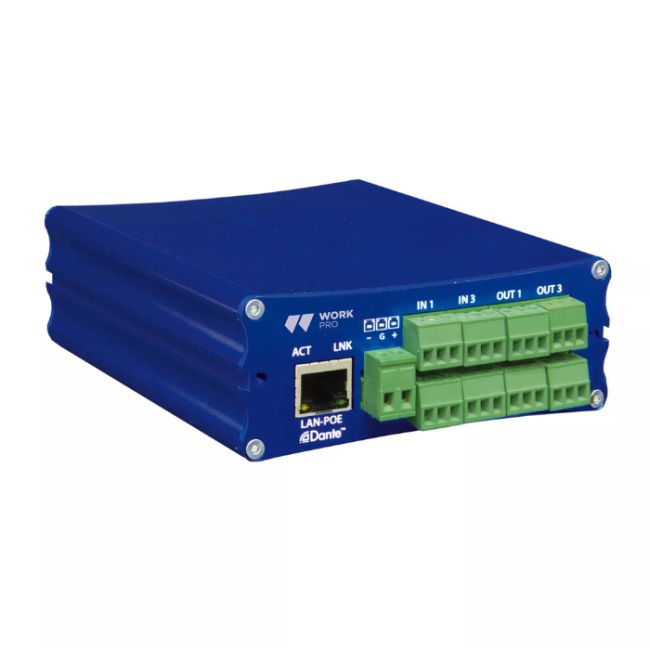

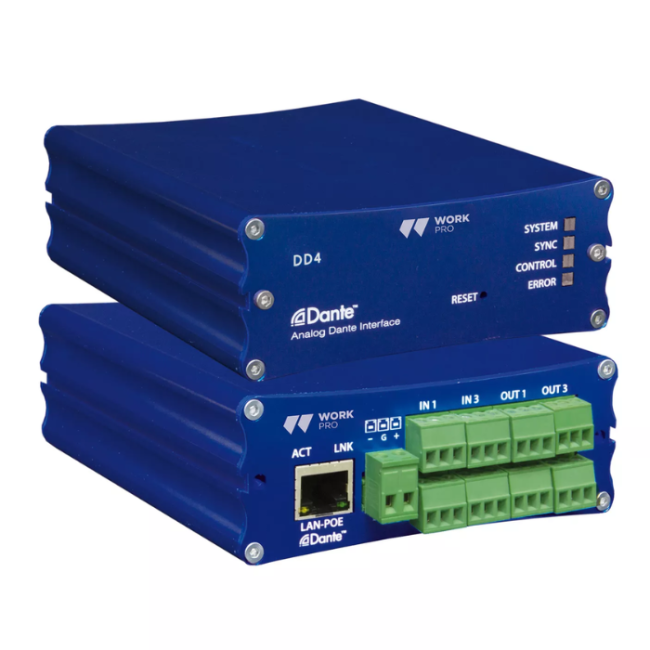

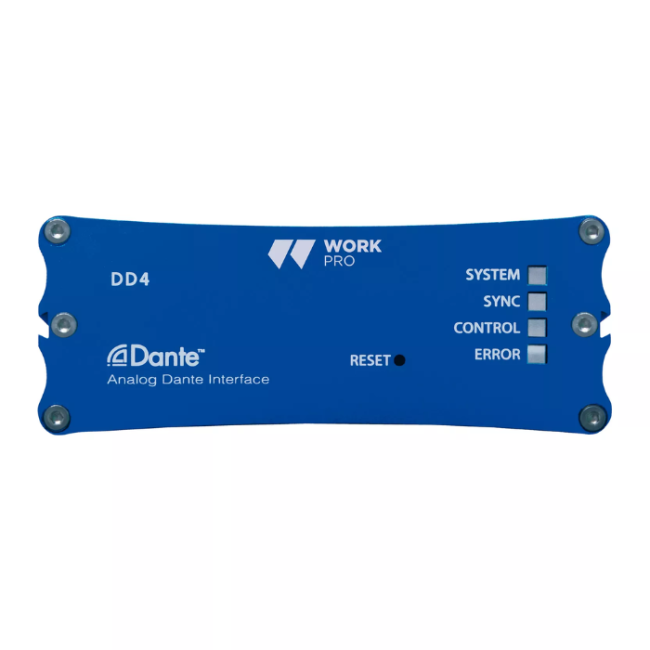

WorkPro DD4 Dante 4x4 Audio Converter - Black
only 2 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
WorkPro DD4 Dante audio converter for BlueLine AoIP systems: bidirectional 4-in/4-out analog-Dante interface with balanced Euroblock connectors, supports up to 96kHz sampling (2x2 mode), ultra-low latency (1ms), PoE or external 24Vdc power, rugged aluminu
Model :82MEG425
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for WorkPro DD4 Dante 4x4 Audio Converter - Black
DD4 devices are gateways used to convert DANTETM (Digital Audio Network Through Ethernet - developed by AUDINATE) protocol. These devices allow the extraction of analog audio signals from the DANTETM network as well as the introduction of analog channels within the same network.
DD4 is a device designed for use in installation, for which the analog inputs and outputs are made through Euroblock 3.5mm connectors.
It has balanced inputs and outputs to provide greater immunity to noise that interferes with audio signal lines.
| Category | Specification | Details |
|---|---|---|
| Audio | Input Channels | 4 balanced |
| Output Channels | 4 servo-balanced | |
| Input Sensitivity | 22 dBu | |
| Maximum Output Level | 22 dBu | |
| THD+N | < 0.01% | |
| S/N Ratio | > 100 dB | |
| Crosstalk | < -80 dB (20 kHz) | |
| Frequency Response | 20 Hz - 20 kHz | |
| Latency | 1 ms (standard) | |
| Digital | Sampling Frequency | 44.1/48/88.2/96 kHz (96kHz 2x2 mode, 48kHz 4x4) |
| Bit Depth | 16/24/32 bit | |
| Connections | Ethernet | 100BASE-TX & PoE |
| Audio | 8 x Euroblock 3-pin | |
| Power | Supply | External 24 Vdc or PoE Class 0 (802.3af) |
| Consumption | 2.4 W | |
| Physical | Material | Aluminum housing |
| Dimensions (H x W x D) | 40.45 x 109 x 133.75 mm | |
| Weight | 355 g |
