RCF PL 8X Coaxial Ceiling Speaker 20 W 70/100 V – White
SAR 344.89
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
The RCF PL 8X Coaxial Ceiling Speaker delivers 20W RMS for 70/100V systems with 20/10/5/2.5W taps, 60 Hz–20 kHz, 109 dB SPL, IP44 rating, and 8"/1" coaxial drivers in white RAL 9003 plastic/aluminum design.
Model :13133043
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for RCF PL 8X Coaxial Ceiling Speaker 20 W 70/100 V – White

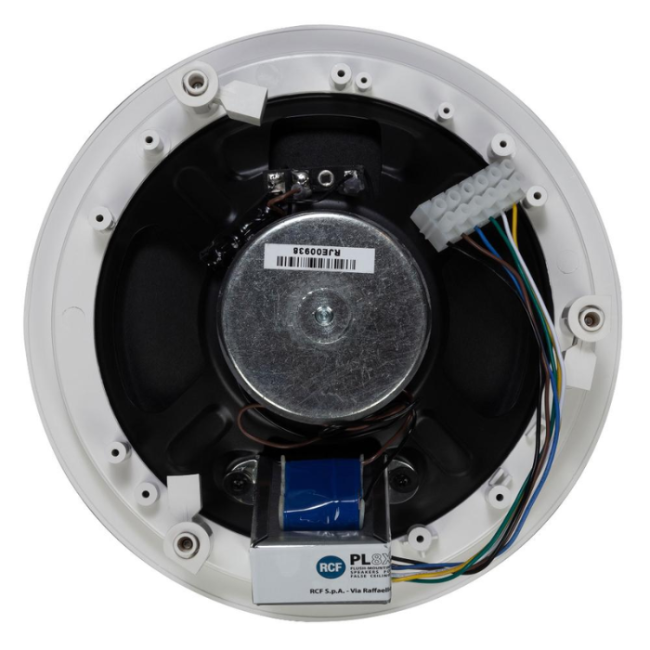

PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features
- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
- 93 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
Category Specification Details Acoustical Specifications Frequency Response (-10 dB) 60 Hz – 20 kHz Max SPL @ 1 m 109 dB Coverage Angle 80° System Sensitivity 93 dB Power Section Amplification Full Range Power Handling 20 W RMS Peak Power Handling 80 W Peak Transducers Dome Tweeter 1.0'' Woofer 8'' Input/Output Section Input Connectors Screw Terminals Output Connectors Screw Terminals Constant Voltage Transformer 70/100 V Power Selection 1 20 W – 500 Ω Power Selection 2 10 W – 1000 Ω Power Selection 3 5 W – 2000 Ω Power Selection 4 2.5 W – 4000 Ω Standard Compliance IP Protection Grade IP 44 Safety Agency CE compliant Physical Specifications Cabinet Material Plastic Grille Aluminium Color White - RAL 9003 Size / Weight Depth 88 mm / 3.46 in Recessed Depth 80 mm / 3.15 in Diameter 247 mm / 9.72 in Cut Out Diameter 224 mm / 8.82 in Weight 1.23 kg / 2.71 lbs Shipping Information Package Height 280 mm / 11.02 in Package Width 280 mm / 11.02 in Package Depth 130 mm / 5.12 in Package Weight 2.09 kg / 4.61 lbs
