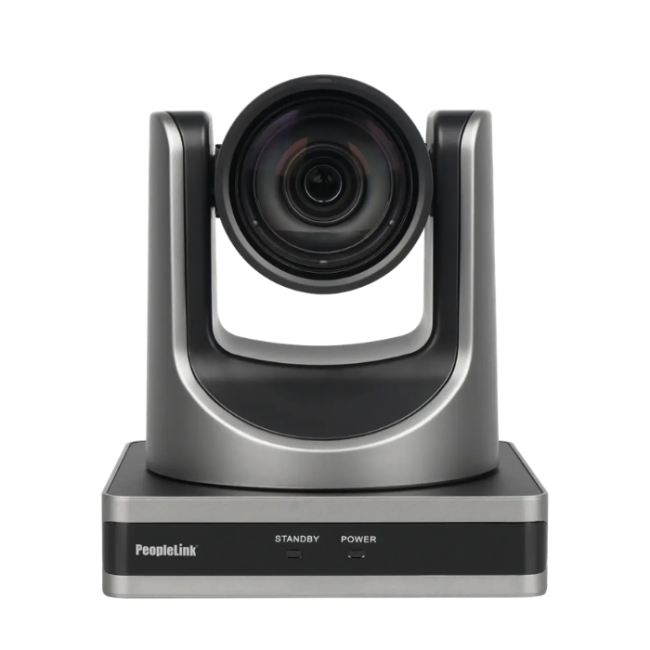

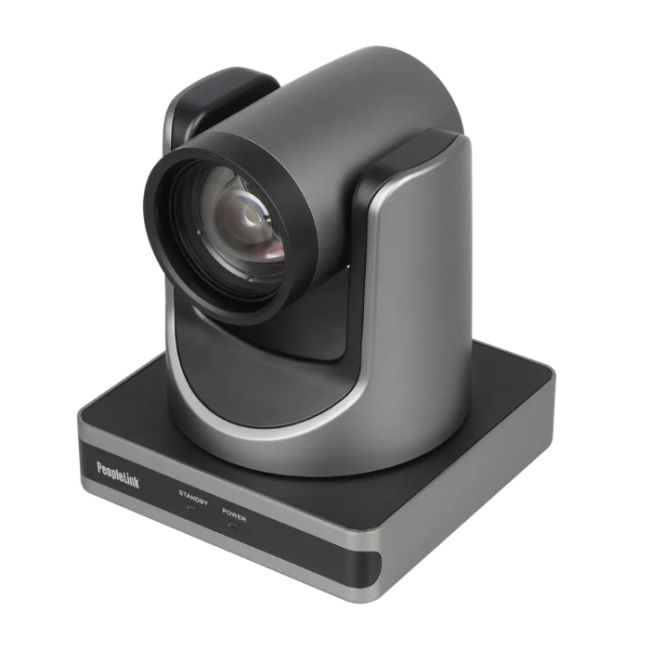

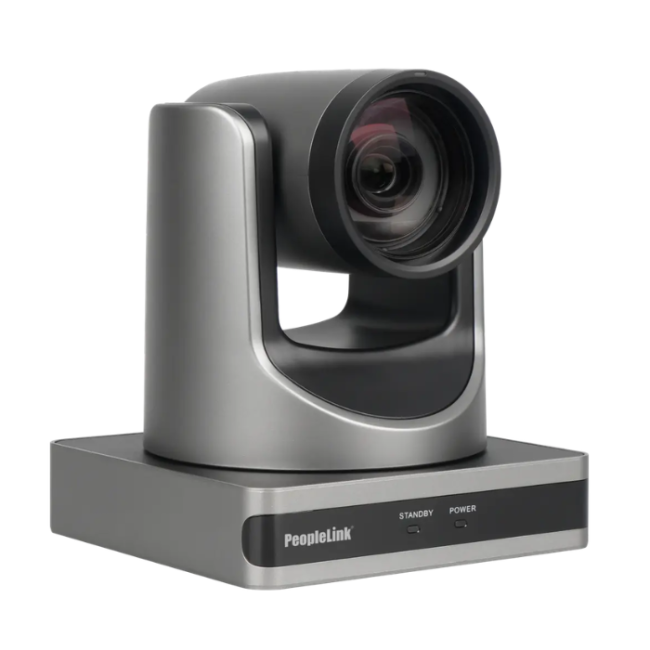

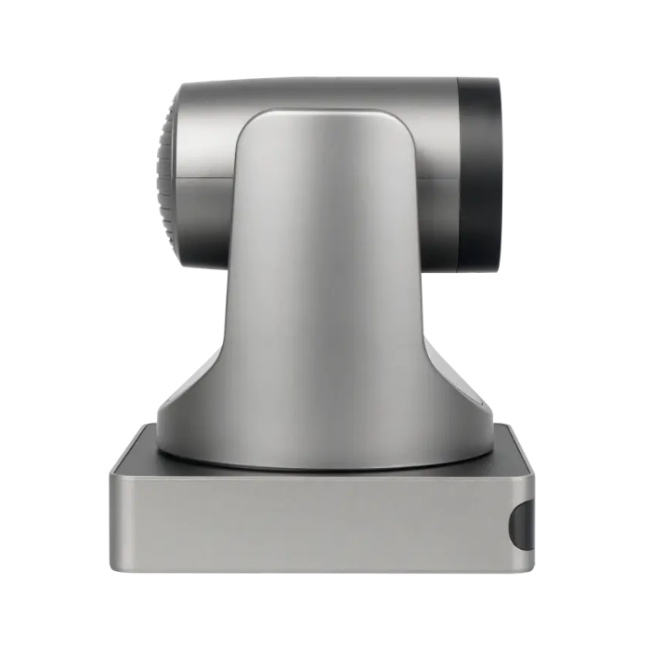

PeopleLink Elite 4K Premium 12X PTZ Camera
PeopleLink Elite 4K 12X Black: UHD PTZ with 0.5Lux low-light performance, 2D/3D noise reduction (≥55dB SNR), 255 presets (0.1° accuracy), VISCA/Pelco control, dual-stream video output.
Model :PPU-PVC-EPS-12X-16DX
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for PeopleLink Elite 4K Premium 12X PTZ Camera
This 12x Optical Zoom Camera, equipped with a 1/2.5" CMOS sensor and 8.51 megapixels, delivers 4K UHD resolution at 2160P30 with a wide 78° diagonal field of view. It supports advanced features like digital noise reduction, image flip, and precise PTZ control with 255 preset positions. The camera's integration capabilities include H.264/MJPEG video compression, multiple streaming protocols, PoE, HDMI, and USB connectivity. Its versatile use case spans conference rooms, educational settings, and live streaming applications. With excellent low-light performance, scalable pricing, and flexible configuration options, it is a comprehensive solution for modern video needs.
Features
- Digital Zoom: Captures detailed images even at long distances, ideal for large conference rooms or lecture halls.
- 4K UHD Video Output: Supports up to 2160P30 resolution, delivering crisp and clear visuals aligned with the trend for high-definition presentations.
- Wide 78° Field of View: Ensures better room coverage, reducing the need for multiple cameras.
- Advanced Video Compression: Utilizes H.264 and MJPEG to ensure seamless streaming even with varying network conditions.
- Multi-Protocol Support (NDI, RTSP, Onvif): Enables flexible integration into various video systems, addressing recent demands for compatibility and interoperability in professional setups
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| Sensor | Type | 1/2.5" CMOS, 8.51 Megapixels |
| Signal System | 4K@30fps, 4K@25fps, 1080P@30/25fps | |
| Minimum Illumination | 0.5Lux (F1.8, AGC ON) | |
| Lens | Optical Zoom | 12x |
| Digital Zoom | 16x | |
| Focal Length | f=4.4-52.8mm, F1.8-F2.6 | |
| FOV | H:71°~8.2°, V:42.7°~4.5° | |
| PTZ | Pan Angle | ±170° |
| Tilt Angle | -30° ~ +90° | |
| Pan Speed | 2.7° ~ 35.7°/s | |
| Tilt Speed | 2.7° ~ 31.5°/s | |
| Presets | 255 (0.1° accuracy) | |
| Image | Features | AF, Auto/Manual WB, BLC, 2D/3D NR, ≥55dB SNR |
| Video | Compression | H.264, MJPEG, YUY2 |
| Streams | Dual (First:4K, Second:1080P) | |
| Protocols | NDI | |
| Audio | Compression | AAC (96/128/256Kbps) |
| Interface | 3.5mm LINE IN | |
| Interfaces | USB | 1x USB 3.0 Type-C |
| HDMI | 1x HDMI 1.4b | |
| Network | 1x RJ45 (10/100M, PoE 802.3af) | |
| Control | RS232, RS485 (opt), VISCA/Pelco-D/P | |
| Physical | Power | DC 12V/1A (12W max) |
| Dimensions (WxDxH) | 144 x 144 x 173.4 mm | |
| Weight | 1.41 kg | |
| Environment | Operating Temp | -10°C ~ 40°C |
