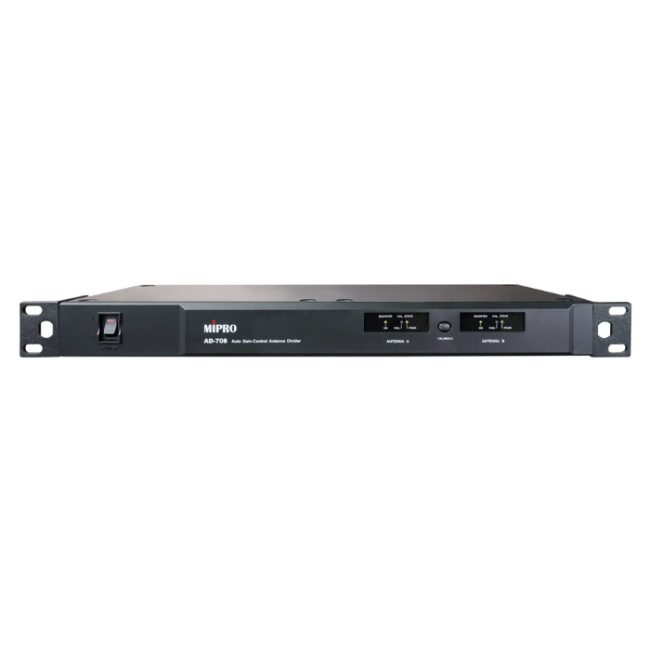

MIPRO AD-708 UHF Wideband 4-Channel Antenna Divider with Auto Gain Controller - Black
only 5 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
MIPRO AD-708: UHF 4-channel active antenna splitter with auto gain control, compensates cable loss, supports MPB-30 boosters, 2 TNC inputs to 8 TNC outputs.
Model :AD-708
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for MIPRO AD-708 UHF Wideband 4-Channel Antenna Divider with Auto Gain Controller - Black
The AD-708 is a UHF 4-channel antenna divider that distributes two antenna inputs to four receivers, streamlining antenna setup and maintaining stable RF performance. It features automatic gain calibration and signal monitoring, and works with antenna boosters in multi-receiver systems.
FEATURES- Supports UHF 470 – 850 MHz frequency range, ideal for multi-channel wireless receiver systems.
- Distributes two antenna signals to up to four receivers and supports daisy-chaining with additional distributors.
- Built-in automatic gain control compensates for coaxial cable signal loss, ensuring stable reception quality.
- Ultra-wideband microstrip design delivers low intermodulation distortion and precise gain compensation to eliminate multi-channel interference.
- Equipped with LED indicators for real-time connection and signal monitoring, and supports long-distance compensation with MPB-30 booster
| Category | Specification | Details |
|---|---|---|
| RF Performance | Frequency Range | UHF 470–850 MHz |
| Gain | 1 dB ± 1 dB | |
| System Impedance | 50 Ω | |
| Loss Compensation | Automatic cable loss detection | |

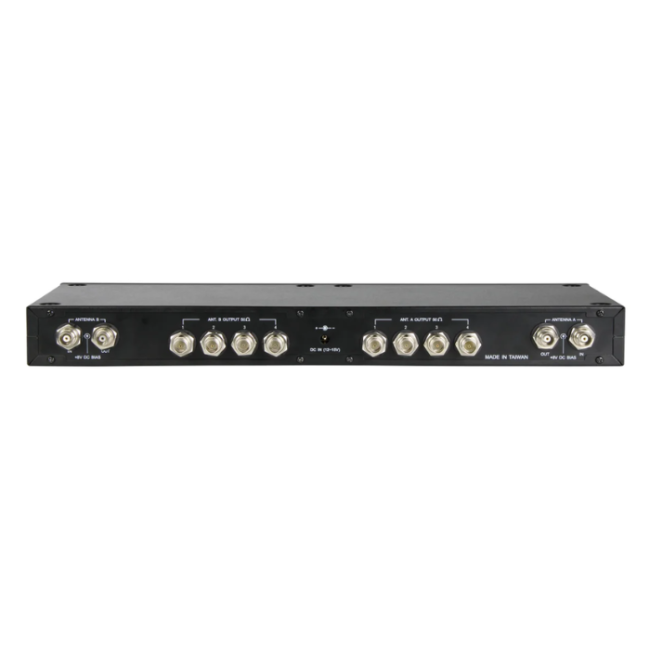

| Connectors | Input | 2 × TNC (with bias voltage) |
| Output | 8 × TNC (output), 2 × TNC (daisy-chain) | |
| Antenna Bias | DC 8.3 V / 230 mA | |
| Power | Supply | DC 12–15 V (AC 100–240 V external) |
| Physical | Dimensions (W × H × D) | 420 × 44 × 164 mm |
| Weight | Approx. 1.5 kg |
