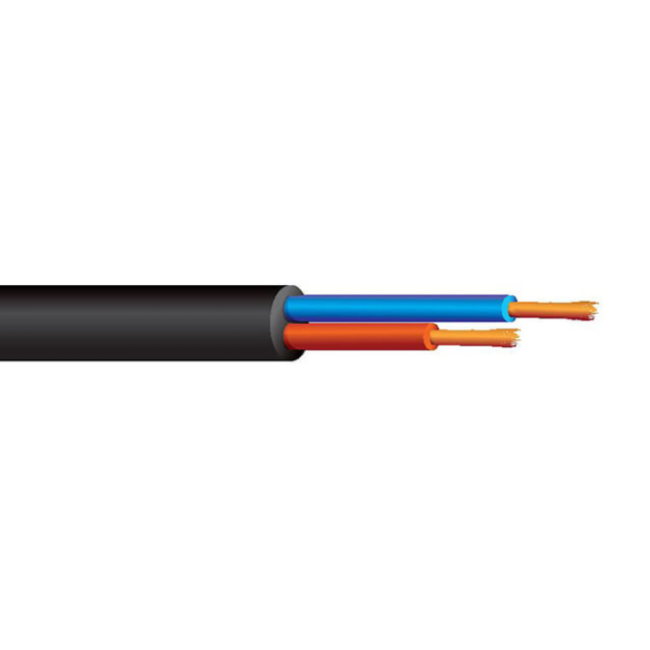

Kelsey SPL 4.0mm 2 Core OFC Touring Speaker Cable - Black
- Condition: New
This item cannot be returned or exchanged
Cash on Delivery available Description for Kelsey SPL 4.0mm 2 Core OFC Touring Speaker Cable - Black
Kelsey SPL is a purpose-built range of professional speaker cables designed for use in the touring, hire and theatre sectors. The high-endurance polymer jacket offers excellent abrasion resistance and impact protection while maintaining the internal core structure without kinks or twists. Core stranding is optimised for flexibility and high- frequency conductivity without compromising reliability or ease of termination. Each oxygen-free stranded copper conductor offers minimal resistance and low capacitance, with individual core jackets colour-coded for fast identification.
Built for optimum handling and electrical performance, SPL is one of the most flexible and easy to rig (even in cold conditions) professional speaker cables on the market
| Category | Specification | Details |
|---|---|---|
| Conductors | Material | Stranded oxygen-free copper (OFC) |
| Size | 56 * 0.30mm (4.0mm²), AWG 12 | |
| Insulation | Material | PVC |
| Diameter | 4.5mm +/-0.05mm | |
| Shore Hardness (A) | 90 +/-3 | |
| Colors | Blue, Red | |
| Outer Jacket | Material | Soft PVC |
| Color | Black, matt finish (RAL 9005) | |
| Overall Diameter | 10.8mm +/-0.20mm | |
| Shore Hardness (A) | 65 +/-3 | |
| Weight | 0.18 kg/metre | |
| Performance | Test Voltage | >2kV at 50Hz (1 min) |
| Insulation Resistance | Min. 20M Ω/km at 20°C | |
| Conductor Resistance | Max. 4.95 Ω/km at 20°C | |
| Operating Temperature | Static: -20°C to +70°C; Operating: -10°C to +70°C | |
| Voltage Rating | Max. 300/500V AC/DC (not for mains) | |
| Packaging | Drum Sizes | 500m, 100m, cut lengths |
| Order Code | KC.SPL-4.0-2 |
