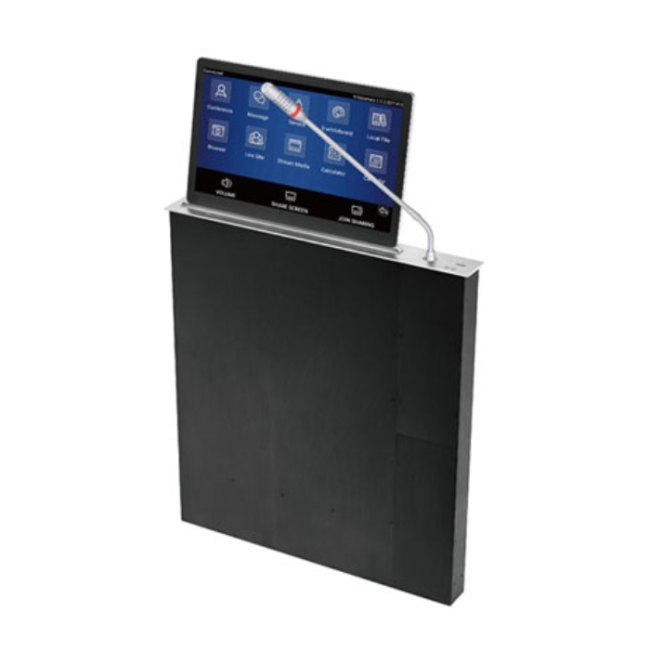

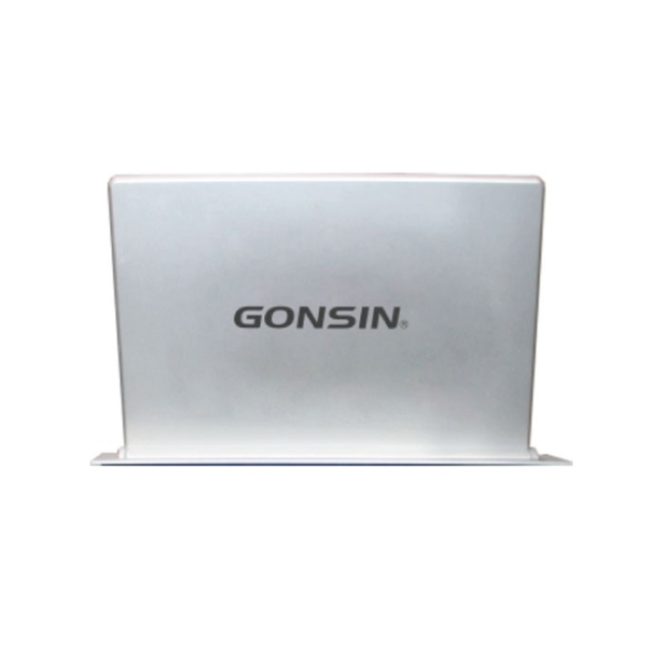

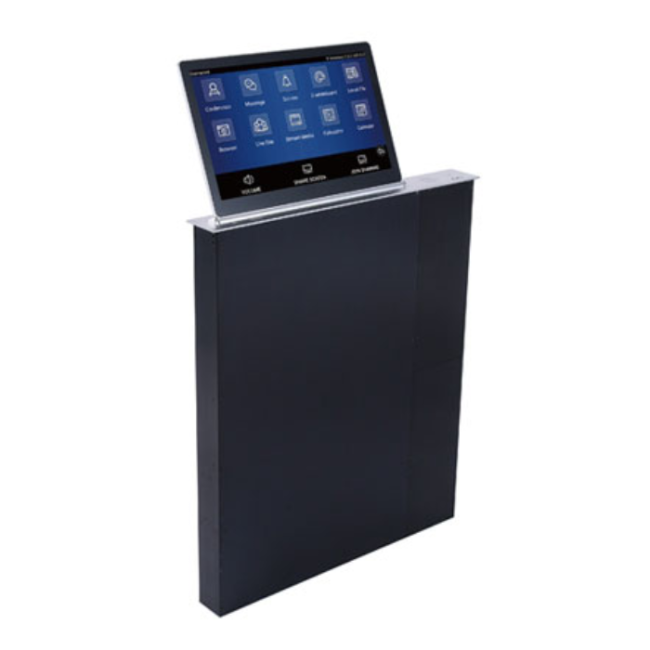

GONSIN GX-LF156DD-X Dual Screen LCD Lifter

Description for GONSIN GX-LF156DD-X Dual Screen LCD Lifter

Lifter Microphone

• Work with chairman/delegate connector;
•

• Auto straightening for mic when lifting down;
•

• Microphone discussion modes: Operator/Auto/ FIFO/ VOX/ Request to speak( with software);
•

• Unlimited number of chairman units or vice chairman units;
•

• In VOX mode, microphones will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out can be adjusted by the server. Besides the chairman unit, 4 delegate unit can be activated at the  same time;
•

• Electret cardioid directional microphone brings better sound quality;
•

• Highly resistant to mobile phone interference
•

• Auto camera tracking with preset panoramic position; SD/HD camera tracking is supported;
•

• Expansion function: can be connected with voting module and simultaneous interpretation module
•

• The system supports auto repairing and hot sweeping;
•

• Co-work with software, speaking time can be managed based on situation

Touch Control LCD Lifter

• Separated lifting design for LCD screen and mic, with panel keys control lifting of both, flexible and easy  to operate; easy to hide and store the equipment;
•

• The front screen is a 15.6/17.3/18.5 inch IPS full-view HD LCD screen(resolution 1920×1080) with 10  points touch; suit for paperless terminal;
•

• Utilize low-speed micro-motor cooperate with high-quality timing belts and high-precision guide rails  and bearings, enabling fast and smooth lifting; wear-resisting design secures long service life;
•

• Low noise design produces low noise during lifting:
•

• The default elevation angle is 15° when the LCD screen is lifted; support continuous adjustment within 0- 30°;
•

• Lifter panels and chassis are made of aluminum alloy with light weight, high strength and exquisite  appearance;
•

• Slim design with narrow bezel, the suitable 16:9 display scale provides superior users viewing experience.
•

• Support 10 points touch, stable and sensitive;
•

• Lifter panel has switches for: Up, Stop, Down, on and off for multimedia conference terminal;
•

• The lifter supports manual control, wireless remote control, RS-232 control, RS-485 control, carrying out  unified control and grouping control for up/down/stop status of lifter
•

• Support reading files from USB flash disk;
•

• With HDMI and VGA interface, signals can be automatically identified, and can be switched by panel keys, when there is no signal input, the screen automatically enters the power-saving mode.
•

• Electronic nameplate: the back screen equips 11.6 inches super bright HD LCD screen( resolution  1366×768);16:9 display ratio for better and higher-quality image display.
•

• Display user's information synchronously, such as user’s name/position or title/organization name/  Logo and etc.; support font/ background/ customized template.
•

• Support personalized customization: the voting module, simultaneous interpretation module, charging module and other modules can be customized. The integrated panel does not affect the appearance of the desktop.
•

• The lifter has a power loop outlet socket, which reduces power wiring and makes the scene more tidy and beautiful
