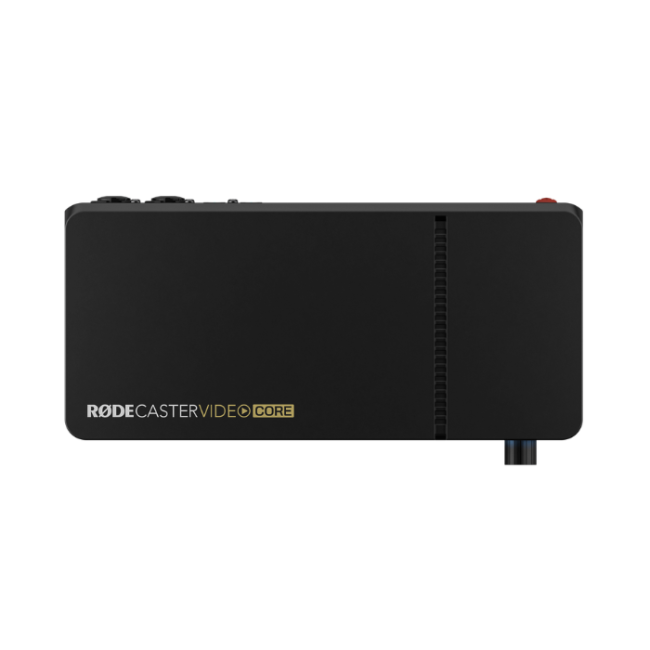

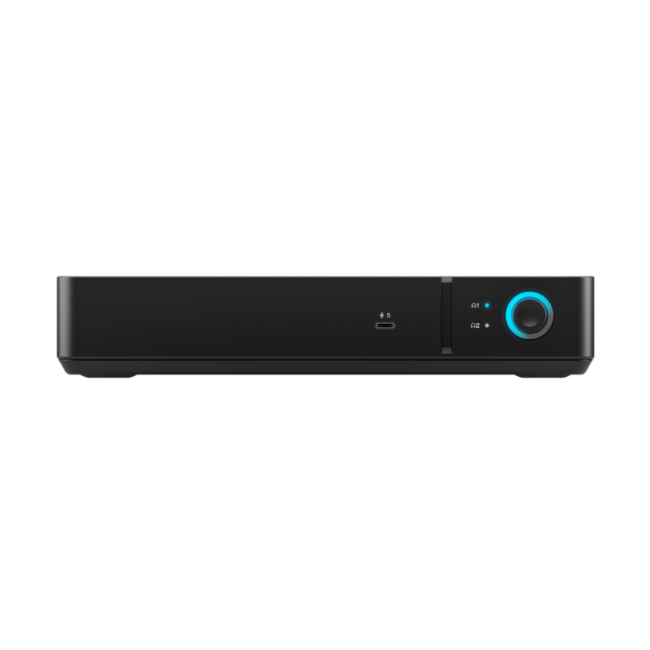

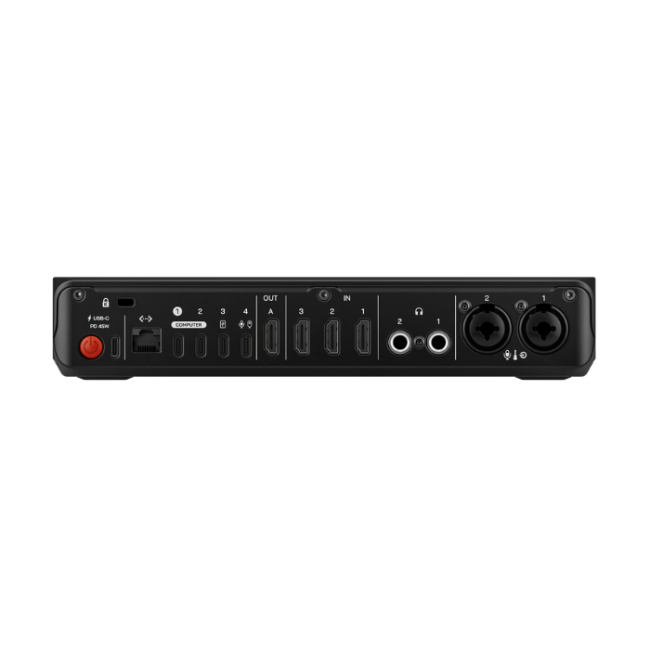

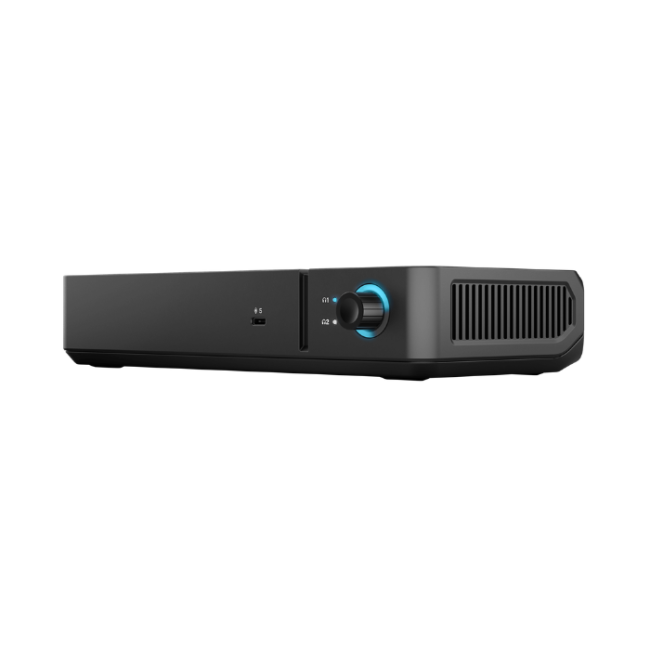

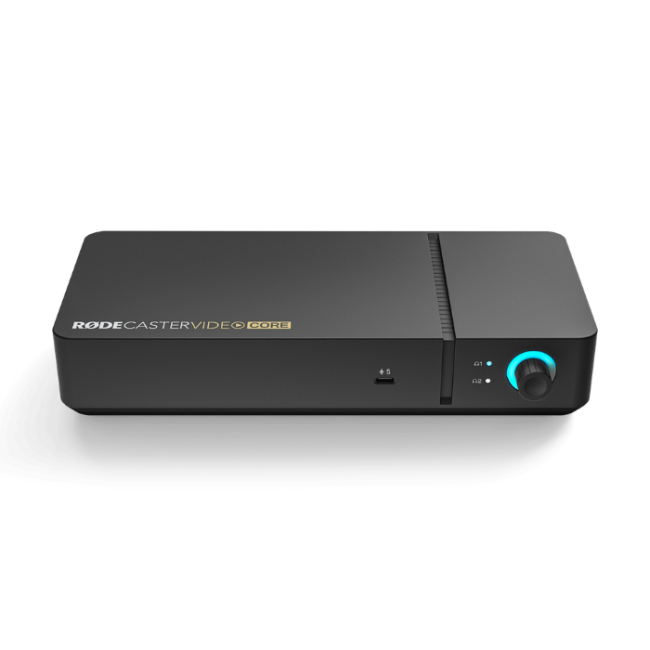

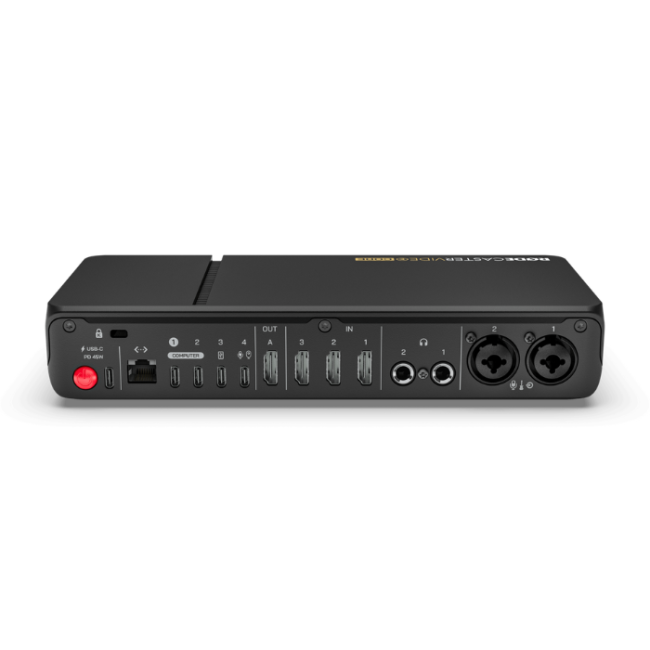

RODE Caster Video Core AV Production Console - Black
RØDE RØDECaster Video Core: All-in-one switcher/recorder/streamer with multiview HDMI output, 24GB media storage (MP4/PNG/WAV), Ethernet streaming (YouTube/Twitch/Facebook), and RØDE Central app control.
Model :VIDEOCORE
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for RODE Caster Video Core AV Production Console - Black
The RØDECaster Video Core is an innovative all-in-one console for video and audio production, providing a complete solution for producing professional content. Designed for software-based control or modular production setups, it combines video switching, recording tools, and a fully integrated professional audio mixer for broadcast-quality results.
Features
- Switch between up to four video sources and five custom scenes
- Octa-core CPU video and audio processing engine
- Three Full HD HDMI inputs and one configurable HDMI output
- Two USB-C ports for video and audio devices
- Neutrik combo jacks with Revolution Preamps
- APHEX audio processing suite with EQ, compressor, and effects
- NDI support with up to four inputs via Ethernet
- External SSD recording and UVC output support
- Dual USB-C interfaces for multiple device connections
- Direct streaming and ISO recording support
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| Video Inputs | HDMI | 3× Type-A (HDMI 1.4b, up to 1080p60) |
| USB | 1× UVC USB-C (multifunction) | |
| Total | 4 simultaneous feeds with format conversion | |
| Video Outputs | HDMI | 1× configurable (preview/program/multiview) |
| Video Features | Layers | 9 simultaneous (scenes/overlays) |
| Keyers | 2× DSK, 2× chroma (green/blue/luma) | |
| Media Players | 2× (24GB storage: MP4/PNG/JPG/WAV) | |
| Audio | Inputs | 2× combo (mic/line/instrument), 4× USB/network |
| Processing | APHEX VoxLab (compressor/EQ/de-esser/gate per channel) | |
| Outputs | 2× headphone, 11× custom routing | |
| Streaming/Recording | Protocols | RTMP (YouTube/Twitch/Facebook/X), NDI (Hx2/Hx3) |
| Formats | H.264 MP4 video + WAV audio (multitrack) | |
| Physical | Dimensions (LxWxH) | 239×125×45.5 mm |
| Weight | 705 g | |
| Power | USB-C PD 45W (20V/2.25A) |
