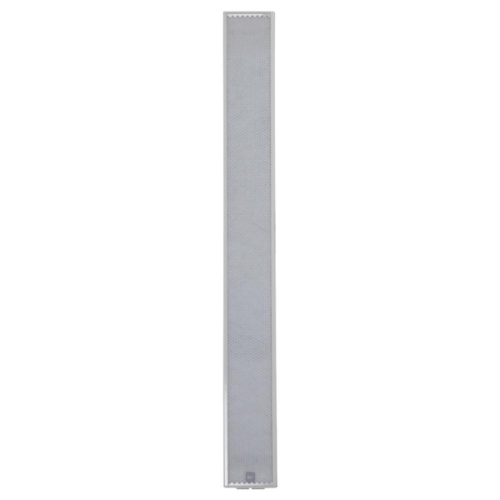

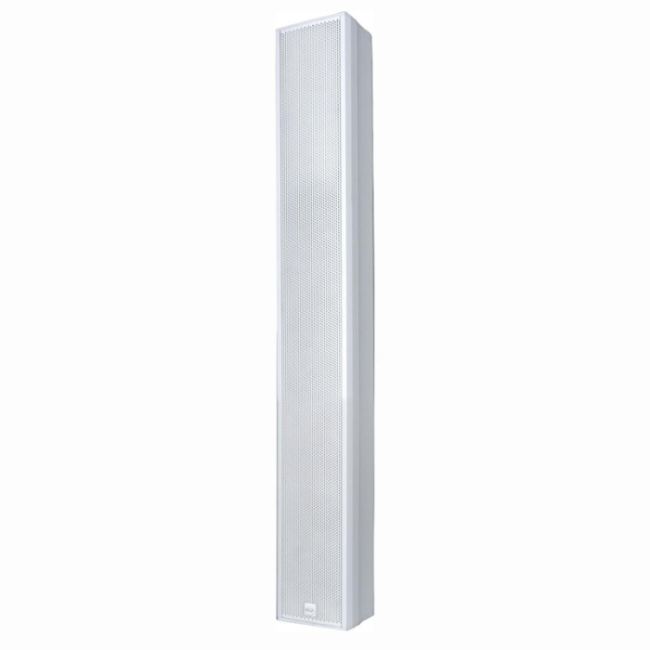

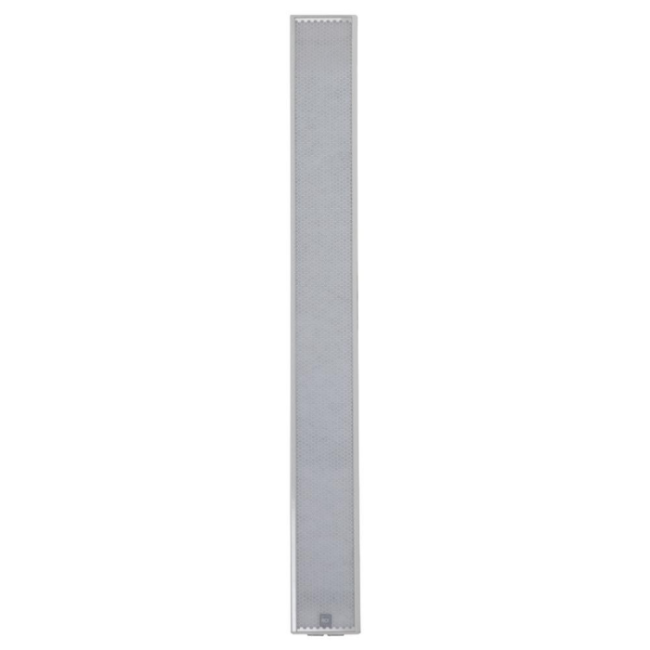

RCF VSA 850 II Digitally Steerable Column Speaker 220-240V – White
only 4 item(s) remaining
SAR 19,913.63
Rate inclusive of VAT
Fulfilled by Thomsun Industries
-
+
- Condition: New
The RCF VSA 850 II is a digitally steerable column speaker designed for installed sound applications with advanced DSP and RDNet network control. Featuring 8 × 50 W amplifiers driving 8 neodymium full-range transducers, it delivers uniform sound with wide
Model :13100028
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for RCF VSA 850 II Digitally Steerable Column Speaker 220-240V – White
The VSA 850 II is a multi-amplified vertical steerable array that represents one of the latest RCF applications in terms of digital audio technology. Thanks to powerful DSPs it processes the audio signal sent to each speaker for controlling its vertical acoustic dispersion to address the audio signal exactly to the listening area, avoiding to send the acoustic energy to ceilings and empty floors, thus not introducing bad reflections that would affect speech intelligibility, mainly in critical environments with high reverberation time. Full RDNet compatibility
Features
- 8 x Class D, 50 W amplifiers
- 93 dB Max SPL (@ 30 m)
- 8 x 3.5" full range neo speakers
- 48 kHz 32 bit signal processing
- Horizontal dispersion 130°
- Vertical Coverage Beam from 10° to 30°
- Vertical Steering from 0° to –40°
- Standard installation accessories included
- Extruded aluminium body
- Indicators and control for EN 60849 monitoring facility
| Specification | Details |
|---|---|
| Product Type | Digitally Steerable Column Speaker |
| Part Number | 13100028 |
| Operating Voltage | 220-240 V |
| Total Power (RMS) | 650 W |
| Peak Power | 1300 W |
| Frequency Response | 130 Hz – 18 000 Hz |
| Max SPL @ 30 m | 93 dB |
| Horizontal Coverage Angle | 130° |
| Vertical Coverage Angle | 30° (steerable) |
| Transducers | 8 × 3.5″ neodymium full-range, 1.0″ v.c |
| Amplification | 8 × Class-D 50 W |
| Input Signal | Balanced / Unbalanced |

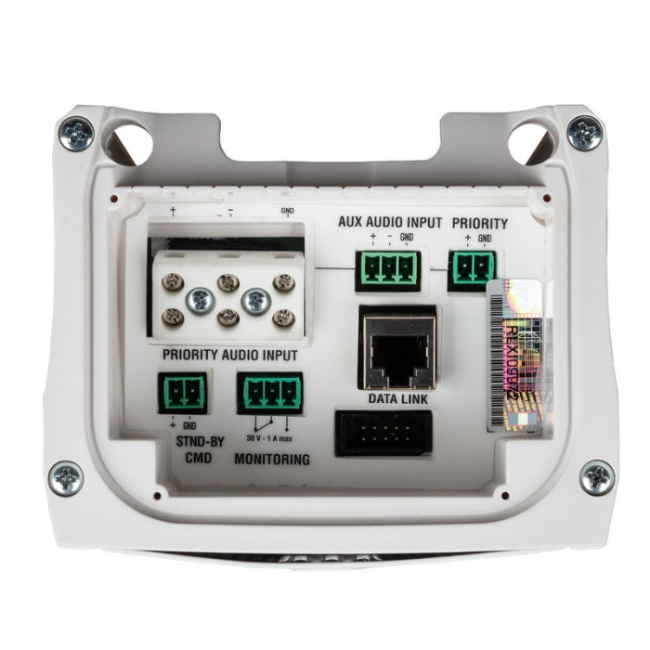

| Input Connectors | Ceramic screw terminals |
| Input Sensitivity | 0 dBu |
| Processor Protections | Thermal, short circuit |
| Limiter | Soft limiter |
| DSP / Network Control | Onboard RDNet |
| Cooling | Convection |
| Power Connector | VDE |
| Safety Agency | CE compliant |
| Cabinet Material | Aluminum |
| Hardware | 2 × wall mounting flanges |
| Color | White – RAL 9003 |
| Height | 980 mm / 38.58 inches |
| Width | 125 mm / 4.92 inches |
| Depth | 97 mm / 3.82 inches |
| Weight | 11.2 kg / 24.69 lbs |
| Package Height | 169 mm / 6.65 inches |
| Package Width | 1184 mm / 46.61 inches |
| Package Depth | 189 mm / 7.44 inches |
| Package Weight | 13.2 kg / 29.1 lbs |
