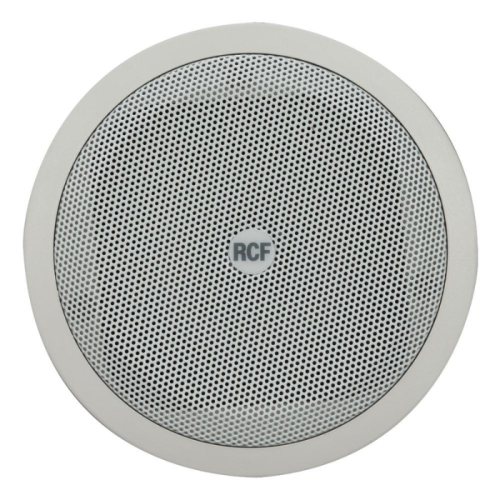

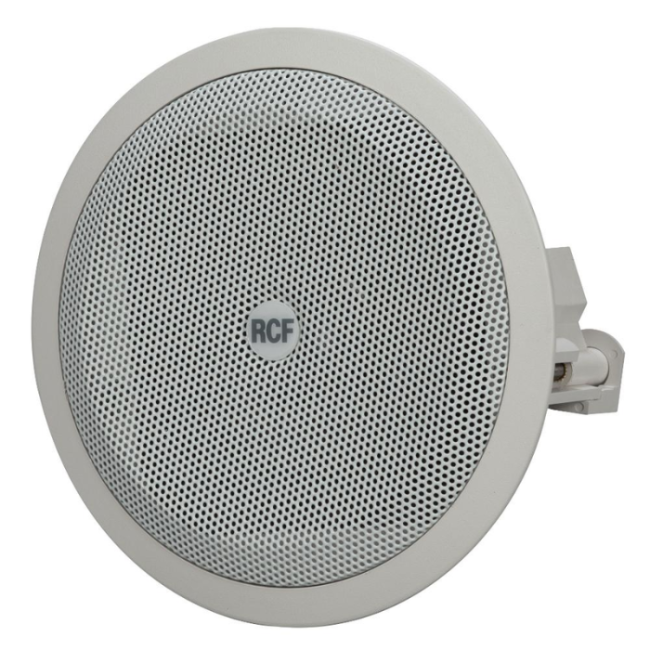

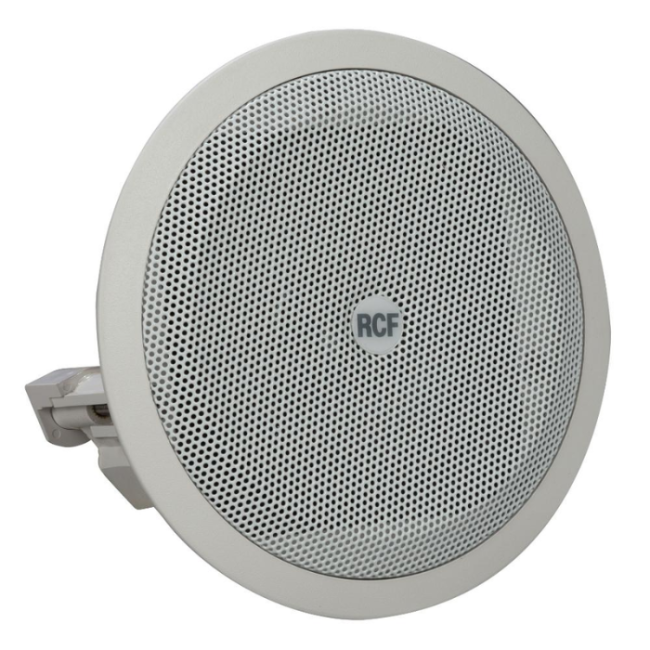

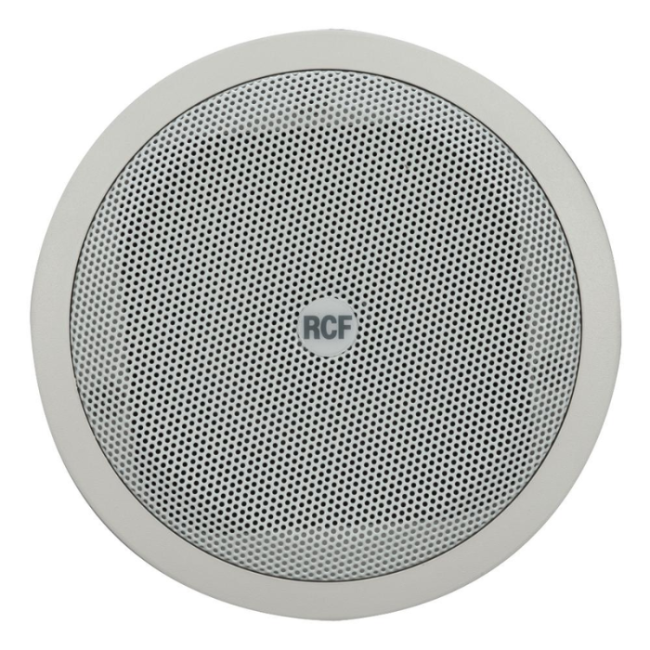

RCF PL 40 Ceiling Speaker 8 W 70/100 V – White

Description for RCF PL 40 Ceiling Speaker 8 W 70/100 V – White

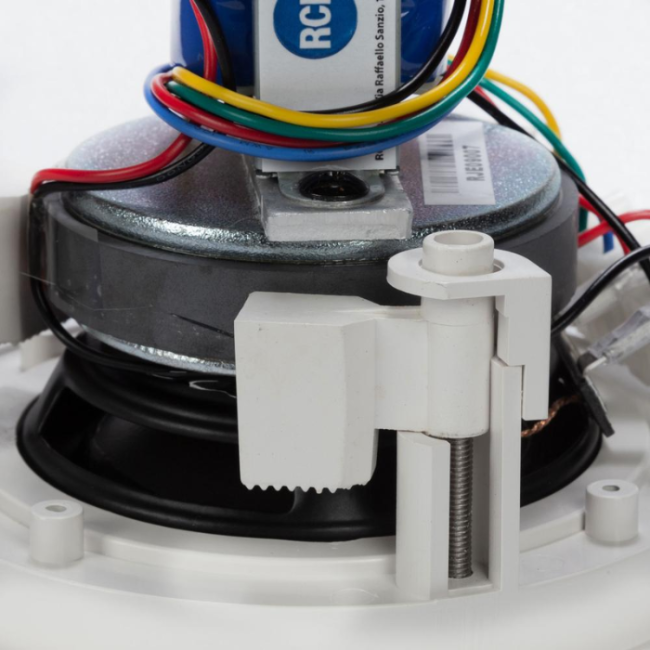

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Features

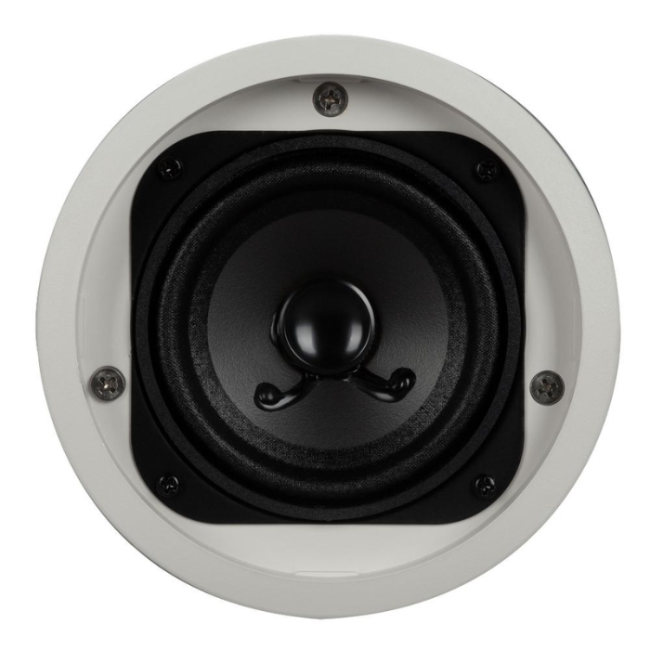

1. 3.5" fullrange transducer
2. Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
3. 88 dB sensitivity
4. Colour white RAL 9003
5. Plastic frame UL 94 V0, aluminium grille



   Category	Specification	Details
   Acoustical Specifications	Frequency Response (-10 dB)	90 Hz – 20 kHz
   	Max SPL @ 1 m	100 dB
   	Coverage Angle	120°
   	System Sensitivity	88 dB
   Power Section	Amplification	Full Range
   	Power Handling	8 W RMS
   	Peak Power Handling	32 W Peak
   Transducers	Fullrange	1 x 3.5''
   Input/Output Section	Input Connectors	Screw Terminals
   	Output Connectors	Screw Terminals

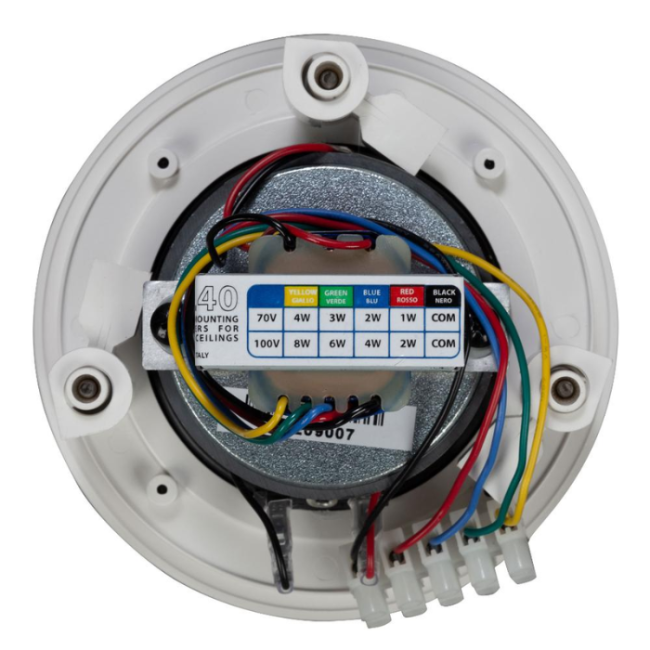

   	Constant Voltage Transformer	100 V
   	Power Selection 1	8 W – 1250 Ω
   	Power Selection 2	6 W – 1667 Ω
   	Power Selection 3	4 W – 2500 Ω
   	Power Selection 4	2 W – 5000 Ω
   Standard Compliance	IP Protection Grade	IP 44
   	Safety Agency	CE compliant
   Physical Specifications	Cabinet Material	Plastic
   	Grille	Aluminium
   	Color	White - RAL 9003
   Size / Weight	Depth	110 mm / 4.33 in
   	Recessed Depth	103 mm / 4.06 in
   	Diameter	130 mm / 5.12 in
   	Cut Out Diameter	122 mm / 4.8 in
   	Weight	0.38 kg / 0.84 lbs
   Shipping Information	Package Height	120 mm / 4.72 in
   	Package Width	175 mm / 6.89 in
   	Package Depth	175 mm / 6.89 in
   	Package Weight	1.2 kg / 2.65 lb
