PeopleLink InstaController ARSI-31074 - Black
PeopleLink ARSI-31074 Black: Metal 1U rack-mount controller with relay switches, bidirectional serial/IR ports, analog signals, Ethernet TCP/IP, status LEDs, HW reset for UC&C systems.
Model :MF-SP-INST-31074
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for PeopleLink InstaController ARSI-31074 - Black

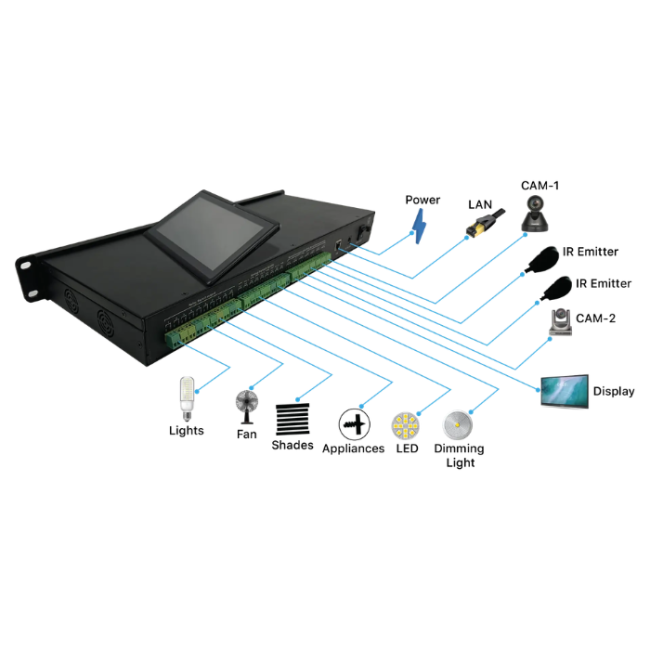

PeopleLink Instacontroller is a control system that integrates with IP devices including them into a larger control network. This system can be integrated with any network, personal or commercial. This device offers secured and reliable connectivity with a wide range of IP devices, like touchscreens, computers, mobile devices, etc whether on-premises or at remote locations. The Instacontroller android app helps in controlling systems on LAN, WAN or Internet from any location across the globe.
Features
- • Control system : Enterprise-class
control system that controls both
Digital & Analog devices
- • Secure : Secured access through full
user management
- • REST protocol : Representational
state transfer (rest) based
communication protocol
- • Programmable : API's support for
programming
- • IoT compliant : Compliant with
Internet of things (IoT) architecture
- • Mounting : One-space rackmountable
Specs المواصفات

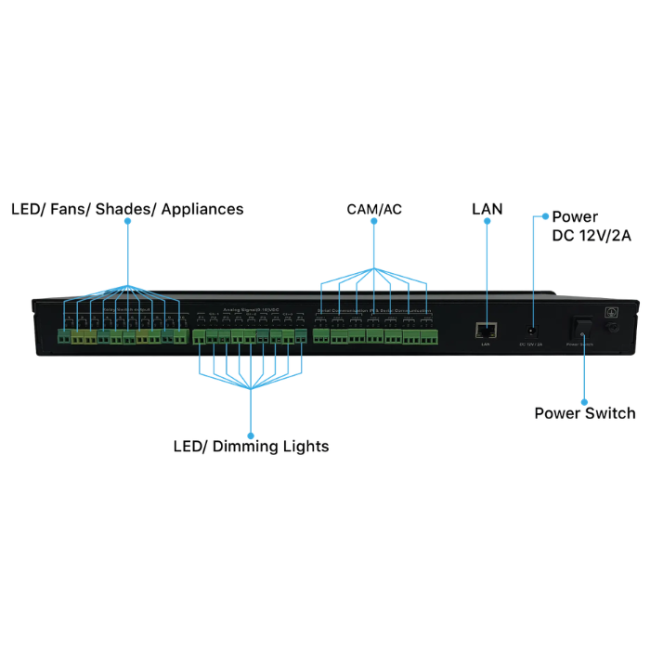

| Category | Specification | Details |
|---|---|---|
| Relay Outputs | Quantity | 10x (2-pin 3.81mm terminals) |
| Rating | 6A @ 230VAC / 110VDC (NO, non-isolated) | |
| Analog Signals | Quantity | 9x (3 channels, 2-pin 3.81mm terminals) |
| Rating | 0-10V DC (10kΩ impedance, pull-up) | |
| Serial Outputs | COM1-3 | 3x bidirectional TTL/RS-232 (3-pin, up to 115200 baud) |
| COM4-7 (IR/Serial) | 4x TTL/RS-232 or IR emitter (3-pin, 115200 baud serial) | |
| Network | Ethernet | 1x RJ45 10/100Base-T |
| Protocols | TCP/IP IPv4, REST API | |
| Sensors | TMP-R | 1x 3-pin terminal (temperature/humidity) |
| Power | Input | 12V DC / 2A (2.1mm jack) |
| Control | Reset | HW recessed button |

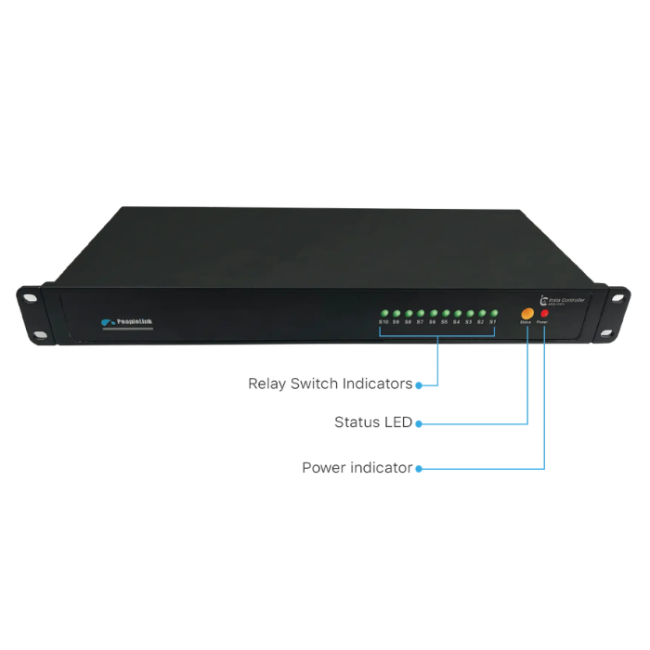

| Indicators | LEDs | Power (red), status (red/green), 10x relay (green), Ethernet link/activity |
| Physical | Dimensions (HxWxD) | 44 x 444/482 x 185 mm (w/o/with ears) |
| Mounting | 1U rack-mount or freestanding | |
| Enclosure | Metal black chassis/faceplate | |
| Environment | Temperature | 10°-45°C operating |
| Humidity | 15-85% RH non-condensing | |
| Features | Security | Full user management |
| Programming | APIs, IoT compliant | |
| App | Android for global control |
