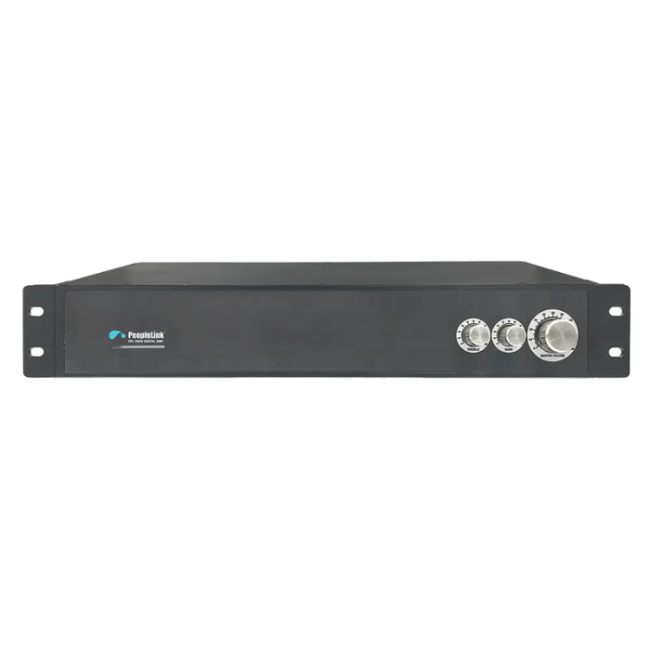

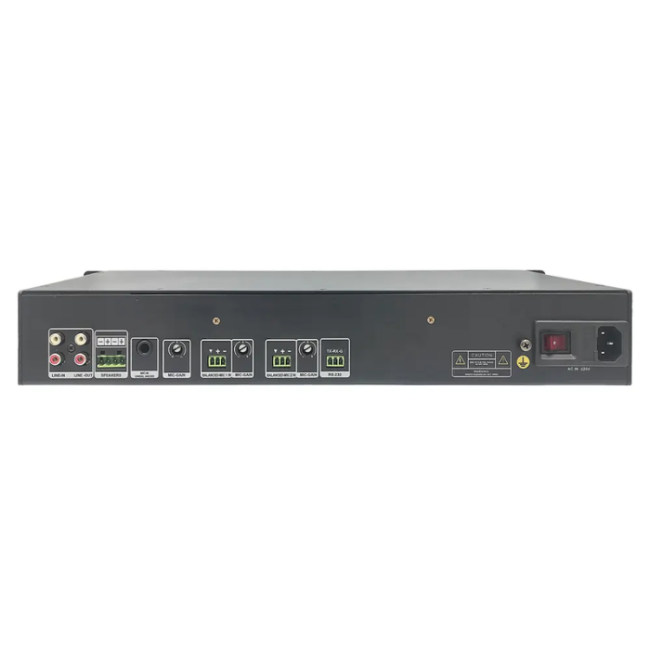

PeopleLink 200W Amplifier | PPU-MCC-AMP-200W - Black
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
PeopleLink 200W Black: Rack-mountable Class-D stereo amp with dual XLR phantom mic inputs, unbalanced 6.5mm mic, RCA line in/out, tone controls, 12-24V DC operation for conferencing systems.
Model :PPU-MCC-AMP-200W
SKU :
This item cannot be returned or exchanged
Cash on Delivery available
Description for PeopleLink 200W Amplifier | PPU-MCC-AMP-200W - Black
Introducing the PeopleLink 200-Watt Class D Mixer Amplifier, a revolutionary audio powerhouse designed to redefine your audio experience. With cutting-edge technology and a sleek, user-friendly design, this amplifier is the ultimate choice for those who demand nothing but the best in audio quality and performance.
Key Features:
- 200 Watts Class D Mixer Amplifier
- Amplifier with Bass, trebble Equalizer
- 2 Balance Phantom Microphone Inputs with Phoenix
- 1 Unbalanced Microphone Phono Input
- RS232 connection for controller
Specs
المواصفات
| Category | Specification | Details |
|---|
| Amplifier | Type | Class-D Digital, 2 Channel Stereo |
| Power Output RMS | 200 Watts (2 x 100W @ 8Ω) |
| Minimum Impedance | 8 Ohms @ 50 Watts |
| Frequency Response | 20Hz - 20kHz |
| Frequency Range | 30Hz - 16kHz |
| Controls | Equalizer | Tone controller (Bass/Treble) |
| Voltage | 12-24V DC (VCC=24V) |
| Inputs | Line | 1 x 2RCA |
| Mic | 1 x 6.5mm phono jack (gain control) |
| Phantom Mic | 2 x XLR (48V/12V balanced, separate gain) |
| Outputs | Line | 1 x 2RCA unbalanced |
| Control | RS232 Visca |
| Physical | Chassis | 19" 1U rack-mountable (MS/Aluminum, black powder coat) |
| Dimensions (LxWxH) | 435 x 175 x 8.9 mm |
| Package | Includes | Amplifier, 2x RCA cables, Phoenix connectors, power cable |
