Peavey Pro-LITE™ 3.0 2-Channel Class D Power Amp 230EB
only 1 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
Pro-LITE 3.0 230EB features high-speed Class D topology with switch-mode PSU, channel-independent fourth-order 100Hz crossovers, ACL clip limiting, and comprehensive protection for reliable 2Ω performance.
Model :3601272
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Peavey Pro-LITE™ 3.0 2-Channel Class D Power Amp 230EB
The Pro-LITE 3.0 power amplifier features an incredibly lightweight, efficient design with high power and stable performance.
The Crest Audio Pro-LITE 3.0 amplifier is designed with an advanced, high-speed class D design with a switch-mode power supply that reduces weight while increasing reliability, thermal efficiency and output power in parallel, stereo and bridged modes.

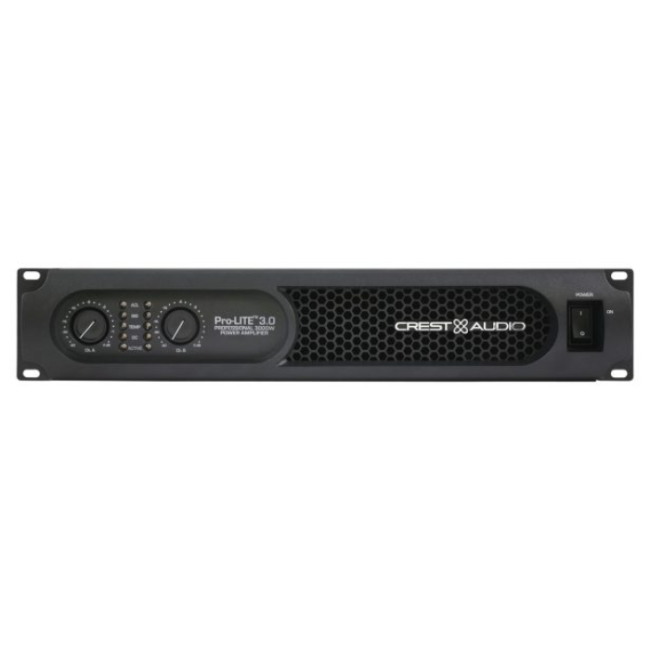

The onboard protection suite includes Crest Audio’s proprietary ACL Automatic Clip Limiting circuitry, which prevents the amplifier from sending potentially damaging clipped signals to the loudspeakers, as well as DC, Temp, Signal and Active safeguards, all referenced on the front panel with LED indicators.
Features
• 1500 Watts @ 2 Ω per channel
• 900 Watts @ 4 Ω per channel
• 500 Watts @ 8 Ω per channel
• 1550 Watts @ 8 Ω bridged
• 3000 Watts @ 4 Ω bridged
• Parallel/Bridge/Stereo mode switch
• ACL™ Automatic Clip Limiting protection
• Revolutionary Pro-LITE class D topologry
• Detented input controls
• Neutrik® Combi XLR 1/4” inputs
• Speakon® output connectors
• XLR thru connector
• Two channel-independent fourth order crossovers
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| Power Output (1% THD, 1kHz) | Stereo 2Ω | 1500W/ch |
| Stereo 4Ω | 900W/ch (burst 1000W) | |
| Stereo 8Ω | 500W/ch (burst 540W) | |
| Bridged 4Ω | 3000W | |
| Bridged 8Ω | 1550W | |
| Voltage | 230EB | 220-240V AC 50Hz |
| Performance | Frequency Response | 20Hz-28kHz (+0/-3dB @1W) |
| THD | <0.5% @1350W 2Ω (20Hz-4kHz) | |
| Features | Protection | ACL clip limiting, DC/temp/subsonic |
| Crossover | 100Hz 2nd-order HPF/3rd-order LPF per ch | |
| Connectors | Inputs | 2x Neutrik XLR-1/4" combo |
| Outputs | 3x Speakon NL4 | |
| Physical | Dimensions | 3.5 x 19 x 17.25" (89x483x438 mm) |
| Net Weight | 13.9 lbs (6.3 kg) |
