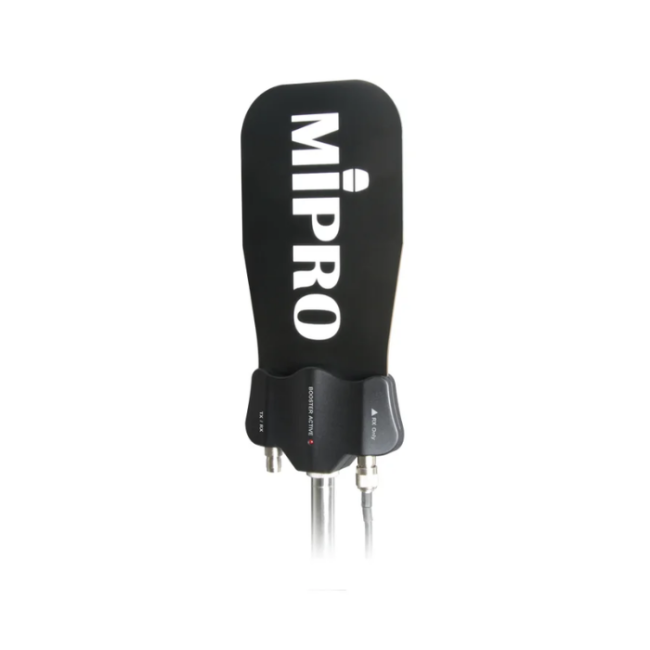

Mipro AT-70W UHF Wideband Multi-function Omnidirectional Antenna
Mipro AT-70W : Dual-purpose TX/RX antenna with built-in adjustable gain booster on RX port, compatible with MPB-30 boosters and AD-12 distributors, W-shaped design for 360° coverage.
Model :AT70WIII
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Mipro AT-70W UHF Wideband Multi-function Omnidirectional Antenna
The AT-70W is a UHF 470–1000 MHz omnidirectional antenna with 2–4 dBi gain for both transmission and reception. Its adjustable 0–12 dB booster supports stable long-range coverage for large venues and stage monitoring systems.
FEATURES
- Dual-mode design supports both transmission and reception in the UHF 470 – 1000 MHz frequency range.
- 2 – 4 dBi gain ensures high-efficiency performance for long-distance wireless applications.
- Omnidirectional design provides consistent radiation patterns in both vertical and horizontal planes, enhancing system stability and coverage.
- RX Only port features a built-in adjustable booster (0 – 12 dB), powered via bias voltage, to improve reception sensitivity and reliability.
- Compatible with MPB-30 antenna booster and AD-12 antenna distributor to extend reception range and system coverage.
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| RF | Frequency Range | UHF 470-1000 MHz |
| Antenna Gain | 2-4 dBi | |
| Type | Omnidirectional | |
| Impedance | 50 Ω | |
| Booster | Gain | 0-12 dB (RX-only port, adjustable) |
| Power | DC 8-15V bias (via RX connector) | |
| Connectivity | Connectors | 2× TNC (TX/RX + RX Only) |
| Physical | Dimensions (WxHxD) | 120×257×32 mm |
| Weight | 220 g |
