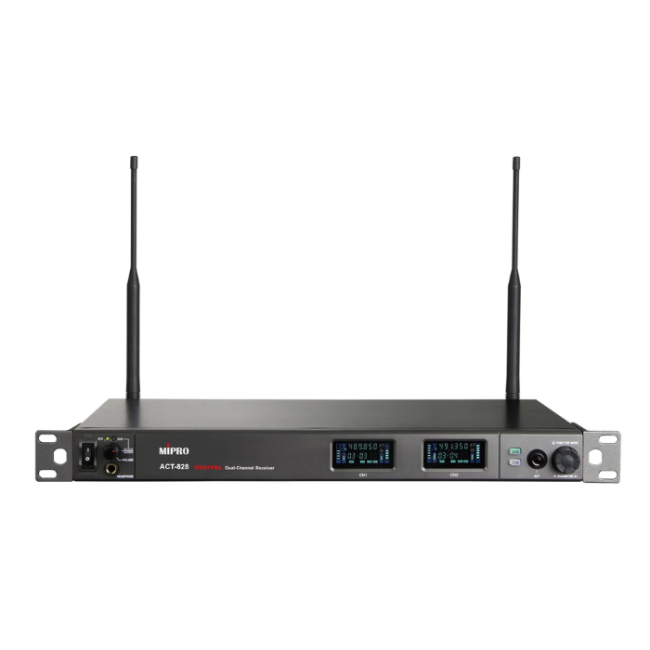

Mipro ACT-828 UHF Digital Wideband Dual-Channel Receiver - Black
only 2 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
Mipro ACT-828 Black: Full-rack 1U receiver with 10 preset EQ/anti-feedback filters, 256-bit encryption, ACT sync, detachable TNC antennas with bias, Word Clock sync, and headphone monitor output.
Model :ACT-828(NO DANTE)
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Mipro ACT-828 UHF Digital Wideband Dual-Channel Receiver - Black
The ACT-828 is a dual-channel digital receiver with a 72 MHz wideband receiving circuit, digital diversity reception, and 256-bit encryption. It delivers stable RF and high-fidelity audio, and integrates Dante, AES/EBU, Wordclock, and MWC software for professional stage and installation environments.
FEATURES
- Built with a rugged metal chassis. The front panel features a color VFD display with independent dual-channel readouts, a rotary control knob, and operation buttons for intuitive control.
- Rear panel includes analog and AES/EBU digital audio outputs, a REMOTE network interface, and a built-in Dante or AVB digital audio interface for seamless integration with various professional audio systems.
- Equipped with MIPRO’s proprietary 72 MHz wideband receiving circuit to increase channel availability and reduce intermodulation interference.
- Built-in digital diversity technology greatly extends reception range and maintains consistent audio quality regardless of distance or signal strength.
- Features MIPRO’s exclusive 256-bit advanced encryption to ensure secure signal transmission and prevent eavesdropping.
- Incorporates high-fidelity DSP audio processing and high-quality D/A converters to deliver wireless audio performance comparable to wired microphones.
- Supports Auto Scan and ACT synchronization technology for fast and accurate frequency setup.
- Preset with 6 frequency groups totaling 224 channels. A 7th user-defined group allows selection and storage of 16 channels from 2,881 available frequencies.
- Each channel supports independent audio output with three selectable gain levels, ensuring optimal transmitter sensitivity and dynamic range while avoiding signal distortion.
- Compatible with MIPRO Wireless Console software for PC-based monitoring, frequency analysis, automatic setup, and interference management, enhancing operational efficiency.
- Antenna connectors provide bias for boosters and are compatible with MIPRO professional antenna systems to improve signal range and stability.
- Operates with an external AC 100 – 240 V power supply, offering wide voltage tolerance for reliable system operation.
- Compatible with ACT-800 series handheld and bodypack transmitters, and supports TA-80 digital adapters and BC-100DT gooseneck microphone bases for versatile professional applications.
- Proudly developed and manufactured in Taiwan, delivering superior quality, professional performance, and exceptional value
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| RF | Frequency Range | UHF 480-934 MHz (country dependent) |
| Bandwidth | 72 MHz | |
| Receiving Mode | Digital diversity | |
| Sensitivity | 12 dBμV @ S/N >100 dB | |
| Audio | Frequency Response | 20Hz-20kHz (<-2dB) |
| Dynamic Range | >120 dBA | |
| Latency | 2.9 ms | |
| Sampling | 44.1kHz / 24-bit | |
| EQ | 10 presets (digital + anti-feedback) | |
| Outputs | Analog | Balanced XLR (+16/0/-6 dB switchable) |
| Digital | AES/EBU | |
| Monitor | Headphone jack w/ volume | |
| Interface | Display | Color VFD |
| Network | Dante/AVB optional | |
| Encryption | 256-bit | |
| Control | RJ11 (PC via MIPRO DVU), BNC Word Clock | |
| Physical | Chassis | 19" 1U metal |
| Antenna | Detachable TNC (50Ω bias) | |
| Power | DC 12-15V (AC 100-240V adapter) | |
| Dimensions (WxHxD) | 420×44×219 mm | |
| Weight | 2.1 kg |
