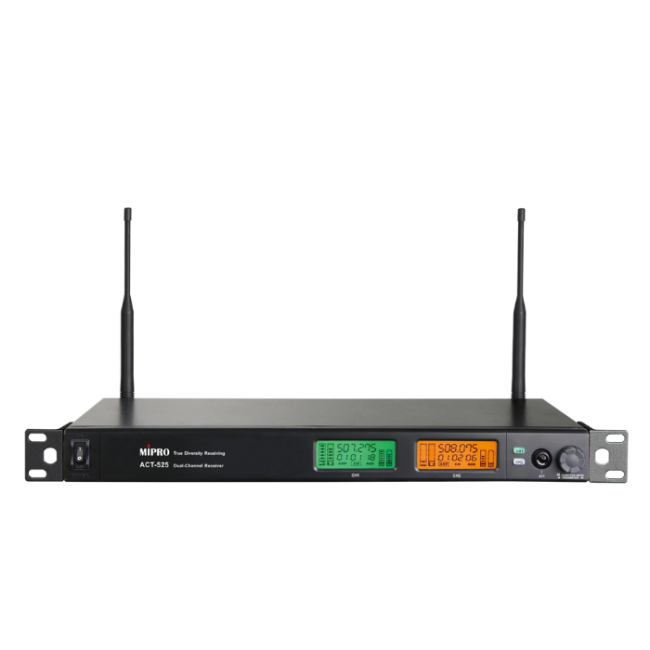

MIPRO ACT-525 UHF Analog Dual-Channel Receiver - Black

Description for MIPRO ACT-525 UHF Analog Dual-Channel Receiver - Black

The ACT-525 is a dual-channel receiver featuring a 24 MHz narrowband circuit and true diversity reception. It supports an optional Dante interface and delivers stable, interference-free audio for professional multi-channel applications.

FEATURES

• Constructed with a rugged metal chassis. The front panel features a dual-color backlit LCD, rotary dial, and channel selection buttons. Display color changes automatically during reception to clearly differentiate between active and standby channels.
• Equipped with a MIPRO-designed 24 MHz narrowband receiving circuit that reduces noise interference and increases the number of usable channels.
• Built-in true diversity reception technology ensures stable, uninterrupted long-distance reception.
• Pioneering dual-squelch system combines pilot tone and noise lock control. Includes a noise indicator and adjustable SQ sensitivity to extend range or reduce interference.
• Supports Auto Scan and ACT frequency synchronization for fast and accurate frequency setup.
• Preset with 6 frequency groups totaling 80 channels. A 7th user-defined group allows selection of 16 channels from 961 available frequencies.
• Each channel’s audio can be output independently or mixed. Features three selectable gain levels to ensure optimal transmitter sensitivity and dynamic range while avoiding distortion.
• Optional Dante digital audio interface available.
• Compatible with MIPRO Wireless Console software for PC-based frequency analysis, automatic setup, and interference monitoring to streamline system management.
• Antenna connectors provide booster bias and support MIPRO’s professional antenna systems for enhanced reception range and signal stability.
• Powered by an external AC 100 – 240 V switching power supply for stable operation across variable voltages.
• Compatible with ACT-500 series handheld and bodypack transmitters, and also supports the BC-100T gooseneck microphone transmitter for a wide range of professional applications.
• Proudly developed and manufactured in Taiwan. Offers excellent quality, professional-grade performance, and outstanding cost-effectiveness.
