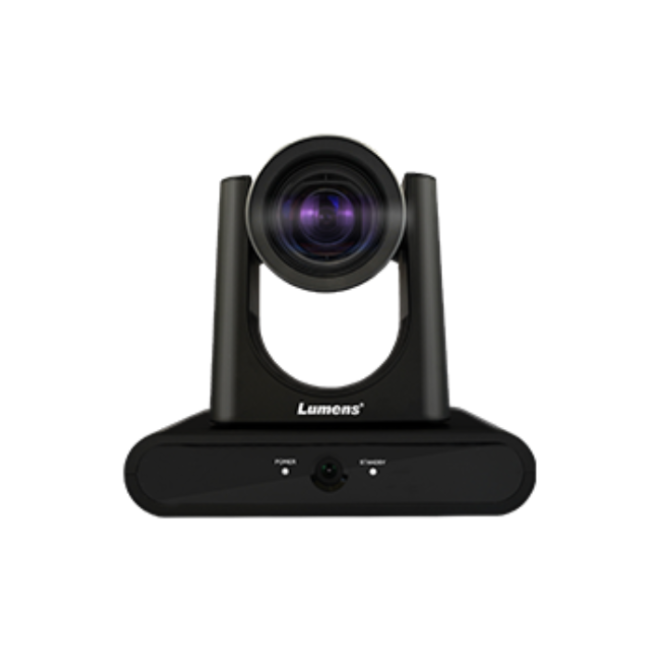

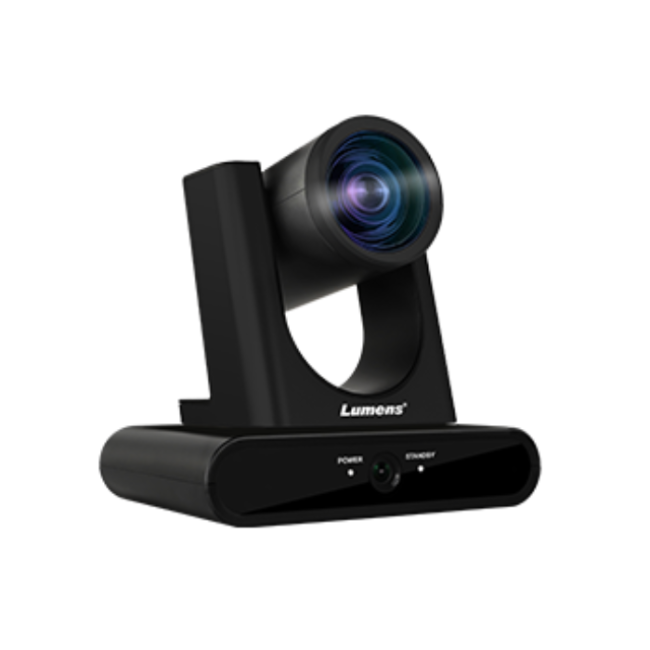

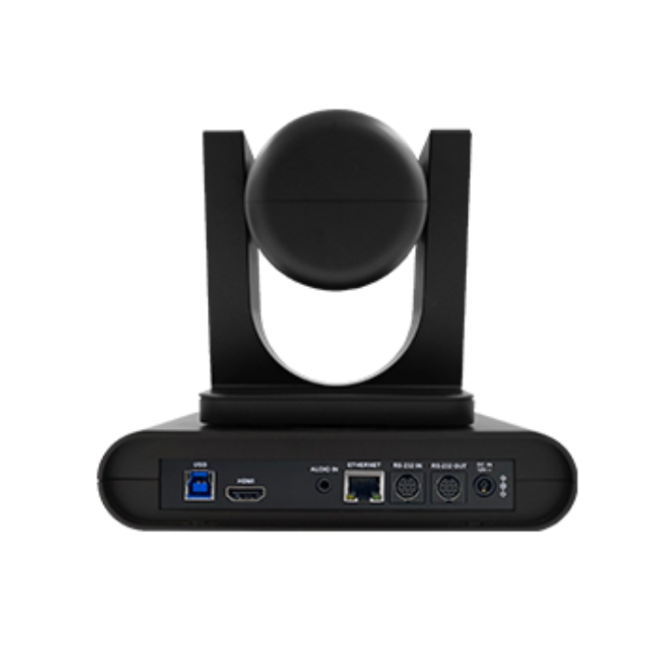

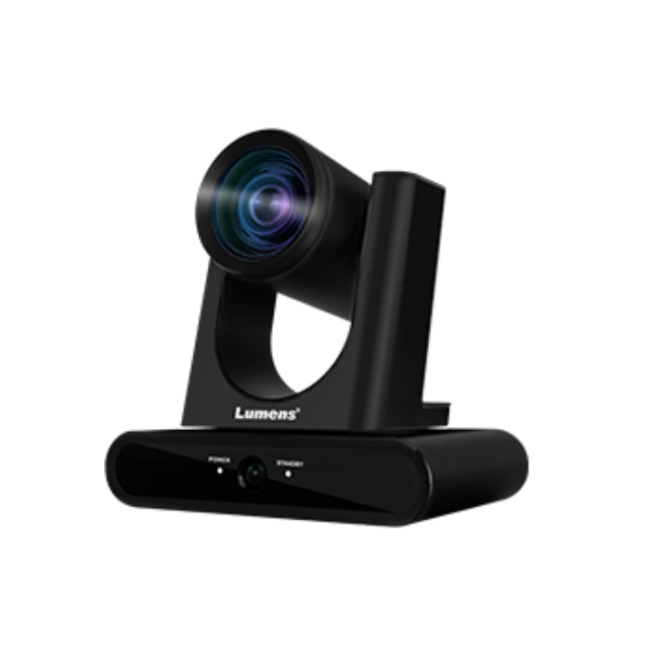

Lumens VC-TR30 AI Auto - Tracking Camera
only 1 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
Lumens VC-TR30 AI-powered Full HD PTZ camera with human detection auto-tracking: 3 tracking modes, 2 framing modes, Sony 1/2.8" sensor, 12x optical zoom (72.5° FOV), simultaneous HDMI/USB 3.0/IP streaming, quiet smooth PTZ (±170° pan, +90°/-30° tilt)
Model :VCTR30
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Lumens VC-TR30 AI Auto - Tracking Camera
FEATURES
- AI-Powered Tracking with Human Detection
- 3 Tracking modes and 2 Framing modes
- HDMI, Ethernet and USB simultaneous output
- 1080P 60fps with 12x Optical Zoom
- Mount upright or inverted
| Category | Specification | Details |
|---|---|---|
| PTZ Camera | Sensor | 1/2.8" 2.16MP CMOS |
| Resolution | 1080p60/50/30/25, 720p60/50 | |
| Optical/Digital Zoom | 12x / 12x | |
| FOV (H/V/D) | 72.5° / 40.8° / 83.2° | |
| Aperture/Focal Length | F1.6~F2.8, f=3.9~46.8mm | |
| Min Illumination | 1 lux (F1.6, 50IRE, 30fps) | |
| S/N Ratio | >50 dB | |
| Panoramic Camera | Sensor | 1/2.8" 2MP CMOS |
| Resolution | 720p30 | |
| FOV (H/V) | 111° / 62° | |
| Aperture/Focal Length | F2.4, 3.1mm | |
| PTZ Functions | Panning Range/Speed | ±170° / 0.2~120°/sec |
| Tilting Range/Speed | +90°~-30° / 0.2~80°/sec | |
| Presets | 256 | |
| AI Features | Auto Tracking | Everywhere/Stage/Partition |
| Auto Framing | Everywhere/Partition | |
| Gesture Control | Yes | |
| Outputs | Video | HDMI/Ethernet/USB 3.0 |
| USB Output | 1080p30 (MJPEG) | |
| IP Streams | PTZ Main:1080p60, Second:720p30, Pan:720p30 | |
| Protocols | HTTP/RTSP/RTMP/RTMPS/SRT | |
| Audio | Input/Output | Line In/MIC In, Ethernet/USB/HDMI |
| Compression | AAC/PCM | |
| Control | Interfaces | RS-232/Ethernet/USB 3.0 |
| Protocols | VISCA/ONVIF, UVC 1.1, UAC | |
| PoE | IEEE802.3af | |
| Physical | Power | DC 12V±20%, PoE:11W, DC:10W |
| Weight | 1.5 kg (3.3 lbs) | |
| Dimensions (W x H x D) | 190 x 185 x 138 mm (7.5 x 7.3 x 5.4") |
