LightShark LS WING Lighting Control Wing - Black

only  1 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries

100%
- +

  •  Condition: New
LightShark LS WING compact control wing for LS1/LS-Core consoles: 20 configurable executor buttons, 10 playback faders with flash/go/pause, 2x DMX outputs, 3x EtherCon LAN ports, USB hub, web server configuration, multi-protocol support (ArtNET/sACN/MIDI/
Model :56LSX004
SKU :

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available

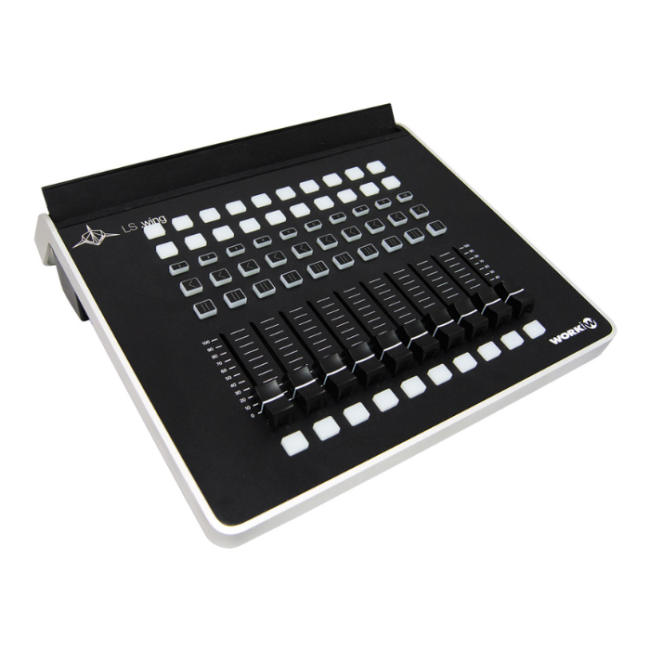

Description for LightShark LS WING Lighting Control Wing - Black

LS .wing  is  an  innovative  hardware  which  offers  several  products  in  one:  a  Wing  for  LS .1 / LS .Core,  an  OSC/UDP  hardware  controller,  a  MIDI  controller  and  a  user  programmable remote controller.

LS .wing can send/receive OSC commands through ethernet from any software or hardware compatible  with  this  protocol.  In  addition,  it  can  send/receive  UDP  messages,  making  it compatible with any AV device or software on the market.

LS .wing offers outstanding versatility to the lighting control market, as it can be configured to be compatible with other lighting systems. Developed as a 4 in 1 product, LS .wing can be a straightforward fader wing, an OSC hardware controller or a standalone MIDI console for any device that  accepts  MIDI  control  via  USB. A  total  of  four  USB  ports  are  provided,  including  a  USB-B  port, making it easy to connect to MIDI devices and charge smartphones and tablets.

In all four modes, LS .wing has a built-in ArtNet/sACN to DMX converter node offering two Direct DMX universes. WORK  PRO?s  existing  LightShark  products  -  the  LS .1  and  LS .Core  ?  already  offer  two Direct  DMX  universes  via  an  XLR  connector,  so  by  adding  LS .wing  it  is  very  easy  to  double  the number of Direct DMX universes available to each console. Its 4 in 1 design makes it easily the most versatile and functional controller on the market. In addition, lighting professionals working in theatres and on live shows can have complete control of more than one device at a time just by using different pages in the same unit.

CategorySpecificationDetails
ControlsButtons20 executors, 10 selection, 20 playback, 10 flash (configurable)
Faders10 playback faders
ConnectivityDMX Outputs2 x XLR-5 (LAN to DMX ArtNET/sACN, 2 universes)

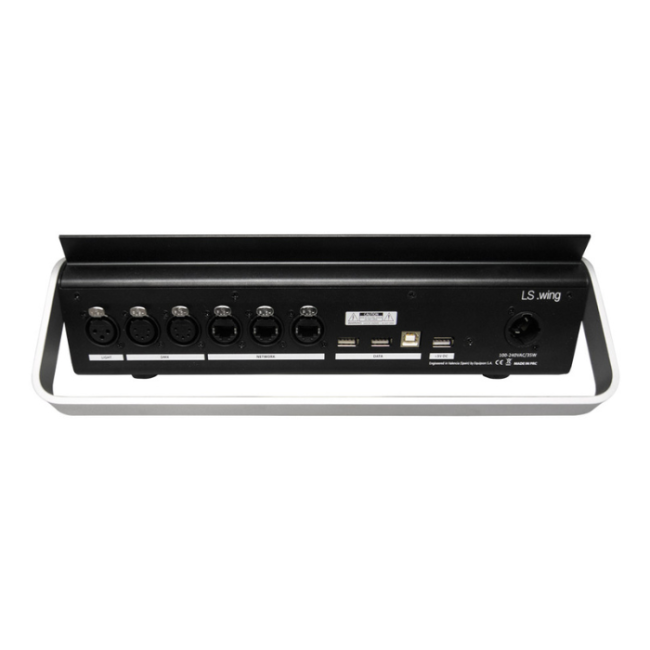

LAN Ports3 x EtherCon®
USB Ports2 x USB-A (data) + 1 x USB-A (5V power), 1 x USB-B
Lamp Port1 x XLR-3 (5V)
PowerTrueOne® 90-230V 50/60Hz
ConfigurationInterfaceWEB server via LAN
PhysicalDimensions (W x H x D)325 x 100 x 330 mm
Weight2.7 kg
