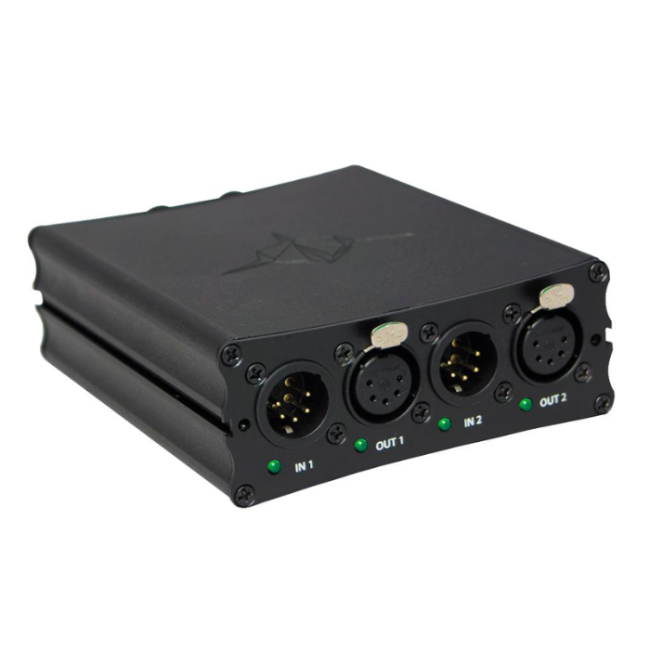

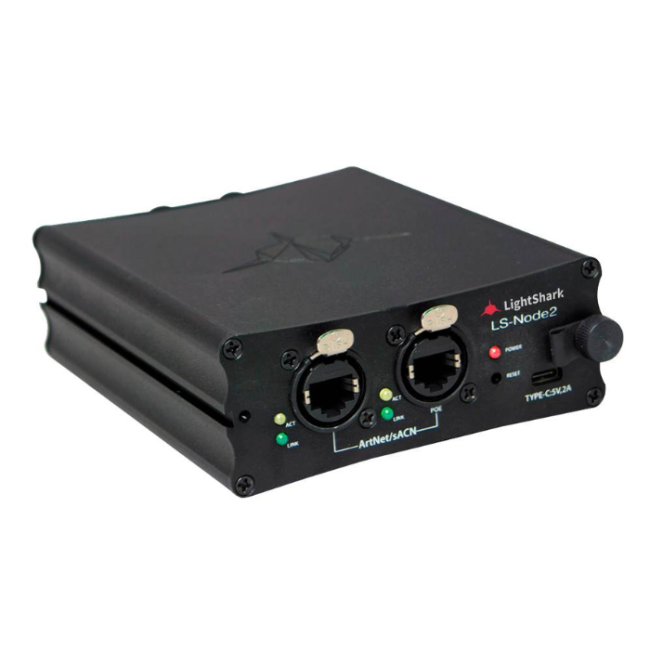

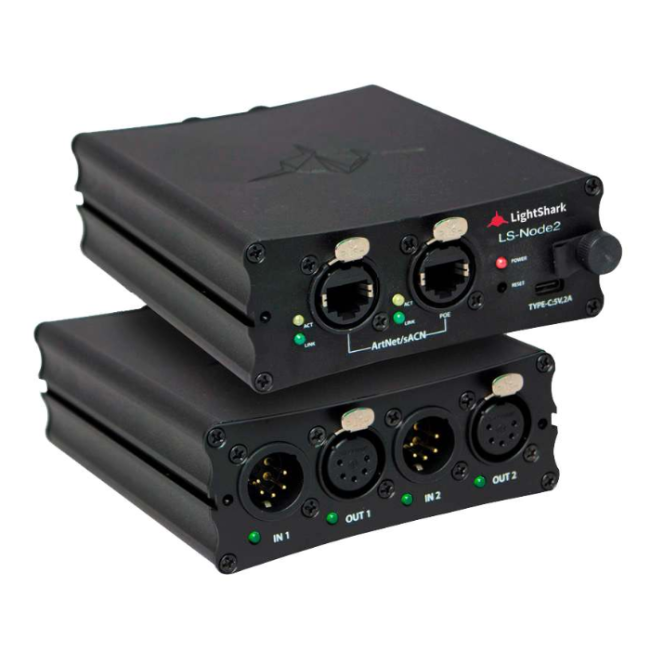

LightShark LS Node2 - Black
LightShark LS Node 2 Black: 1/4 rack-mount DMX streaming device with frame rate control, RDM support, integrated Ethernet switch, and LS AR 19 rack accessory compatibility for seamless network integration.
Model :56LSN002
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for LightShark LS Node2 - Black
The LS-Node series is the new range of DMX/RDM streaming devices supporting ArtNet and sACN industry standards. They can handle from 1 to 4 DMX universes depending on the model: LS-Node1, LS-Node2 or LS-Node4, fully configurable via webserver. All LS-Node devices have an integrated two-port Ethernet switch and are multiprotocol. It can be used as Single Mode (converter from DMX to ArtNet/sACN), Merger Mode (mixing of two universes via ArtNet/sACN or DMX in HTP/LTP mode), Backup Mode: (switches between two connected consoles in case of failure of the main one with a maximum latency of 3 seconds). ¼ rack format (LS-AR-19 accessory available). Powered via USB-C or PoE.
Main information
- 2 DMX/RDM inputs and 2 outputs.
- Ethernet - DMX/RDM bidirectional converter.
- Independently configurable ports.
- Supports sACN, ArtNet, DMX, RDM.
| Category | Specification | Details |
|---|---|---|
| Universes | Configurable | 2 (independently addressable) |
| Protocols | Network | ArtNet, sACN |
| DMX | DMX512-A (RDM compatible) | |
| Modes | Operation | Out: Single, HTP, LTP; In: Normal, Backup |
| Networking | IP Addressing | Configurable via web server |
| Subnet Mask | Configurable via web server | |
| Switch | Integrated 2x RJ45 LAN | |
| Connectors | DMX | 2x XLR5 male output, 2x XLR5 female input |
| LAN | 2x RJ45 | |
| Power | USB-C / PoE | |
| Control | Frame Rate | Configurable |
| Power | Input | 5V, 2A (USB-C or PoE) |
| Physical | Dimensions | 129 x 109 x 44 mm |
| Weight | 400g | |
| Mounting | 1/4 rack (LS AR 19 accessory) | |
| Indicators | Status | Power LED, LAN activity/link |
