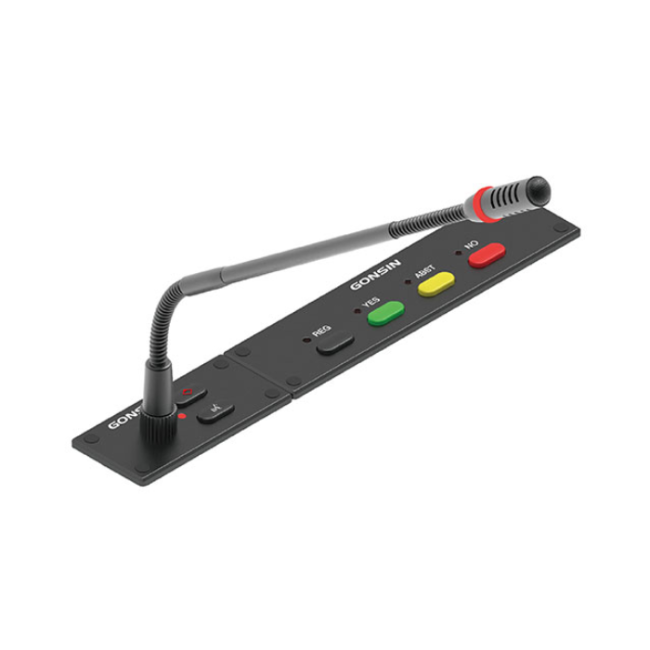

GONSIN DCS-Q2057D Basic Discussion Terminal - Black
only 1 item(s) remaining
SAR 0.00
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
GONSIN DCSQ2057D Black: 83×40×44mm flush-mount discussion unit with >20dB directivity, 125dB max SPL, 24V PoE power via server/HUB, supports horizontal desktop or chair armrest installation.
Model :DCSQ2057D
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for GONSIN DCS-Q2057D Basic Discussion Terminal - Black
Functions of System Configuration Congress Server GONSIN10000N
- In compliance with IEC 60914 international standard
- Support to connect to other 20000S products, together composing multiple big systems with different terminals
- Hand-held design with full-metal microphone suits for flush mounting installation
- With spring line, convenient for extension and storage
- Transparent silicone button with status indicator, responds accurately and has long service life
- Full digital audio technology provides CD-level sound track quality
- Equipment like congress terminal, power HUB and conference server is connected by cable, convenient for construction
- Support daisy-chain connection, star connection and mixed connection; break down of one extension won’t influence other extensions, and the mal-function of one attachment among the extensions won't influence the system work, securing stable work of the system
- Auto restoration function: support hot plug
- Support 48KHz audio sampling frequency; acoustic frequency response up to 20Hz~20KHz
- Support separated adjustment of audio and sensitivity(7 levels) of the terminal; adjust the sound effect based on the on-site speaking situation
- Build-in high performance DSP digital audio processor can eliminate invalid low-frequency components, improving the sound quality
- Highly resistant to mobile phone interference
- With one and only serial-number, the congress system supports to automatically or manually assign ID to the corresponding equipment.
- Speaking mode: VOX, Auto, FIFO, Operator
- In VOX mode, the microphone will be activated as users speak. VOX sensitivity (high/middle/low) and mic time-out(20-250 seconds)is adjustable.
- 5 delegate units can be activated at the same time(one chairman unit and 4 delegate units)
- Attendance registration: key to register, supplementary register or revocatory register
- Optional HD video camera tracking matrix, switcher or HD camera, can realize HD automatic camera tracking, supporting preset overall view
- 8*1+3 video matrix is built in the server, and standard definition video conference camera is selected, which can realize automatic camera tracking function of standard definition and support preset overall view
- Be able to connect with interpretation/voting/interpretation & voting terminal, carrying out extended conference function
- Random delegate unit can be set as vice-chairman terminal; no limit on the number of vice-chairman terminal
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| Microphone | Type | Heart pattern directional electret |
| Stem Length | 410mm standard (310/510mm optional) | |
| Sensitivity | -46dBV/Pa | |
| Directivity | >20dB @0°/180° (1kHz) | |
| Pickup Distance | ≥80cm | |
| Frequency Response | 20Hz~20kHz | |
| Max SPL | 125dB (THD<3%) | |
| Noise Level | 20dBA SPL | |
| VOX Sensitivity | H/M/L (76/80/82dB) | |
| Impedance | 2kΩ | |
| Physical | Panel Size | 83×40×3.5mm |
| Unit Size | 83×40×44mm | |
| Weight | 0.16kg | |
| Power | Supply | 24V (server/PoE HUB) |
| Consumption | 6.4W max | |
| Connectivity | Interface | 1×RJ45 |
| Environment | Temperature | 0~45°C operating; -20~50°C storage |
| Installation | Type | Flush-mount (desktop/armrest) |
