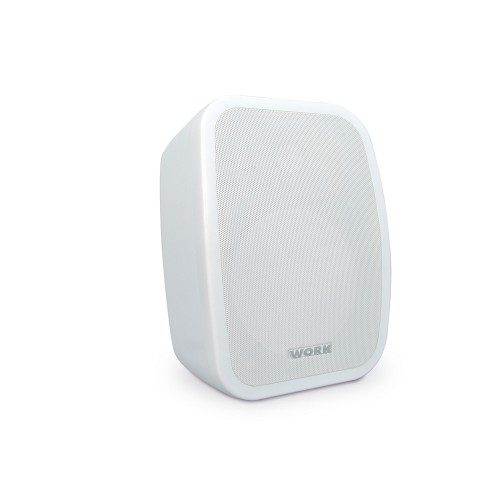

Equipson Work NEO 6 Passive Loudspeaker Pair - White

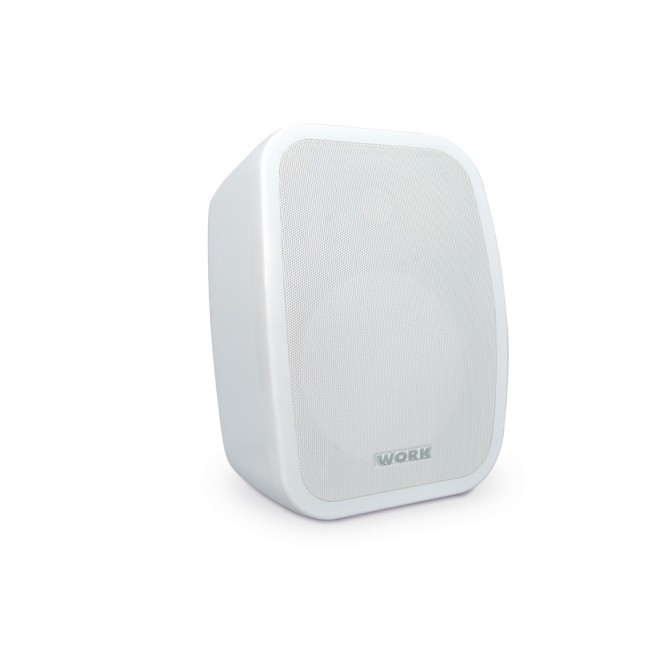

NEO 6 is a 2-way loudspeaker made of ABS plastic and white or black aluminum grille. It consists of a 6.5 '' speaker and a 1 '' tweeter.
Model :50EBS115
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Equipson Work NEO 6 Passive Loudspeaker Pair - White
The NEO 6 is a 2-way loudspeaker featuring a durable ABS enclosure with a white or black aluminum grille. It is equipped with a 6.5-inch woofer and a 1-inch tweeter for clear and balanced audio performance.
Designed for versatility, the NEO 6 supports both 70/100V constant voltage systems and 8Ω low-impedance installations. In low-impedance mode, the audio signal bypasses the transformer to maintain superior sound quality.
Installation is quick and easy thanks to the specially designed wall bracket, allowing fast and precise adjustment of the speaker in both horizontal and vertical directions.
Sold as a pair (2 passive loudspeakers).
Features
- Suitable for both high-impedance and low-impedance installations.
- Wall mounting brackets included.
- Sold as a pair (2 passive loudspeakers).
Specs المواصفات
| Specification | Details |
|---|---|
| Type | 2-Way Passive |
| Low Impedance Power | 60 W @ 8 Ω |
| 100V Line Power |
32 W @ 312 Ω 16 W @ 625 Ω 8 W @ 1.25 kΩ 4 W @ 2.5 kΩ |
| 70V Line Power |
16 W @ 625 Ω 8 W @ 1.25 kΩ 4 W @ 2.5 kΩ 2 W @ 5 kΩ |
| Nominal Impedance | 8 Ω |
| LF Transducer | 6.5" Woofer |
| HF Transducer | 1" Tweeter |
| Sensitivity (1W @ 1m) | 92 dB |
| Maximum SPL | 109 dB |
| Coverage Angle (H × V) | 120° × 90° |
| Frequency Range | 80 Hz – 20 kHz |
| Connections | Euroblock |
| Enclosure Material | Polypropylene |
| Grille | Aluminum |
| Mounting | Wall Brackets Included |
| Available Colours |
White (RAL 9003) Black (RAL 9004) |
| IP Protection Rating | IP54 |
