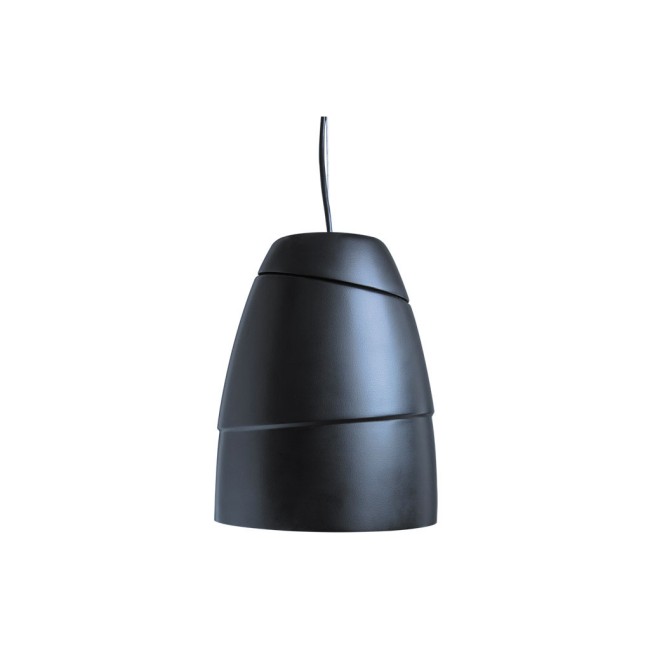

Equipson SN SUB 8 Passive Suspension Subwoofer
This item cannot be returned or exchanged
Cash on Delivery available Description for Equipson SN SUB 8 Passive Suspension Subwoofer
SN SUB 8 is a high-performance passive pendant subwoofer designed to extend the low-frequency response of the SN Series pendant loudspeakers. It delivers powerful, accurate bass while maintaining excellent speech intelligibility and musical clarity in acoustically challenging environments.
Designed for installations in shopping malls, restaurants, hotels, conference rooms, houses of worship, and other spaces with high reverberation, the SN SUB 8 enhances the overall listening experience by adding rich, controlled low-frequency performance.
The enclosure houses an 8-inch woofer with a 2-inch voice coil inside a bass reflex cabinet featuring optimized dual resonators. This design delivers deep, distortion-free bass even at high output levels while maintaining excellent efficiency.
Constructed from a seamless one-piece fiberglass enclosure, the SN SUB 8 provides exceptional durability with a clean architectural appearance free from visible screws, making it ideal for modern commercial audio installations.
Features
- Passive pendant subwoofer
- Designed for SN Series pendant loudspeakers
- 8" high-performance low-frequency driver
- 2" high-temperature voice coil
- Bass reflex enclosure with dual resonators
- Deep, powerful low-frequency reproduction
- Low-distortion performance at high SPL
- One-piece fiberglass cabinet construction
- Architectural design with concealed hardware
- Low-impedance operation
- Suitable for commercial installed sound systems
- Ideal for malls, hotels, restaurants, churches, and conference halls
Specs المواصفات
| Speaker Type | Passive Pendant Subwoofer, Bass Reflex Design |
| Power Handling (RMS) | 350 W |
| Nominal Impedance | 8 Ω |
| Low-Frequency Driver | 8" Woofer with 2" Voice Coil |
| Sensitivity | 86 dB SPL (1 W / 1 m) |
| Maximum SPL | 116.5 dB SPL (Peak) |
| Coverage Pattern | Omnidirectional |
| Frequency Response |
37 Hz – 185 Hz (-10 dB) 42 Hz – 165 Hz (-6 dB) |
| Recommended HPF | Butterworth, 24 dB/Oct @ 20 Hz |
| Input Connection | 2-Pole Stripped Wire Terminal |
| Cabinet Material | High-Quality Fiberglass |
| Protective Grille | Steel Grille with Internal Acoustic Foam |
| Rigging | Integrated Steel Suspension Point |
| Available Colours | Black / White |
| Included Accessories |
• Main Steel Suspension Cable (5 m, Ø2 mm) • Steel Safety Cable (5 m, Ø2 mm) |
| Optional Accessory | Customizable Top Cap |
| Dimensions (H × W × D) | 437 × 347 × 347 mm |
| Net Weight | 12 kg |
