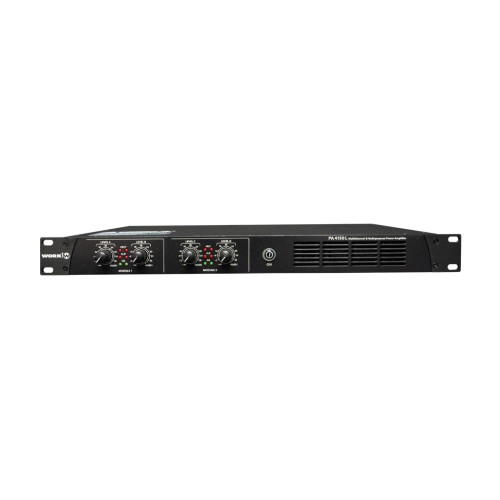

Equipson Work PA-4150 L Power Amplifier
AED 4,027.80
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
Amplifier 4 x 150 W @ L70 / 100V. PA 4150 L is an installation amplifier with 4 channels of 150W each, class D.
Model :82MEG427
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Equipson Work PA-4150 L Power Amplifier

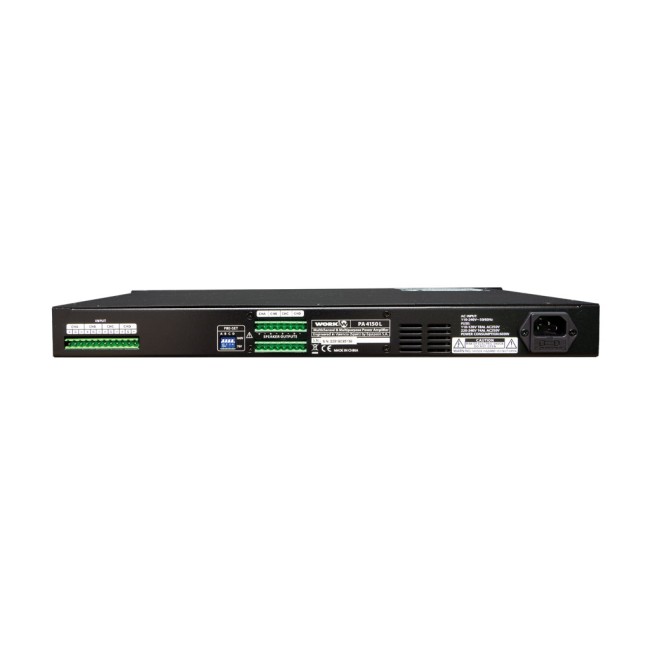

PA 4150 L is an installation amplifier with 4 channels of 150W each, class D. It can work both in 70V and 100V line (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip, and protect). The PA 4150 L amplifier integrates various protections such as short circuit, thermal, ultrasound and RF. Its inputs and outputs are connected through Euroblock terminals, and it has dimensions of 1 HU rack 19''.
FEATURES
- Switch mode power supply.
- 70 / 100V operation (selectable).
- Volume control on each channel.
- 1 HU rack 19 inch.
Specs المواصفات
| Type | 70/100 V line |
| Power | 4 x 150 W |
| Input Sensitvity | 1V (±0.1V) |
| Input Impedance | 20 KOhm (balanced) 10 KOhm (unbalanced) |
| Frequency Response | 100 Hz - 15 KHz |
| Gain | 40 dB |
| THD+N | < 0.1% |
| S/N ratio | > 95 dB |
| Crosstalk | > 70 dB |
| Connectors | INPUT and OUTPUT: Euroblock |
| Controls | Independent volume per channel |
| Protections | Short circuit, open circuit, overtemperature, ultrasonic and RF |
| Power supply | AC 110-240V, 50/60 Hz |
| Dimensions | 483 x 44 x 290 mm |
| Weight | 4.7 Kg |
