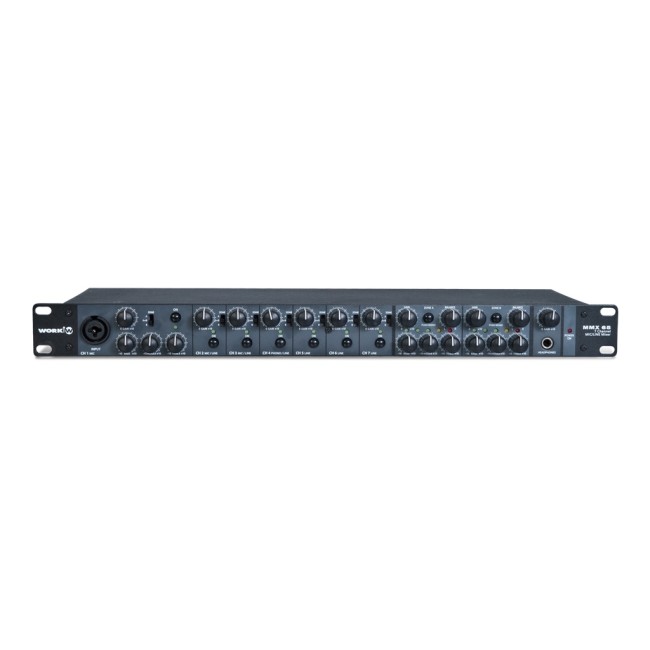

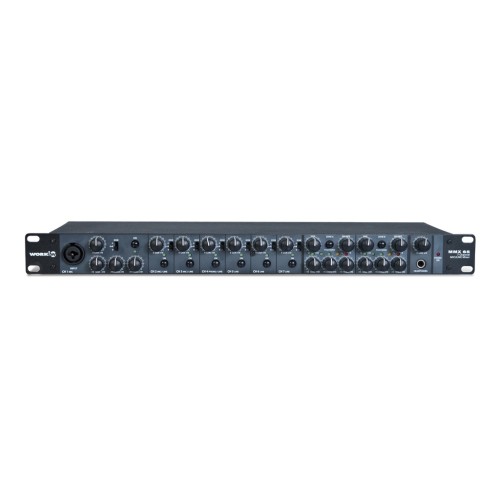

Equipson MMX-65 7-Channel Mixer
- Condition: New
This item cannot be returned or exchanged
Cash on Delivery available Description for Equipson MMX-65 7-Channel Mixer
MMX 65 is an zone audio mixer composed of two independent output zones with their own equalizer.
This versatile device features 6 input channels with source selector and priority for the first Mic channel. Additional functions for voice channel (delay, equalizer, sensitivity adjustment) provide an optimum control of audio mix.
Each input channel can be assigned to zone 1, 2 (or both). This is particularly useful for installations like stores or museums.
FEATURES
7 input channel mixer
Inputs: 6 MIC/LINE , 1 LINE/Phono, 3 LINE.
Mic 1 input with attenuator, talkover sensitivity, adjustment, delay, EQ and gain control.
Phantom supply
Mute function available for all the inputs.
Two output zones with gain, balance, EQ and mono/stereo selector.
Headphone output with volume control.
Specs المواصفات
| input channels | Ch 1: Microphone (XLR3), Ch 2 and 3: Microphone (XLR3, Euroblock), Ch 4: Stereo Line/Phono (RCA), CH 5 to 7: Stereo Line (RCA) |
| Departures | Zone A: 2 x XLR3, Zone B: 2 x 1/4" TRS Jack, Headphones: 1/4" TRS Jack |
| equalization | Treble: +/-12dB @12KHz, Mid: +/-12dB @1KHz, Bass: +/-12dB @80Hz |
| Phantom power | +12V (channels 2 and 3) |
| Maximum input level | Mic: +10dBu, Line: +10dBu |
| Sensitivity Input | Mic: -47.5dBu, Line: -10dBu |
| S/N ratio | >75dBr (A-weighted) |
| THD+N | <0.1% at +0dB ,22Hz~22KHz |
| Impedance | Mic: 1 KOhm, Line: 10 KOhm, Outputs: 120 KOhm |
| maximum output level | +26 dBu XLR & TRS balanced, +22 dBu RCA unbalanced |
| cross talk | >65d B @ 20Hz~22KHz A-weighted |
| other functions | Talkover function with adjustable sensitivity (channel 1), zone assignment selector on each channel |
| Dimensions | 483 x 44 x 200mm |
| Weight | 2.2kg |
