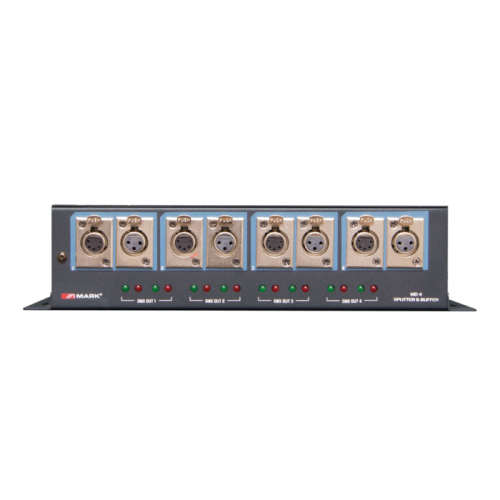

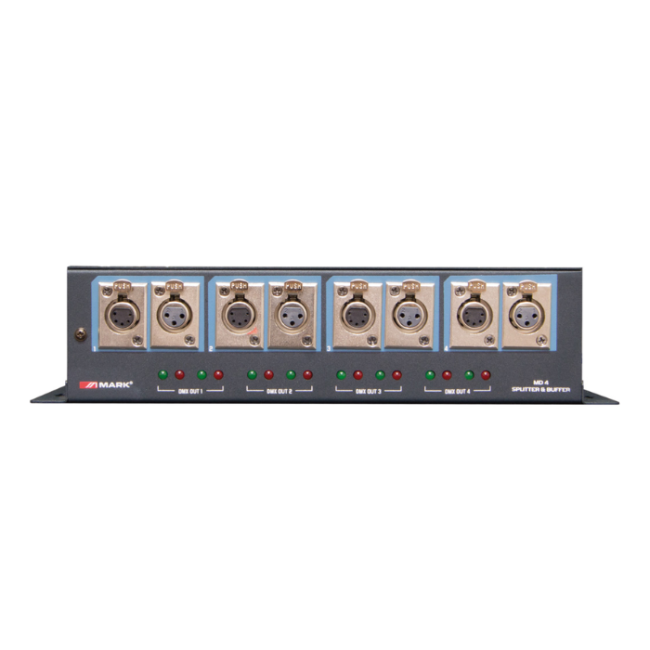

Equipson MARK MD 4 DMX Splitter Buffer - Black
MARK MD 4 Black: Rack-compatible DMX splitter with galvanic isolation between all ports, dual XLR3/5 compatibility, status LEDs per output, and termination selector for stable long-chain lighting control.
Model :60WDI016
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Equipson MARK MD 4 DMX Splitter Buffer - Black

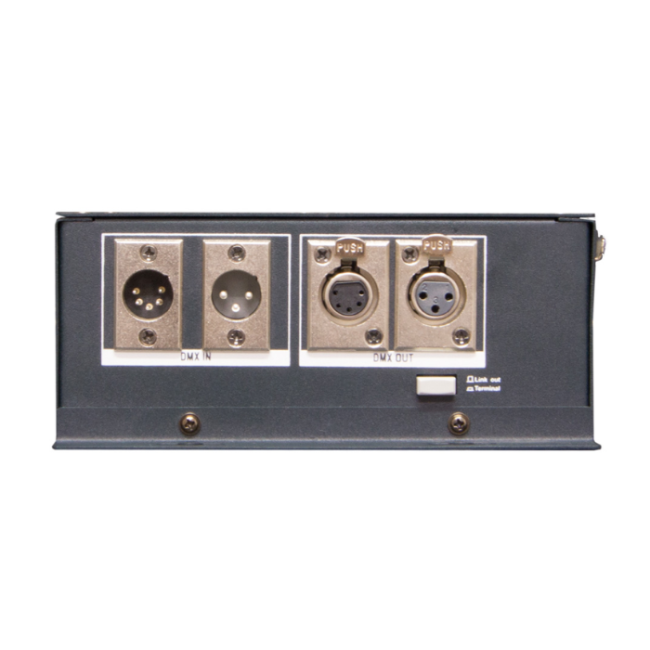

MD 4 SPLITTER is a 4-way DMX signal distributor, completely electrically isolated between input and output as well as between output and output. Both DMX inputs and DMX outputs are equipped with 3 and 5 pin XLR connectors. Each DMX output has an independent driver and DATA+ DATA- indicators.
Features- • 4-way.
- • XLR3 and XLR5 connectors.
- • Terminal/Link Out selector switch.
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| DMX | Inputs | 1× XLR3 + 1× XLR5 |
| Outputs | 4× XLR3 + 4× XLR5 (total 5 outputs counting thru) | |
| Isolation | Galvanic between input/output | |
| Power | Supply | AC 230V - 50Hz |
| Physical | Dimensions (HxWxD) | 72×277×172mm |
| Weight | 2.8kg |
