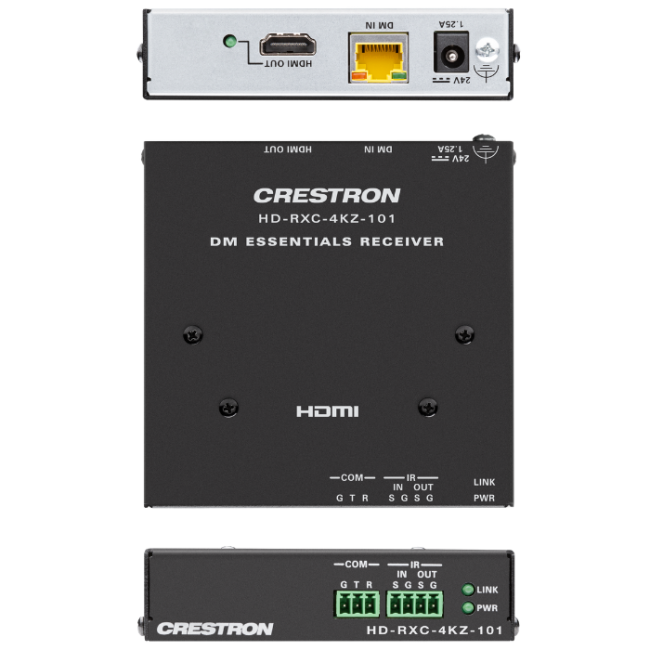

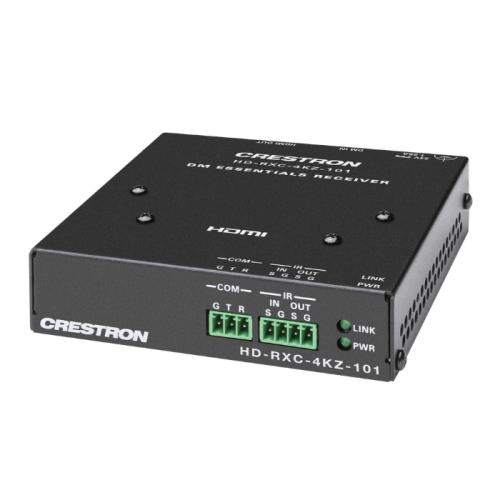

Crestron HD-RXC-4KZ-101 DM Essentials 4K60 4:4:4 HDMI Receiver
This item cannot be returned or exchanged
Cash on Delivery available Description for Crestron HD-RXC-4KZ-101 DM Essentials 4K60 4:4:4 HDMI Receiver
The HD‑RXC‑4KZ‑101 is a DM® Essentials 4K60 4:4:4 receiver designed to interoperate with a DM® Essentials transmitter or DMPS Essentials switcher for the transmission of HDMI®, RS-232, and IR signals. A CAT5e or higher twisted pair cable (Crestron DM‑CBL‑8G or DM‑CBL‑ULTRA sold separately) is needed to connect the HD‑RXC‑4KZ‑101 to the DM Essentials transmitter or DMPS Essentials switcher. For 1080p, WUXGA, and 2K signals, a cable length of up to 230 ft (70 m) is supported. For UHD and 4K signals, a cable length of up to 130 ft (40 m) is supported.1
Interoperability with a DM Essentials Transmitter or DMPS Essentials Switcher
The DM Essentials input port of the HD‑RXC‑4KZ‑101 must be connected to a DM Essentials output port of a DM Essentials transmitter or DMPS Essentials switcher. Examples of supported DM Essentials 4K60 4:4:4 transmitters are the HD‑TXC‑4KZ‑101 and HD‑TXCA‑4KZ‑101. Supported DMPS Essentials switchers are the HD‑PS622, HD‑PS621, HD‑PS402, and HD‑PS401.
The HD‑RXC‑4KZ‑101 can be configured and controlled only when it is used with a DMPS Essentials switcher. The web interface of the switcher can be used to configure the HD‑RXC‑4KZ‑101. In addition, control system programming and .AV Framework™ software support of the HD‑RXC‑4KZ‑101 is hosted by the switcher.
4K60 4:4:4 and HDR Support
The HD‑RXC‑4KZ‑101 supports video resolutions up to 4K60 with 4:4:4 color sampling. HDR10, HDR10+, and Dolby Vision® video formats are also supported.2
Compact, Surface-Mountable Design
Compact in design, the HD‑RXC‑4KZ‑101 can be mounted onto a flat surface such a wall behind a flat-panel display or a ceiling above a projector. It can also be attached to a single rack rail in the back of an equipment cabinet. The HD‑RXC‑4KZ‑101 can receive power from the included power pack or from the remote DM Essentials transmitter or DMPS Essentials switcher.3
Key Features
- Interoperability with a DM® Essentials transmitter or DMPS Essentials switcher
- Point-to-point extension of HDMI®, RS-232, and IR signals over a CAT5e or higher cable
- DM Essentials transmission distance up to 130 ft (40 m) for UHD and 4K signals or up to 230 ft (70 m) for 1080p, WUXGA, and 2K signals
- 4K60 4:4:4 capability
- HDR10, HDR10+, and Dolby Vision® video formats
- Compliance with HDCP 2.3
- CEC (Consumer Electronics Control) pass-through capability
- Bidirectional RS-232 and IR pass-through capability
- EDID pass-through capability
- Compact, surface-mountable design
- Power from 24VDC power pack (included) or from remote DM Essentials transmitter or DMPS Essentials switcher
Specs المواصفات
| Category | Specification | Details |
|---|---|---|
| Video | Input | DM Essentials, HDR10/HDR10+/Dolby Vision/Deep Color/4K60 4:4:4 |
| Output | HDMI Type A (DVI compatible), HDCP 2.3 | |
| Max Resolution | 4096x2160@60Hz 4:4:4 8-bit; 4K@30Hz 4:4:4 12-bit crestron | |
| Audio | Formats | Dolby TrueHD/Atmos, DTS:X, LPCM 8ch |
| Communications | RS-232 | Bidirectional up to 115.2k baud |
| IR | Bidirectional up to 60kHz | |
| HDMI | EDID/CEC pass-through | |
| Connectors | DM IN | RJ-45 (CATx shielded) |
| HDMI OUT | HDMI Type A female | |
| COM | 3-pin 3.5mm block | |
| IR IN/OUT | 4-pin 3.5mm block | |
| Power | 24VDC 2.5A (PW-2420RU included) | |
| Physical | Dimensions | 105 x 106 x 27 mm (HWD) |
| Weight | 335g | |
| Enclosure | Metal black, surface/rack mount | |
| Transmission | Max Distance | 130ft (40m) @ 4K60 4:4:4; 230ft (70m) @ 1080p |
