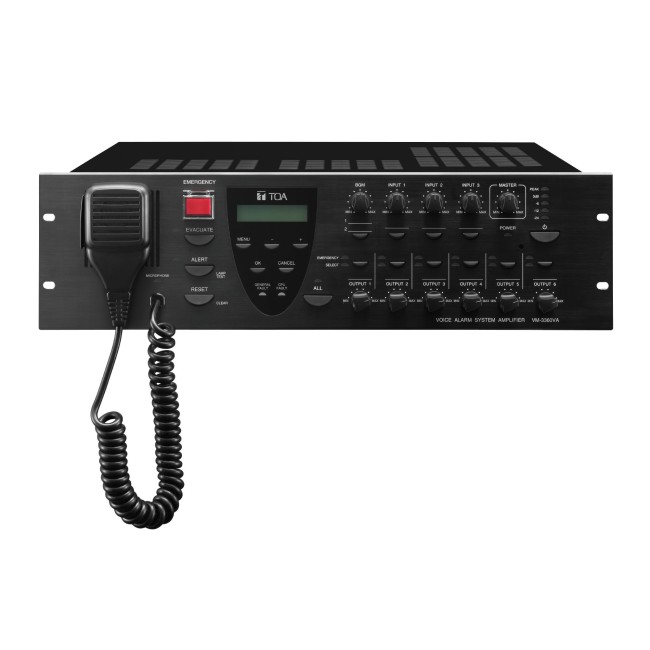

TOA VM-3360VA System Management Amplifier
This item cannot be returned or exchanged
Cash on Delivery available Description for TOA VM-3360VA System Management Amplifier
System Management Amplifier
- Master, 1 unit per system
- 360 W power output
- 8 remote microphones (4x general, 4x emergency)
- EN54: max. 2 x emergency or 4 x general +1 x emergency)
- 6 zones, for BGM selectable with volume control from the front panel
- Built-in high quality electronic voice store for 2 emergency and 6 general messages
Specs المواصفات
| VM-3360VA | |
|---|---|
| Power source |
230 V AC, 50 / 60 Hz |
| Rated output |
360 W (total into 6 zones) |
| Frequency response |
50 Hz - 20 kHz (at 1/3 rated output) |
| Distortion |
< 0.7 % (at 1 kHz, rated power) |
| Power consumption |
850 W (at rated output), 380 W (EN 62368-1) |
| S/N ratio |
85 dB (or more) |
| Inputs |
Input 1 - 3: -50 dBV (MIC) / -10 dB (LINE) (changeable), 600 Ω, electronically balanced, combined XLR connector (female) / phone jack Input 4: -50 dBV (MIC) / -10 dBV (LINE) (changeable), 600 Ω, electronically balanced, on removable terminal block (14 x 2 pins) BGM 1 - 2: -10 dBV, 10 kΩ unbalanced, RCA pin jack (2 x 2) External amplifier Input: 100 V Line, removable terminal block (14 pins) |
| Outputs |
Speaker output 1 – 6: Total within rated output, removable terminal block (14 pins) Direct output from internal or external amplifier, removable terminal block (16 pins) Recording output BGM / Paging 0 dBV, 10 kΩ, unbalanced, RCA pin jack |
| Control input |
Control input 1 - 8: No-Voltage make contact input, open voltage: 24 V DC, short-circuit current: under 2 mA, removable terminal block (14 x 2 pins) |
| Control output |
Control output 1 - 8: Isolated open collector output, withstand voltage: 30 V DC, operating current: under 10 mA, removable terminal block (14 x 2 pins) |
| Indicator |
Power, 5-segment bargraph level meter, selected zone, emergency zone active, evacuation active, alert active, front panel microphone active, general fault, CPU fault, menu driven LCD for date, IP address, password etc. |
| Operating humidity |
5% to 95% RH (no condensation) |
