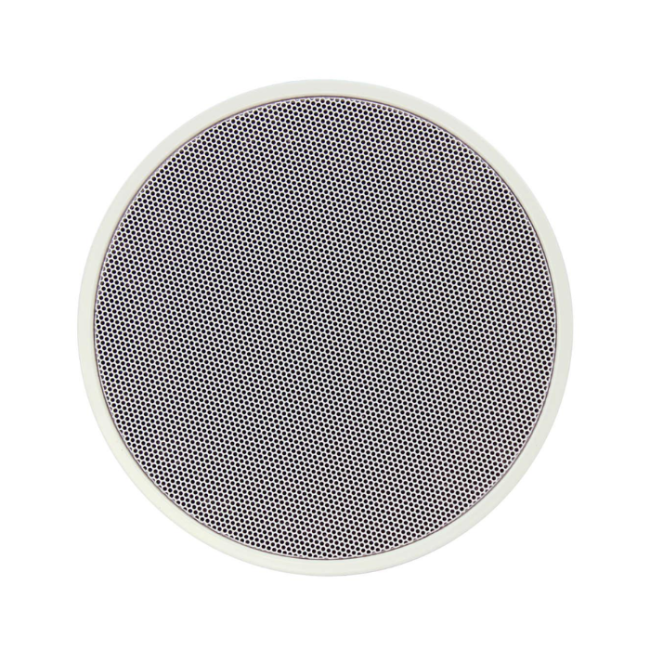

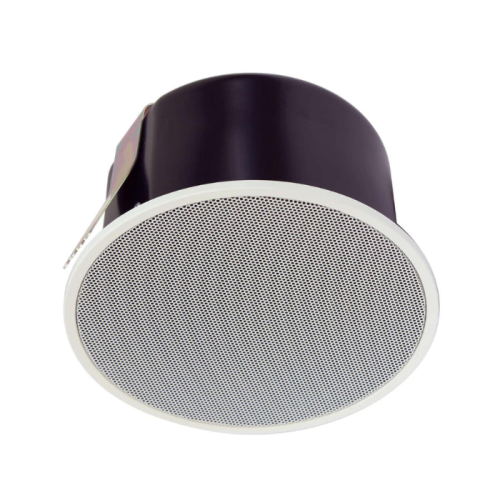

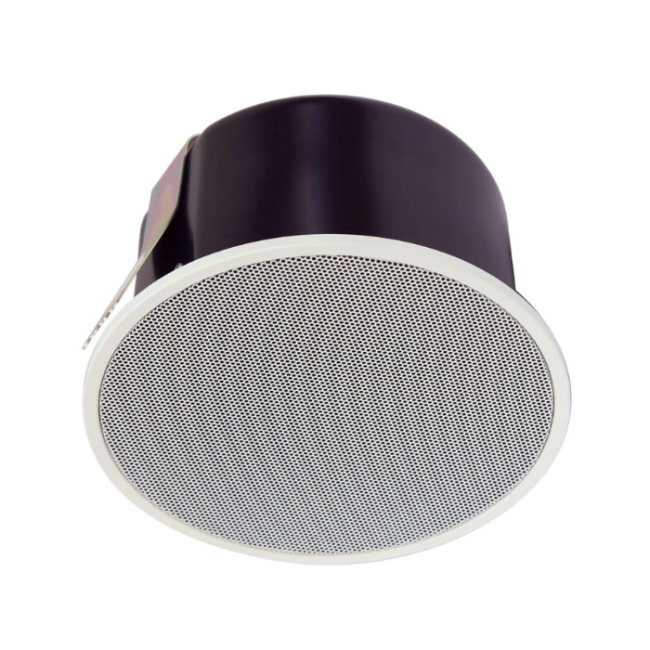

TOA PC-1860BS Ceiling Speaker - White
-
+
- Condition: New
TOA PC-1860BS: 12cm (5") fire-rated ceiling speaker with steel fire dome, ceramic terminal block, thermal fuse, multiple 100V/70V taps, paintable white steel grille.
Model :PC1860BS
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for TOA PC-1860BS Ceiling Speaker - White
The ceiling speakers of the PC-series are suitable for announcements and BGM system use in high quality. The speaker’s design harmonizes with modern architecture and decor.
The PC-1860BS is equipped with a fire dome to protect it from fire and to prevent fire from spreading through the ceiling. Thus, the speaker is designed according to British Standard BS 5839-8: 2013 and EN54-24
Features- Flat front panel
- Quick and easy installation
- Fire dome made of steel
- Ceramic screw terminal block and thermal fuse
- 6 W rated input
- 12 cm speaker chassis
| Category | Specification | Details |
|---|---|---|
| Acoustical | Frequency Response | 170 Hz - 20 kHz |
| Sensitivity (1W/1m) | 95 dB | |
| Max SPL (1m) | 100 dB | |
| Speaker Component | 12 cm (5") cone | |
| Power Taps | 100 V Line | 6 W (1.7 kΩ), 3 W (3.3 kΩ), 1.5 W (6.7 kΩ), 0.8 W (13 kΩ) |
| 70 V Line | 3 W (1.7 kΩ), 1.5 W (3.3 kΩ), 0.8 W (6.7 kΩ), 0.4 W (13 kΩ) | |
| Physical | Dimensions | 180 × 105 mm (Ø × D) |
| Weight | 1.1 kg | |
| Finish | Steel plate/grille, RAL 9016 white | |
| Protection | IP21C, Fire dome | |
| Temperature Range | -10°C to +50°C | |
| Installation | Mounting Hole | Ø156 ±3 mm |
| Ceiling Thickness | 5-25 mm | |
| Connection | 2-pole steatite ceramic terminal |
