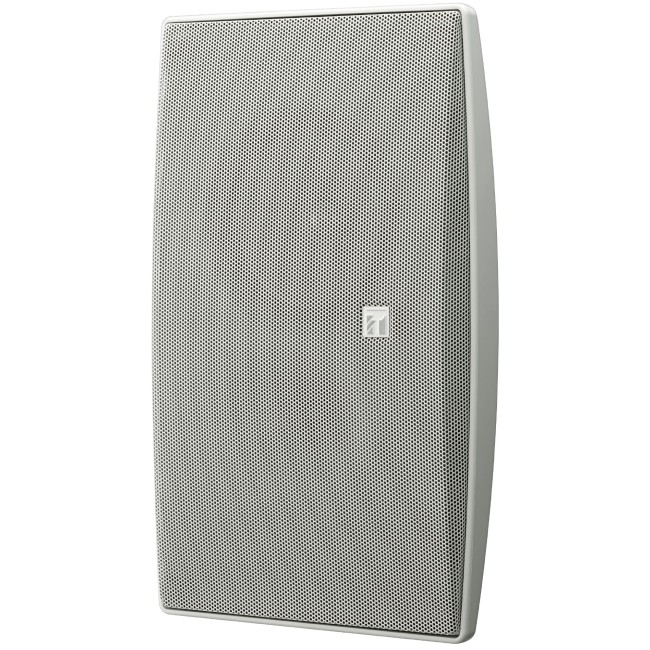

TOA BS-1034 Wall Mount Speaker
The BS-1034 can be installed easily on the wall with help of the plug-in speaker receptacle.
Model :BS1034
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for TOA BS-1034 Wall Mount Speaker
The BS-1034 is a wall mount speaker that can be installed easily on the wall with help of the plug-in speaker receptacle.
- 2-way speaker
- Easy and quick installation
- Attractive design based on the golden ratio
- Input impedance selector with rotary switch
- Fire resistant according to UL 94-V0
Specs المواصفات
| BS-1034 | |
|---|---|
| Frequency response |
120 Hz - 20 kHz |
| Connection |
M4 screw terminal, distance between barriers: 11 mm |
| Sensitivity (1 W, 1 m) |
90 dB SPL |
| Speaker component |
Low: 12 cm cone-type, High: Balanced dome-type |
| Rated input (High Impedance) |
10 W |
| Tappings |
100 V : 1 kΩ (10 W) / 2 kΩ (5 W) / 3.3 kΩ (3W) / 10kΩ (1 W) 70 V : 500 Ω (10 W) /1 kΩ (5 W) / 2 kΩ (2.5 W) / 3.3 kΩ (1.5 W) / 10kΩ (0.5 W)
|
| Finish |
HIPS resin, off-white (RAL 9010 or equivalent) |
| Dimensions |
210 x 330 x 80 mm (W x H x D) |
| Weight |
1.4 kg |
