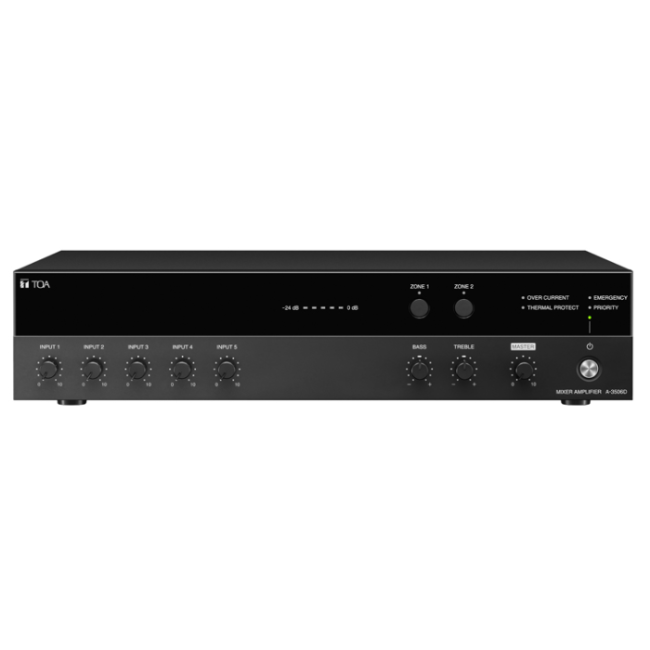

TOA A-3524D Digital Mixer Amplifier 240W - Black
only 1 item(s) remaining
SAR 0.00
Rate inclusive of VAT
-
+
- Condition: New
TOA A-3524D: 240W digital mixer amp with 5 inputs, 2-zone high/low impedance outputs, phantom power, tone controls, emergency/priority functions, rackmount design.
Model :A3524D
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for TOA A-3524D Digital Mixer Amplifier 240W - Black
The A-3500D series is a PA amplifier with emergency and priority paging, remote zone control. It is equipped with 4 microphone inputs and 1 auxiliary input and 2-channel zone selector, ideal for paging announcement and BGM applications in schools, offices and supermarkets
| Category | Specification | Details |
|---|---|---|
| Power | Source | 100-240 V AC, 50/60 Hz |
| Rated Output | 240 W | |
| Consumption | 314 W (rated), 70 W (EN62368), <200 mA (off) | |
| Audio | Frequency Response | 50 Hz - 20 kHz ±3 dB |
| Distortion | ≤1% @1kHz rated power | |
| S/N Ratio | ≥88 dB (master min), ≥76 dB (max), ≥55 dB (inputs 1-6), ≥72 dB (input 7) | |
| Tone Control | Bass ±10 dB @100 Hz, Treble ±10 dB @10 kHz | |
| Inputs | INPUT 1,2 | -60 dB MIC/-20 dB LINE, 600Ω balanced, Euroblock/phone, 24V phantom |
| INPUT 3 | -60 dB MIC, 600Ω balanced, phone jack | |
| INPUT 4 | -60 dB MIC/-20 dB LINE, 600Ω balanced, phone jack | |
| INPUT 5 | -20 dB AUX, 10 kΩ unbalanced RCA | |
| PWR AMP IN | 0 dB, 600Ω unbalanced RCA | |
| Outputs | Speaker | Low Z (4-16Ω), High Z (100V ZONE1/ZONE2 max 240W each), Euroblock |
| Rec Out | 0 dB, 600Ω unbalanced RCA | |
| Line Out 1,2 | 0 dB, 600Ω unbalanced RCA (zone interlock) | |
| Control | Inputs | 2 ch no-voltage contact (35V/10mA), Zone control |
| Outputs | Power remote, Emergency, Zone control (30V/25mA open collector) | |
| Indicators | 5-pt LED meter, Power/Priority/Emergency/Thermal/Overcurrent/Zone LEDs | |
| Physical | Dimensions (W x H x D) | 420 x 96.1 x 313.1 mm |
| Weight | 4.9 kg | |
| Finish | ABS panel, steel case, black | |
| Operating Temp/Humidity | -10°C to +40°C, ≤85% RH | |
| Accessories | Included | Power cord, terminal plugs, volume covers |
| Options | MB-25B rack bracket, PF-013B panel |
