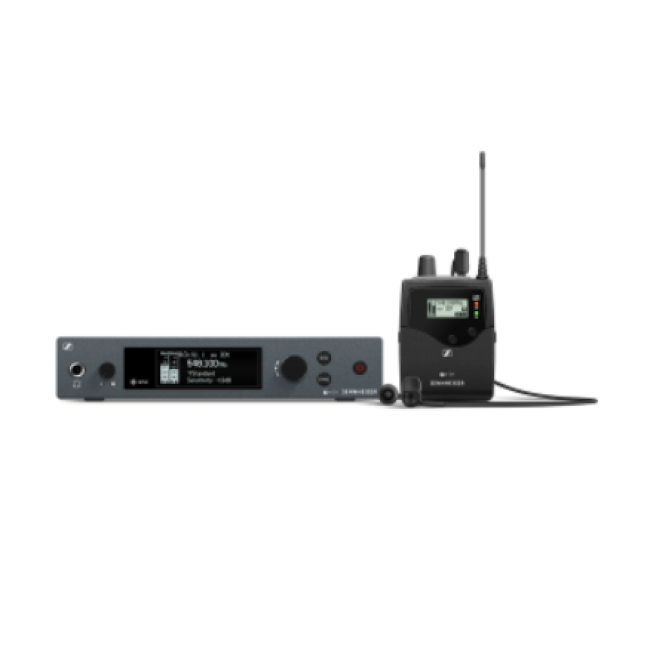

SENNHEISER EW IEM G4-B WIRELESS MONITOR SYSTEM
AED 4,337.55
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
Hear anywhere on stage and make your gig an extraordinary experience – not just for your audience, but also for you. Engineered for pro live sound.
This item cannot be returned or exchanged
Cash on Delivery available
Description for SENNHEISER EW IEM G4-B WIRELESS MONITOR SYSTEM
Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!
Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.
Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage
Half-rack stereo transmitter in a full-metal housing with OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations
Specs
المواصفات
SR IEM G4
-
- Frequency range
-
-
- Dimensions
-
Approx. 202 x 212 x 43 mm
-
- Compander
-
-
- THD, total harmonic distortion
-
-
- Weight
-
-
- Audio input
-
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
-
- Audio output
-
¼" (6.3 mm) stereo jack socket, balanced
-
- Signal-to-noise ratio
-
-
- RF output power
-
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
-
- Switching bandwidth
-
-
- Peak deviation
-
-
- Nominal deviation
-
-
- Modulation
-
Wideband FM stereo (MPX pilot tone)
-
- Power supply
-
-
- Current consumption
-
-
- Max. Input voltage
-
-
- Transmission frequency
-
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
-
- AF frequency response
-
-
- Temperature Range
-
-
- Frequency stability
-
-
- Antenna Output
-
-
- Frequency range
-
-
- Frequency range
-
Sr iem g4:
D: 780 - 822 MHz
EK IEM G4
-
- Dimensions
-
-
- Compander
-
-
- THD, total harmonic distortion
-
-
- Weight
-
(incl. batteries) approx. 125 g
-
- Signal-to-noise ratio
-
-
- Switching bandwidth
-
-
- Peak deviation
-
-
- Nominal deviation
-
-
- Operating time
-
approx. 4 to 6 hours (depending on volume level)
-
- Modulation
-
-
- Power supply
-
2 AA batteries, 1.5 V or BA 2015 accupack
-
- Current consumption
-
at nominal voltage: approx. 140 mA
with transmitter switched off: ≤ 25 µA
-
- Adjacent channel rejection
-
-
- Audio-Output-Power
-
-
- Intermodulation attenuation
-
-
- Limiter
-
–18 dB to –6 dB, adjustable in steps of 6 dB, can be switched off
-
- Powering
-
3 V battery / 2.4 V rechargeable battery
-
- Receiving frequency
-
Max. 1680 receiving frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
-
- RF sensitivity
-
< 4 μV, typ. 1.6 μV for 52 dBA rms S/N
-
- Squelch
-
5 to 25 dBµV, adjustable in steps of 2 dB
-
- Bass Boost
-
-
- Temperature Range
-
-
- Receiver Principle
-
-
- Blocking
-
What's in the Box
- SR IEM G4 stereo transmitter
- EK IEM G4 stereo receiver
- IE 4 earphones
- 2 AA batteries
- rod antenna
- GA 3 rackmount set
- quick guide
- safety guide
- manufacturer declaration sheet
- power supply
