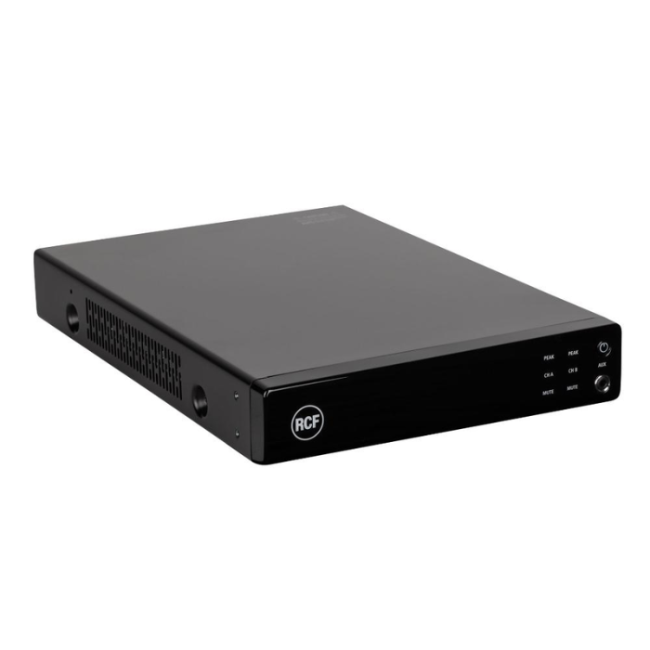

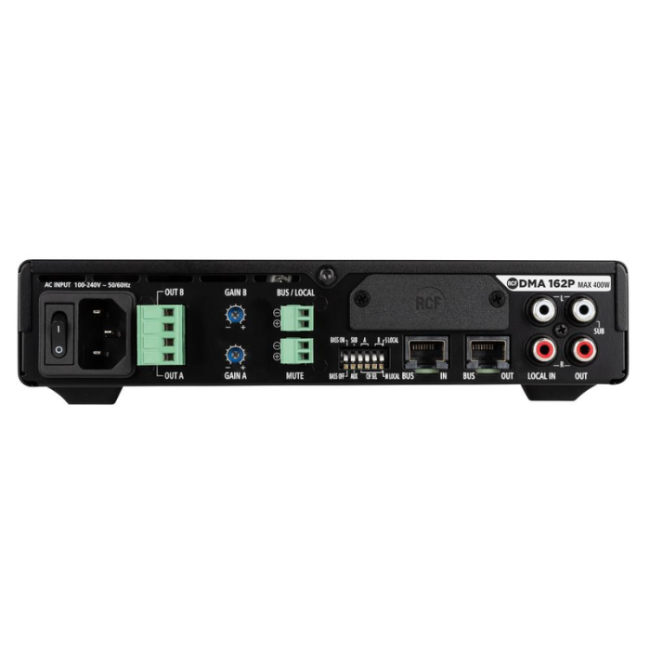

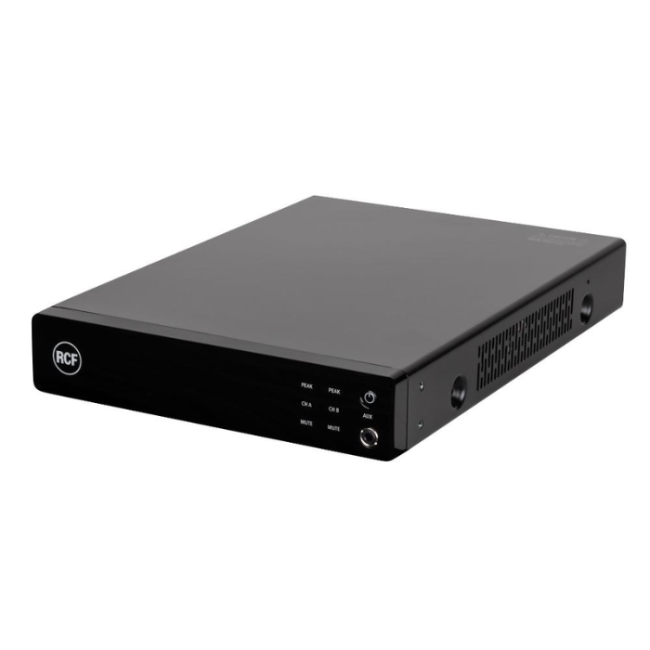

RCF DMA 162P 320W Two-Channel Power Amplifier EU – Black

only  5 item(s) remaining
SAR 3,003.69
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries

100%
- +

  •  Condition: New
The RCF DMA 162P is a powerful two-channel Class-D power amplifier delivering 320 W total output with advanced DSP, RCF speaker presets, FIR filters, and scalable multi-room architecture. Designed for both desktop and rack installations in commercial and
Model :12100028
SKU :

No Return This item cannot be returned or exchanged
Cash on Delivery Cash on Delivery available

Description for RCF DMA 162P 320W Two-Channel Power Amplifier EU – Black

DMA 162P is a two channels Class-D power amplifier, equipped with a powerful DSP platform. Its natural use is in combination with a DMA unit, in order to increase installed power and implement multi-room architectures for Commercial Audio systems. However, its adaptability, control tools, and available inputs allow using it as a stand-alone amplifier: in fact, adding the optional RDNet board the user can manage all DSP functions and choose the specific RCF speakers preset. Thanks to the extremely compact size, accurate design, and robustness, it is ideal for a wide range of business music applications.


  • Features
    • 2 x 160 W Class-D power amplifier
    • 20 ÷ 20000 Hz frequency range
    • Full on-board processing
    • RCF speakers’ presets
    • Proprietary bass enhancer algorithm
    • FiRPHASE linear phase filters
    • Flexible and scalable multi-room architecture
    • Suitable for desktop or rack installation
    • RDNet ready for networked management
SpecificationDetails
Product TypeTwo-Channel Power Amplifier
Part Number12100028 (EU)
Amplifier ClassClass-D
Output Power (RMS all channels driven)2 x 160 W @ 4 Ω, 2 x 160 W @ 8 Ω
Bridged Output Power1 x 320 W @ 4 Ω, 1 x 320 W @ 8 Ω
Output Power @ 70 V1 x 320 W @ 70 V
Frequency Response (-3 dB)20 Hz – 20 000 Hz
SNR (Analog inputs)>93 dB
Distortion (THD+N) @ 1 kHz<0.01%
Total Number of Inputs6
Balanced Inputs4
Unbalanced Inputs2
Mono Inputs4
Stereo Inputs2
Line Inputs6
General Purpose Inputs (GPI)2
Signal Output Number1
DSPYes
EQ FiltersYes
FIR FiltersYes
CompressorsYes
Tone ControlsYes
High-Pass Filter80 Hz – 200 Hz
RCF Speaker PresetsYes
ProtectionsForced cooling, short circuit, thermal, DC, fuses, VHF
Operating Voltage90-240 V~ 50/60 Hz
Max Power Consumption400 W
Safety AgencyCE compliant, UL 62368-1
Cabinet MaterialMetal
ColorBlack
Rack Mounting1/2 19″, 1U (optional rack accessory required)
Height44 mm / 1.73 inches
Width213 mm / 8.39 inches
Depth304 mm / 11.97 inches
Weight1.65 kg / 3.64 lbs
Package Height106 mm / 4.17 inches
Package Width360 mm / 14.17 inches
Package Depth381 mm / 15 inches
Package Weight2.65 kg / 5.84 lbs
