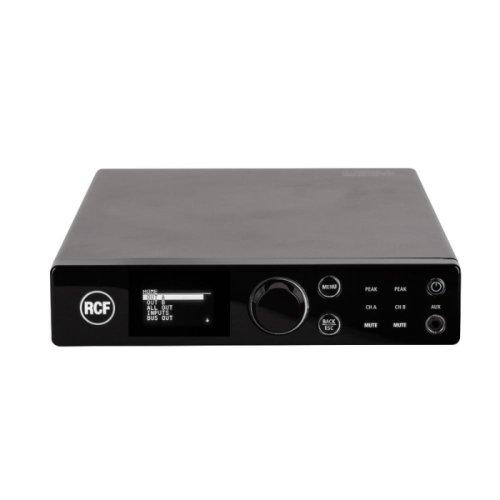

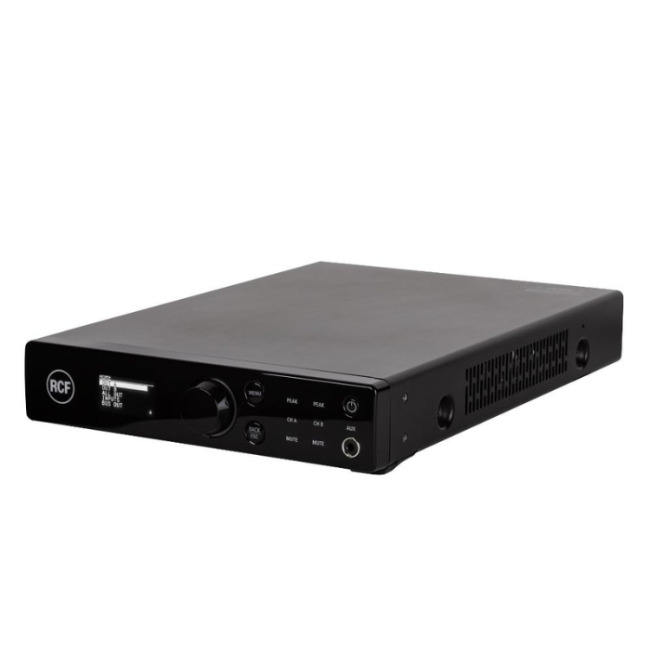

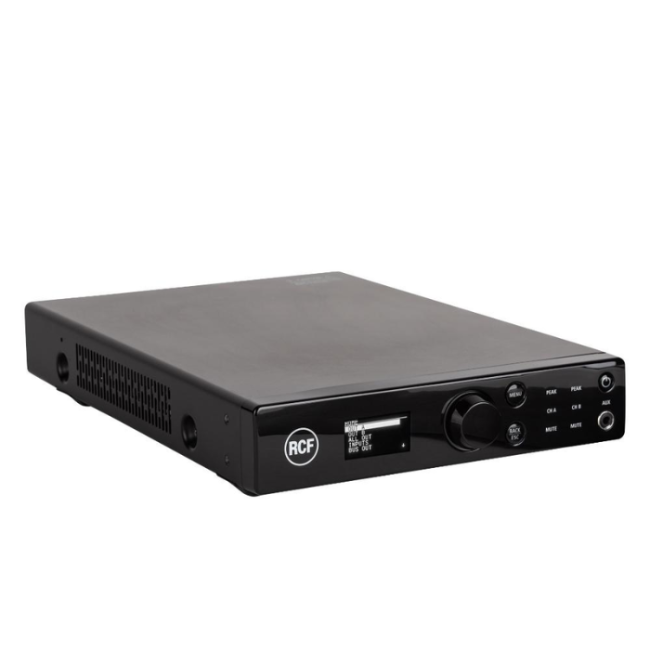

RCF DMA 162 320W Two-Channel Matrix Amplifier EU – Black
only 5 item(s) remaining
SAR 3,949.33
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
The RCF DMA 162 is a versatile two-channel class-D matrix amplifier (EU version) delivering 320 W total power with advanced DSP processing, speaker presets, bass enhancement, and flexible multi-room architecture. Suitable for both desktop and rack install
Model :12100027
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for RCF DMA 162 320W Two-Channel Matrix Amplifier EU – Black
DMA 162 is a two-channel class-D matrix amplifiers equipped with a powerful DSP platform, allowing managing inputs and outputs in terms of routing and equalization (a complete set of processing functions is available, including PEQ, FIR filters, bass enhancement, limiters, compressors and environmental equalization); moreover, dedicated presets for RCF speakers have been implemented to optimize their acoustic performance. It can distribute 4 audio channels to DMA 162P units through an analogue audio BUS, combining a flexible and scalable multi-room architecture with an easy connection and installation. Its configuration is simple and user friendly and can be carried out through either its front panel controls (with OLED display) or RDNet. Thanks to its installation flexibility, accurate design, and robustness, it is ideal for a wide range of business music and installed sound applications.
Features
- 2 x 160 W Class-D power amplifier
- 20 ÷ 20000 Hz frequency range
- Full on-board processing
- RCF speakers’ presets
- Proprietary bass enhancer algorithm
- FiRPHASE linear phase filters
- Flexible and scalable multi-room architecture
- Suitable for desktop or rack installation
- RDNet ready for networked management
- Remote controls and paging console accessories
| Specification | Details |
|---|---|
| Product Type | Two-Channel Matrix Amplifier |
| Part Number | 12100027 (EU) |
| Amplifier Class | Class-D |
| Output Power (RMS) | 2 x 160 W @ 4 Ω / 2 x 160 W @ 8 Ω |
| Bridged Output Power | 1 x 320 W @ 4 Ω / 1 x 320 W @ 8 Ω |
| Output Power @ 70 V | 1 x 320 W |
| Frequency Response (-3 dB) | 20 Hz – 20 kHz |
| Distortion (THD+N) | < 0.01% @ 1 kHz |

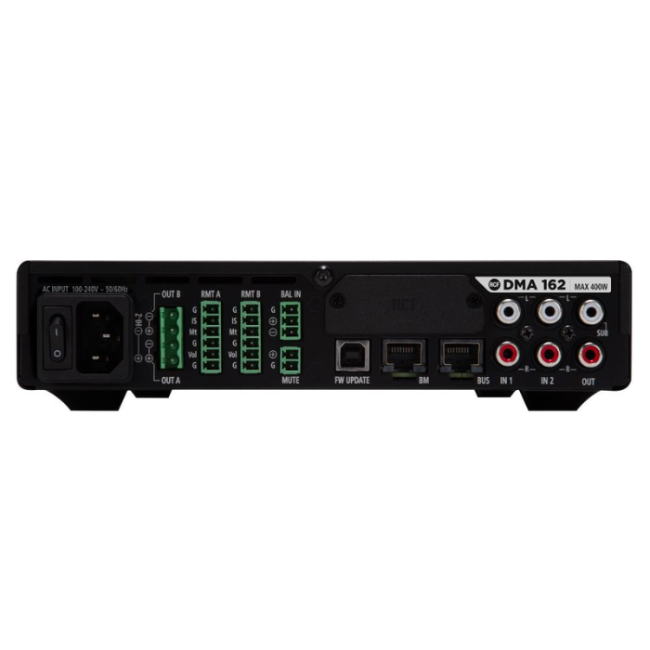

| Inputs | 2 x Line Stereo (RCA), 1 x Mic/Line (balanced), 1 x Paging (RJ45) |
| Outputs (Signal) | 1 x Stereo Line/Sub (RCA), 1 x 4-Channel Audio BUS (RJ45) |
| Total Number of Inputs | 5 |
| Processing | Built-in DSP with EQ, FIR, compression, tone controls |
| Preset Filters | RCF Speaker Presets, Bass Enhancer |
| High-Pass Filter | 80 Hz – 200 Hz |
| Controls | Remote mute contact, 2 wall mount remote controls, USB control/firmware update |
| Cooling | Forced air |
| Protections | Short circuit, thermal, DC, VHF, fuses |
| Operating Voltage | 90-240 V~ 50/60 Hz |
| Max Power Consumption | 400 W |
| Compliance | CE compliant, UL 62368-1 |
| Cabinet Material | Metal |
| Color | Black |
| Rack Mounting | 1/2 19″, 1U (optional accessory required) |
| Height | 44 mm / 1.73 inches |
| Width | 213 mm / 8.39 inches |
| Depth | 314 mm / 12.36 inches |
| Weight | 1.7 kg / 3.75 lbs |
| Package Height | 106 mm / 4.17 inches |
| Package Width | 360 mm / 14.17 inches |
| Package Depth | 381 mm / 15 inches |
| Package Weight | 2.7 kg / 5.95 lbs |
