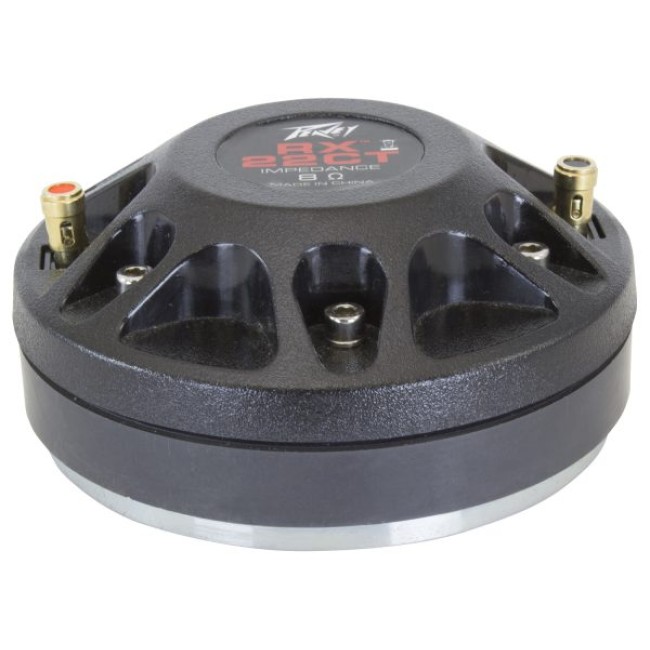

Peavey RXâ„¢22 CT Driver Replacement High Frequency Driver Unit
SAR 489.30
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
Out of stock, but you can still place a backorder
Backorder
- Condition: New
Peavey RXâ„¢22 CT Driver Replacement High Frequency Driver Unit.
Power Capacity 1200 Hz to 20,000 Hz: 160 W peak, 80 W program, 40 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
Model :RX 22CT HF DRIVER
SKU :03616190
This item cannot be returned or exchanged
Cash on Delivery available Description for Peavey RXâ„¢22 CT Driver Replacement High Frequency Driver Unit
Features
- Throat Parameter: .960" / 24.38 mm
- Nominal Impedance: 8 Ohms
- Minimum Impedance: 7.7 Ohms
- DC Resistance: 7.0 Ohms
- Power Capacity 1200 Hz to 20,000 Hz: 160 W peak, 80 W program, 40 W continuous using pink noise band limited from 1000 Hz to 20 kHz (AES 2-1984)
- Sensitivity: 107 dB / 1W 1m On-axis on 90º H x 40º V horn
- Nominal Efficiency: 30%
- Frequency Response: 650 Hz to 20,000 Hz
- Recommended Crossover: 1200 Hz at 12 dB / Octave
- Lowest Recommended Crossover: 1000 Hz at 12 dB / Octave
- Diaphragm: Commercially pure titanium
- Voice Coil Diameter: 2.0" / 50.8 mm
- Voice Coil Material: Copper Clad Aluminum Wire with a High temp Kapton bobbin
- Voice Coil Cooling: Ferrofluid
- Flux Density: 18,000 gauss (1.8T)
- Dimensions: 5.02" (128 mm) diameter x 3.13" (80 mm) depth
- Horn Coupling Diameter: .960 (24.4 mm)
- Horn Coupling Threads: Standard 1 3/8" - 18"
- Packed Weight: 6.39 lb (2.9 kg)
- Packed Length: 6.125" (15.56 cm)
- Packed Width: 5.75" (14.61 cm)
- Packed Height: 3.625" (9.21 cm)
