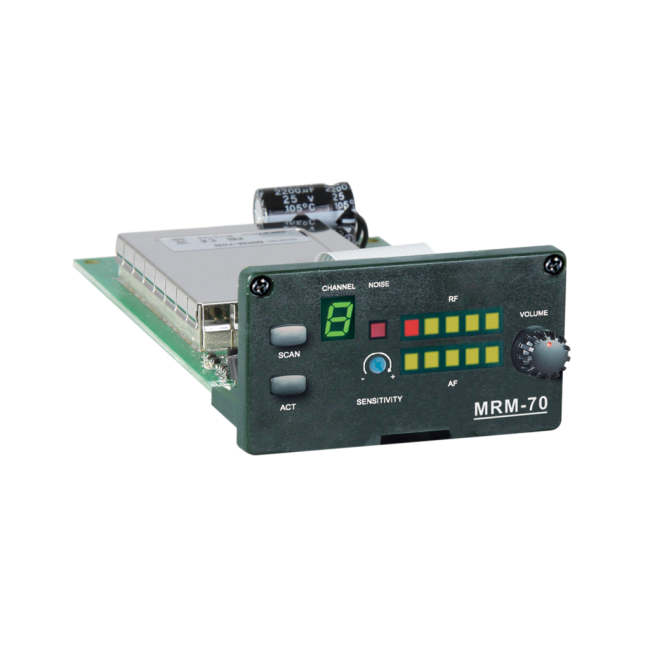

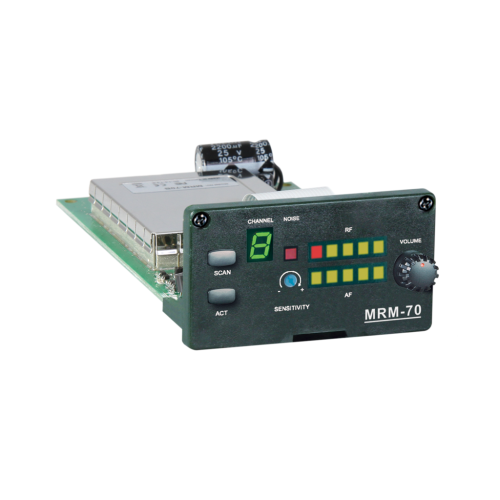

Mipro MRM-70 UHF Single-Channel Diversity Receiver Module
AED 266.70
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
Model :MRM70
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for Mipro MRM-70 UHF Single-Channel Diversity Receiver Module
The easy to install and use plug-and-play MRM-series receiver modules are designed mainly to fit MIPRO wireless portable PA systems for wireless microphone applications. Other unique installations can be considered for PA amplifiers, mixers, signal processors, and active speakers.
|
Specs المواصفات
| Frequency Range | UHF 480 ~ 934 MHz (country dependent) Egypt: 5D (597-608 MHz) |
||
| Bandwidth | 24 MHz | ||
| Preset channels | 16 | ||
| Channel Set-up | Scan & ACT Sync | ||
| Display Status | Channel, RF & audio meters and interference warning indicator | ||
| Receiving Mode | CPU-controlled diversity receiving | ||
| Sensitivity | 10 dB μ V at S/N > 80 dB | ||
| S/N Ratio | > 100 dBA | ||
| T.H.D. | < 0.5% @ 1 kHz (Dev.=32 kHz) | ||
| Frequency Response | 60 Hz ~ 15 kHz (Overall system) | ||
| Squelch Control | "PiloTone & NoiseLock" dual-squelch circuits | ||
| Audio Output | 610 mV rms | ||
| Power Supply | 12 ~ 15 V DC | ||
| Dimensions (W × H × D) | 75 × 35 × 141 mm | ||
| Weight | Approx. 126 g | ||
| Note | Refer to actual product in the event of product description discrepancy. |
