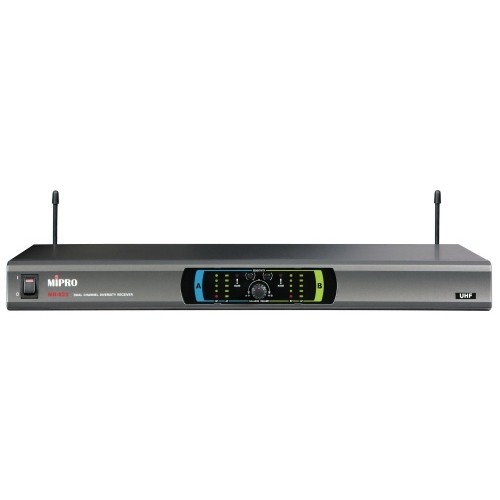

Mipro MR-823 Dual-Channel Diversity Receiver

Name: Mipro MR-823 Dual-Channel Diversity Receiver
Brand: MIPRO
Price: 315 AED
Availability: InStock

AED 315.00

Rate inclusive of VAT

Sold By : ksam4music

- +

Dual-Channel Diversity Receiver

Model :MR823/MH801A*2

SKU :

This item cannot be returned or exchanged

Cash on Delivery available

Description for Mipro MR-823 Dual-Channel Diversity Receiver

CPU diversity technology ensures stable signal quality and avoids signal drop-out.
PLL synthesized fixed frequency circuit for stability and effortless frequency setup.
RF and audio level LED indicators.
Adjustable ‘SQ’ for increased or decreased sensitivity level for increased reception range or interference management.
Output level is accurately pre-adjusted to equal the microphone capsule sensitivity and ensures optimal performance.

	Chassis	EIA Standard 19 " 1U metal chassis
	Frequency Range	UHF 480 ~ 934 MHz
	Oscillation Mode	PLL Synthesized fixed-frequency
	Receiving Mode	Diversity receiving
	Deviation	< ± 40 kHz
	S/N Ratio	> 106 dB(A)
	T.H.D.	< 0.5% @ 1 kHz
	Frequency Response	50 Hz ~ 18 kHz
	Max. Output Level	3-Level Switch: +10 dBV / 0 dBV / -6 dBV
	Sensitivity	10 dBμV at S/N > 80 dB
	Squelch	“PiloTone & NoiseLock” dual-squelch circuit
	Power Supply	12 ~ 15V DC, 1A
	Dimensions (W × H × D)	420 × 44 × 204 mm / 17 × 1.7 × 8.0 "
	Net Weight	Approx. 1.7 kg / 3.7 lbs
	Note	Refer to actual product in the event of product discrepancy. Frequency range and maximum deviation comply with the regulations of different countries.
