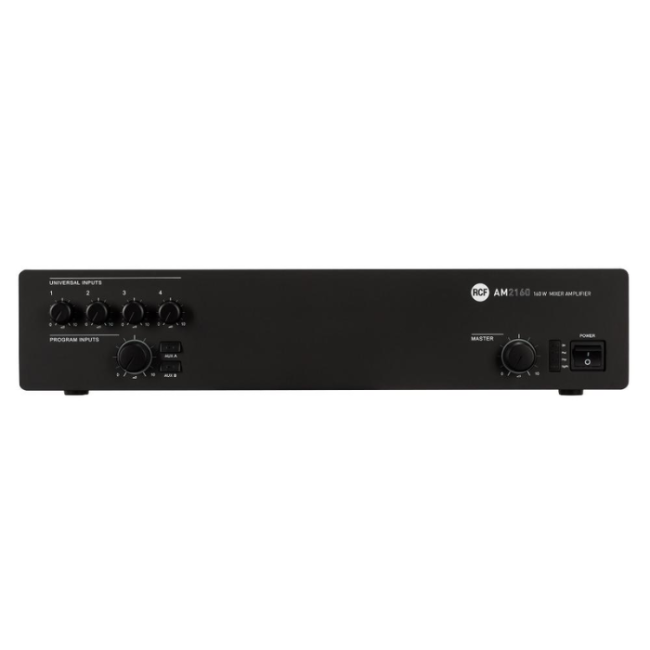

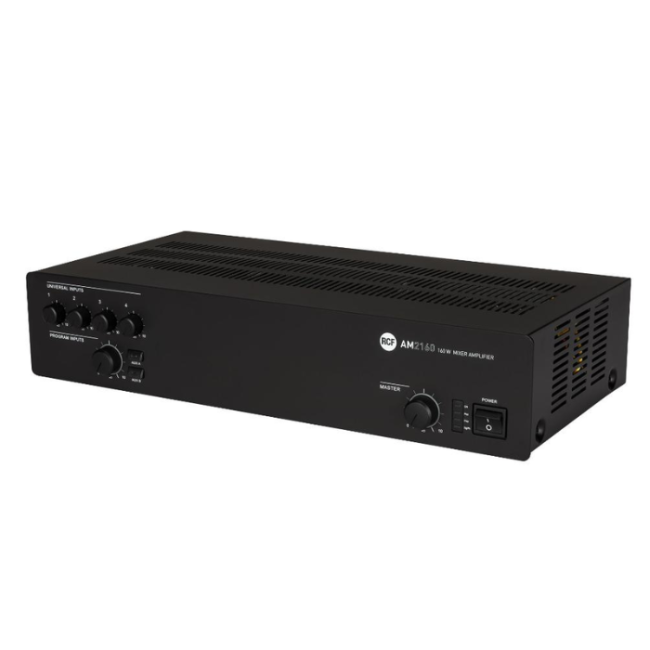

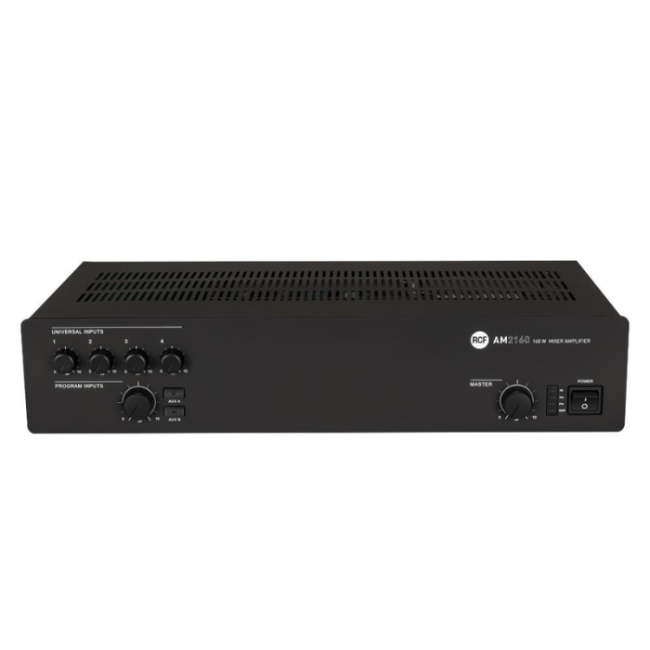

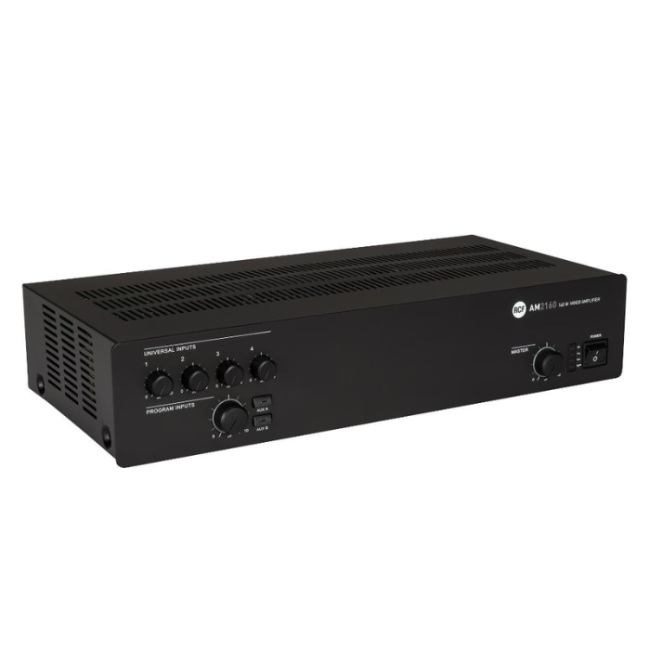

RCF AM 2160 Mixer Amplifier 160 W 220–240 V – Black
only 5 item(s) remaining
SAR 3,448.74
Rate inclusive of VAT
Sold By : ksam4music
Fulfilled by Thomsun Industries
-
+
- Condition: New
The RCF AM 2160 Mixer Amplifier delivers 160 W RMS for 70V/100V or 4Ω systems with 4 mic/line inputs (phantom, VOX, priority), 2 aux inputs, tone controls, 150 Hz HPF, paging, GPI, music-on-hold, and convection-cooled Class D design in a 2U rack.
Model :12135058
SKU :
This item cannot be returned or exchanged
Cash on Delivery available Description for RCF AM 2160 Mixer Amplifier 160 W 220–240 V – Black
AM 2160 is a mixer-amplifiers with 4 mic-line audio inputs on removable connectors (the first input also has an XLR socket) and 2 aux inputs for music sources (e.g. CD players, tuners, etc.). 160 W nominal output power available either for low impedance loudspeakers or 100 – 70 V constant voltage line
Features
- Full digital technology Mixer Amplifier 160 W RMS
- 100 V - 70 V and 4 Ohm outputs
- 4 universal inputs with phantom facility on screw terminal connections
- Presence Control and per-channel High-Pass filters
- XLR connector on input 1
- RJ45 connectors on input 2 and 3 for connection to BM3001 microphone
- Configurable Priority settings, VOX facility on input 1
- Selectable aux inputs with two keys on the front panel for music source
- Aux inputs with volume and tone controls
- Music On Hold and PRE outputs
| Category | Specification | Details |
|---|---|---|
| Amplifier Specifications | Amplifier Class | D |
| Output Power | 1 × 160 W @ 4Ω | |
| Frequency Response (-3 dB) | 50 Hz – 14 kHz | |
| Distortion (THD+N) @ 1 kHz | <0.3% | |
| Input Section | Total Number of Inputs | 8 |
| Balanced | 7 | |
| Unbalanced | 2 | |
| Mono | 7 | |
| Stereo | 2 | |
| Line Inputs | 2 | |
| Line Connectors | RCA | |
| Mic+Line Inputs | 4 | |
| Mic+Line Connectors | Euroblock, XLR | |
| Mic+Line Phantom | 32 V DC | |
| VOX | Yes | |
| Paging Inputs | 2 | |
| Paging Connectors | RJ45 | |
| Paging Command | Contact | |
| General Purpose Inputs (GPI) | 2 | |
| Output Section | Signal Output Number | 2 |
| Signal Output Connectors | RCA | |
| Power Output Connectors | Euroblock | |
| Processing | Tone Controls | Yes |
| High-Pass Filter | 150 Hz | |
| Configuration & Control | Configuration | DIP switch, Front panel |
| Priority | Yes | |
| Music on Hold | Yes | |
| Chime Tone | Yes | |
| Protections | Cooling | Convection |
| Short Circuit | Yes | |
| Thermal | Yes | |
| DC | Yes | |
| Fuses | Yes | |
| Power Requirement | Operating Voltage | 220-240/115 V~ 50/60 Hz |
| Voltage Selection | Internal | |
| Power Consumption (MAX) | 350 W | |
| Standard Compliance | Safety Agency | CE compliant |
| Physical Specifications | Cabinet Material | Metal |
| Color | Black | |
| Rack Mounting | 19", 2U | |
| Size / Weight | Height | 88 mm / 3.46 in |
| Width | 442 mm / 17.4 in | |
| Depth | 230 mm / 9.06 in | |
| Weight | 5.4 kg / 11.9 lbs | |
| Shipping Information | Package Height | 200 mm / 7.87 in |
| Package Width | 500 mm / 19.69 in | |
| Package Depth | 330 mm / 12.99 in | |
| Package Weight | 6.45 kg / 14.22 lbs |
