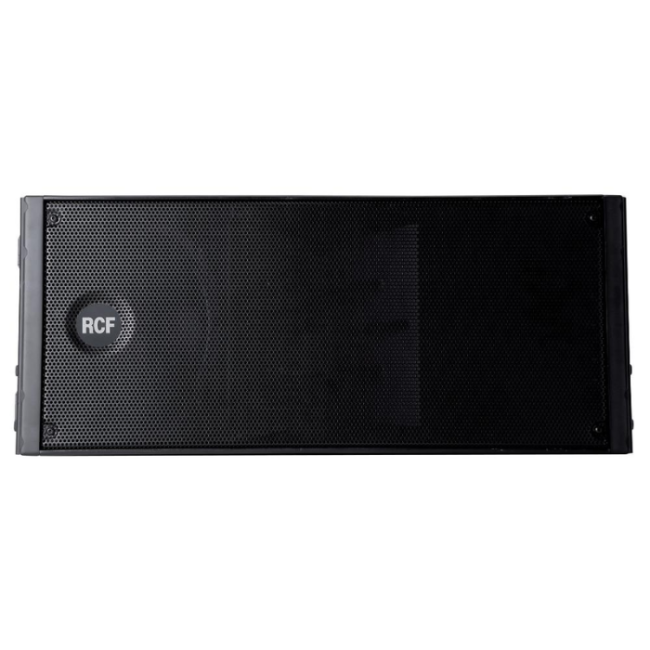

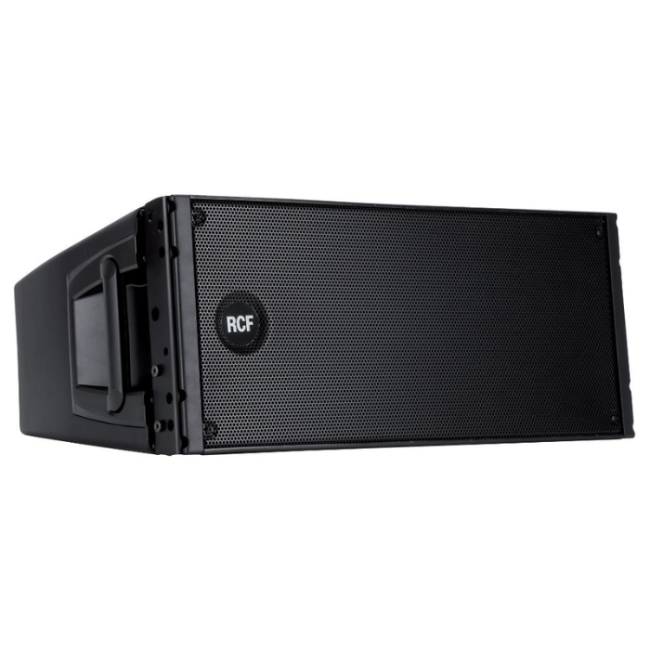

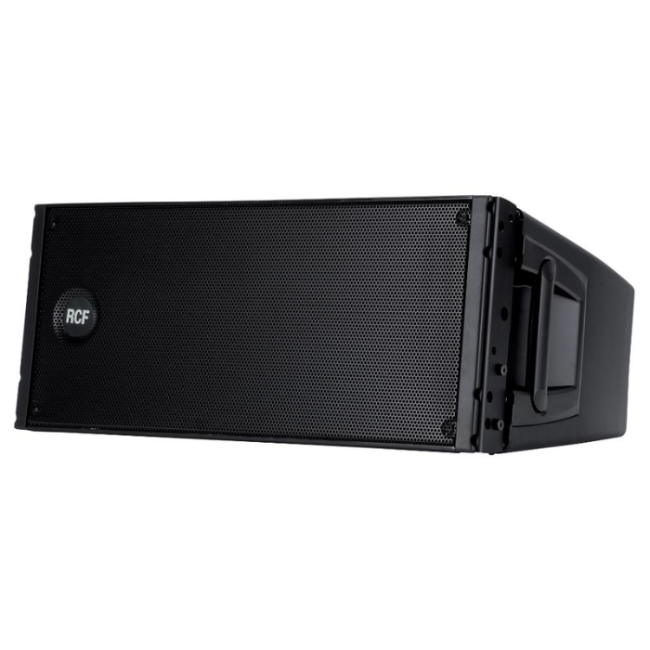

RCF HDL 20‑A Active Line Array Module 220–240 V – Black

Description for RCF HDL 20‑A Active Line Array Module 220–240 V – Black

The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system
Features

1. 1400 Watt Peak power - 700 Watt RMS
2. 135 dB max SPL
3. 55 Hz 20 kHz frequency response
4. 2 x 10" Woofers
5. 1 x 3" Compression Driver
6. DSP controlled Input section with selectable presets

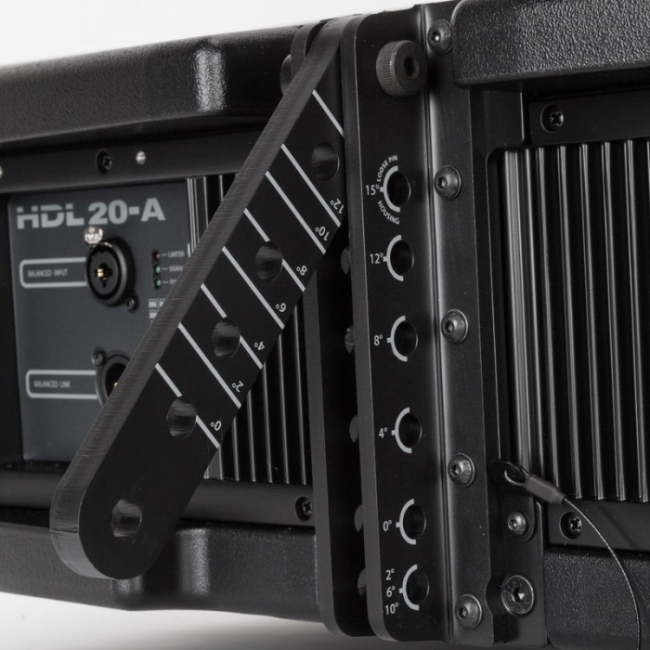

7. Tour grade safe and solid variable mechanics
8. Composite PP enclosure structurally wooden reinforced



Category	Specification	Details
Acoustical Specifications	Frequency Response	55 Hz – 20 kHz
	Max SPL @ 1 m	135 dB
	Horizontal Coverage Angle	100°
	Vertical Coverage Angle	15°
Transducers	Compression Driver	1 × 2.0'', 3.0'' v.c
	Woofer	2 × 10'', 2.5'' v.c

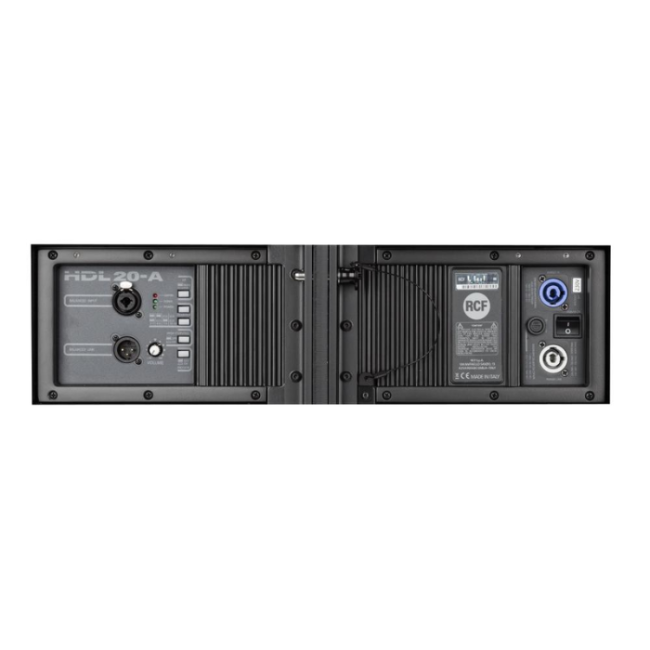

Input / Output Section	Input Signal	Balanced / Unbalanced
	Input Connectors	XLR
	Output Connectors	XLR
	Input Sensitivity	-2 dBu / +4 dBu
Processor Section	Crossover Frequency	800 Hz
	Protections	Thermal, RMS
	Limiter	Soft Limiter
	Controls	Cluster, HF, High curving, Indoor
Power Section	Total Power	1400 W Peak, 700 W RMS
	High‑Frequency Power	400 W Peak, 200 W RMS
	Low‑Frequency Power	1000 W Peak, 500 W RMS
	Cooling	Convection
Connections	Power Connections	Powercon IN/OUT
Standard Compliance	Safety Agency	CE Compliant
Physical Specifications	Cabinet Material	PP Composite
	Hardware	Rigging flyware
	Handles	2 side, 2 back
	Grille	Steel
	Color	Black
Size / Weight	Height	294 mm / 11.57 in
	Width	705 mm / 27.76 in
	Depth	445 mm / 17.52 in
	Weight	30.2 kg / 66.58 lbs
Shipping Information	Package Height	375 mm / 14.76 in
	Package Width	800 mm / 31.5 in
	Package Depth	500 mm / 19.69 in
	Package Weight	33.2 kg / 73.19 lbs
