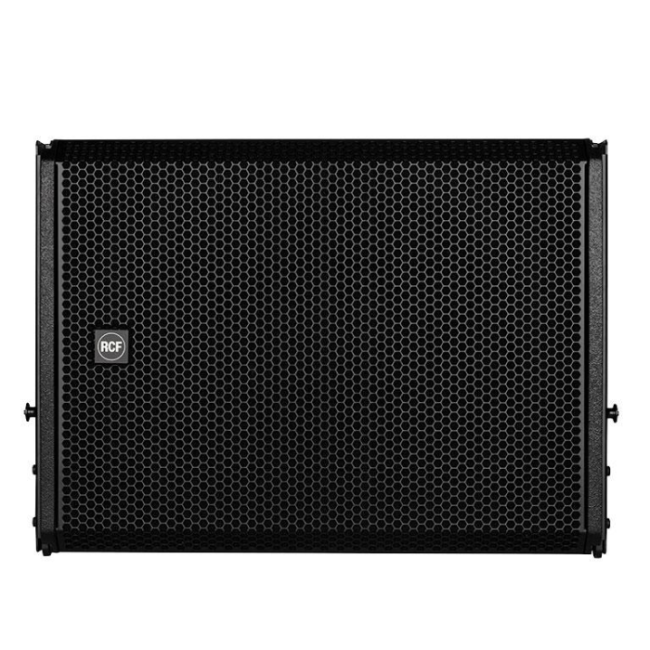

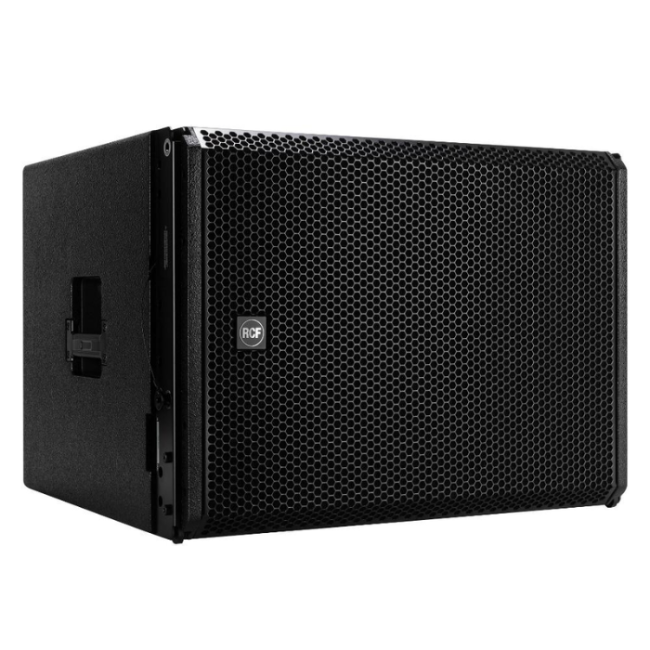

RCF HDL 38‑AS Active Flyable Subwoofer 90–240 V EU – Black

Description for RCF HDL 38‑AS Active Flyable Subwoofer 90–240 V EU – Black

The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system. It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System
Features

2. 136 dB Max SPL
3. 3200W peak class-D Amplifier
4. 30-140 Hz frequency response
5. RDNet Networked Management

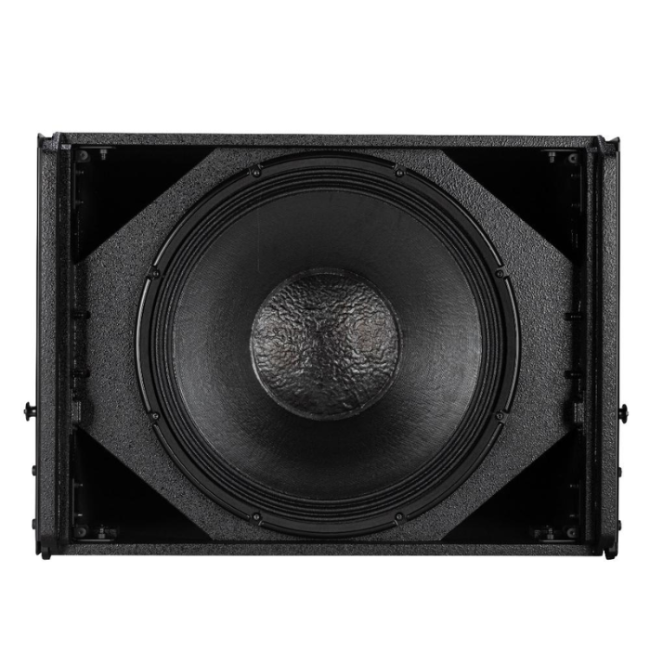

6. 1x18” Neodymium Woofer, 4.0” voice coil



Category	Specification	Details
Acoustical Specifications	Frequency Response	30 Hz – 140 Hz
	Max SPL @ 1 m	136 dB
Transducers	Woofer	1 × 18'' neodymium, 4.0'' v.c
Input / Output Section	Input Signal	Balanced / Unbalanced
	Input Connectors	XLR, RDNet Ethercon
	Output Connectors	XLR, RDNet Ethercon
	Input Sensitivity	+4 dBu
Processor Section	Protections	Thermal, RMS
	Limiter	Soft Limiter
	Controls	Volume, Preset selection
	RDNet	Onboard
Power Section	Total Power	3200 W Peak, 1600 W RMS
	Low‑Frequency Power	3200 W Peak, 1600 W RMS
	Cooling	Convection
Connections	Power Connections	Powercon IN/OUT
Standard Compliance	Safety Agency	CE Compliant
Physical Specifications	Cabinet Material	Baltic Birch Plywood
	Hardware	Array fittings, 1 × M20
	Handles	2 side
	Pole Mount / Cap	M20 Thread
	Grille	Steel
	Color	Black
Size / Weight	Height	502 mm / 19.76 in
	Width	700 mm / 27.56 in
	Depth	621 mm / 24.45 in
	Weight	48.7 kg / 107.36 lbs
Shipping Information	Package Height	550 mm / 21.65 in
	Package Width	670 mm / 26.38 in
	Package Depth	750 mm / 29.53 in
	Package Weight	51 kg / 112.44 lbs
