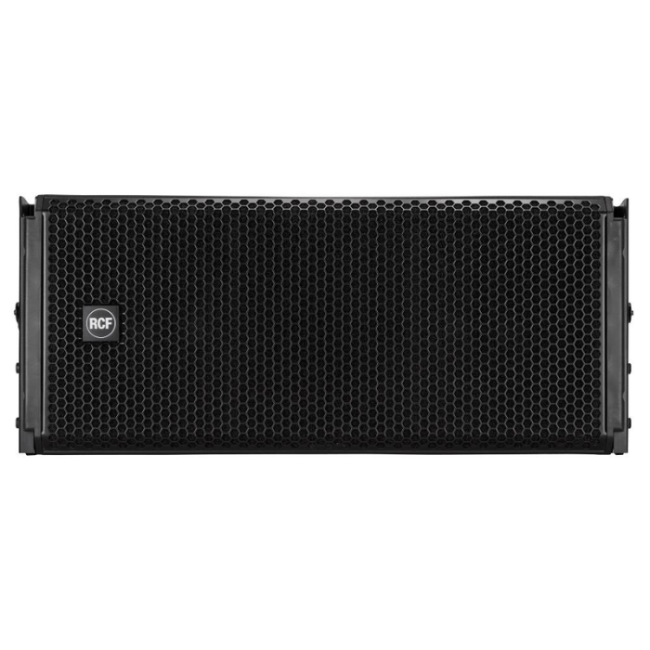

RCF HDL 30‑A Active Two‑Way Line Array Module 100–240 V – Black

Description for RCF HDL 30‑A Active Two‑Way Line Array Module 100–240 V – Black

The RCF HDL30-A is a compact bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver. The time coherent waveguide is the result of in-depth research and design. HDL 30-A is the first line array in a composite cabinet with zero-degree phase and ultra-linear amplitude response. The built-in 2200 watt class-D amplifier delivers excellent playback clarity and up to 137 decibels SPL max. The RCF HDL30 -A features state of the art RCF transducers with neodymium magnets. Considering its acoustical power, it has a remarkably low weight for easy handling and flying. The HDL 38-AS is the ideal flyable bass complement for the HDL 30-A array system
Features

2. 2200W Two Way Amplifier
3. 137 dB Max SPL
4. 48 kHz, 32 bit DSP processing
5. 1.4" Titanium Compression Driver, 4.0" voice coil
6. 2 x 10" Neodymium Woofers, 2.5" voice coil
7. Exclusive FiRPHASE technology on-board
8. RDNet Control and Management
9. 680 Hz Crossover Point



Category	Specification	Details
Acoustical Specifications	Frequency Response	50 Hz – 20 kHz
	Max SPL @ 1 m	137 dB
	Horizontal Coverage Angle	100°
	Vertical Coverage Angle	15°
Transducers	Compression Driver	1 × 1.4'' neodymium (titanium), 4.0'' v.c
	Woofer	2 × 10'' neodymium, 2.5'' v.c
Input / Output Section	Input Signal	Balanced / Unbalanced
	Input Connectors	XLR, RDNet Ethercon
	Output Connectors	XLR, RDNet Ethercon
	Input Sensitivity	+4 dBu
Processor Section	Crossover Frequency	680 Hz
	Protections	Thermal, RMS
	Limiter	Soft Limiter
	Controls	Preset, RDNet bypass
	RDNet	Onboard
Power Section	Total Power	2200 W Peak, 1100 W RMS
	High‑Frequency Power	600 W Peak, 300 W RMS
	Low‑Frequency Power	1600 W Peak, 800 W RMS
	Cooling	Forced
Connections	Power Connections	Powercon IN/OUT
Standard Compliance	Safety Agency	CE Compliant
Physical Specifications	Cabinet Material	PP Composite
	Hardware	Array fittings

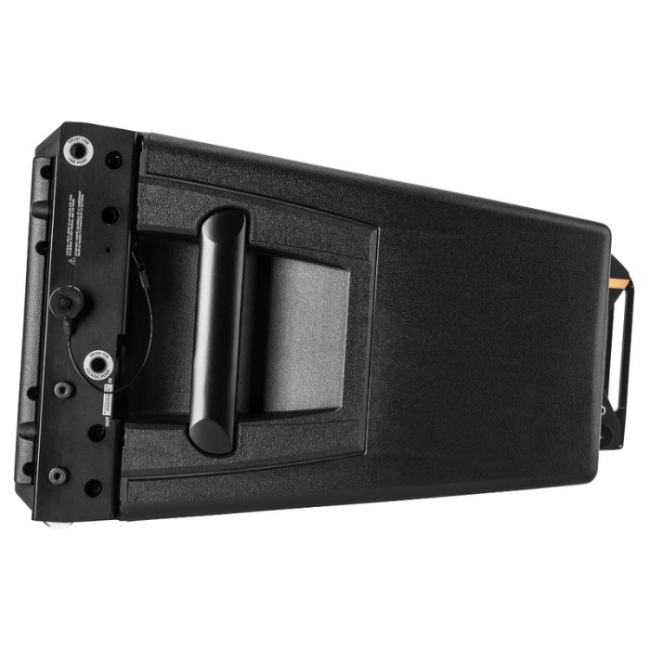

	Handles	2 side
	Grille	Steel
	Color	Black
Size / Weight	Height	293 mm / 11.54 in
	Width	705 mm / 27.76 in
	Depth	502 mm / 19.76 in
	Weight	25 kg / 55.12 lbs
Shipping Information	Package Height	365 mm / 14.37 in
	Package Width	800 mm / 31.5 in
	Package Depth	550 mm / 21.65 in
	Package Weight	28.2 kg / 62.17 lbs
